ABC Aluminum Aerial Bundle Cables DES/LVC-IEC 60502

ABC Cable Aluminum Aerial Bundle Cables DES/LVC-IEC 60502

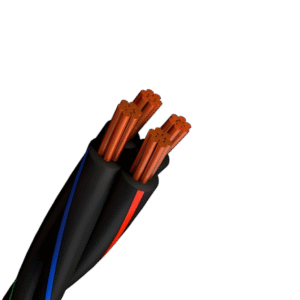

Name : ABC Cable Aluminum Aerial Bundle Cables DES/LVC-IEC 60502

Conductor : H68 Aluminium Conductor

Insulation : XLPE

Voltage : 0.6/1kV

Number of cores: 2-5 cores

Package : Export wooden drum & iron wooden drum or as customer require

Application

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.

Strandard

DES/LVC/ABC Specification; IEC 60502

CONSTRUCTION :

Construction

CONDUCTOR	H68 aluminium conductor and compacted circular stranded (RM).
INSULATION	XLPE
ASSEMBY	The cores shall be laid up with a left-hand lay.

1. CONCUTOR 2. INSULATION

TECHNICAL DATA :

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	15 × Ø of cable

Technical Parameter

Number of Cores x Nominal Cross Section	Min. Breaking Load of Conductor Strand	Current Rating in the Air	Outer Diameter	Total Weight
mm^2	kN	A	mm	kg/km
4×25 RM	3.5	84	21.5	420
4×35 RM	4.9	104	23.9	550
4×120+1×25 RM	16.8	246	43.8	1800
4×185+1×25 RM	25.9	332	50.7	2700
