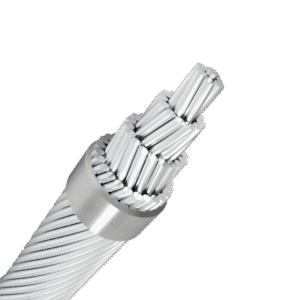

123.3 MCM Azusa AAAC All Aluminum Alloy Conductor

123.3 MCM Azusa AAAC Cable All Aluminum Alloy Conductor is a bare conductor used for overhead transmission as well as for primary and secondary distribution.123.3 MCM Azusa AAAC Cable are used as a bare conductor cable on aerial circuits that require a larger mechanical resistance than the AAC and a better corrosion resistance than the ACSR. The sag characteristics and the strength-to-weight ratio of the AAAC conductor cable is better than both AAC and ACSR. Capable of handling extremely high voltages, this overhead transmission wire is also preferred in scenarios when heavy ampacity is needed.  This cable is most ideal for high voltage use in coastal areas, or areas with high winds or frequent storms.



Size: 123.3

Strands: 7

Approx. EC Cond. with Equivalent Resistance: 1/0

Diameter Inches: Indiv. Wire O.D: 0.1327

Diameter Inches: Comp. Cable: 0.3980

Cross Sectional Area (sq. inches): 0.0968

New Weight lb/1000FT: 115.7

Rated Strength (lbs.): 4,270

Ampacity: 256 Amps



high strength to weight ratio

better sag characteristics

improved electrical properties

excellent resistance to corrosion



ASTM B-398:  Aluminum Alloy 6201-T81 aluminum alloy conductors

ASTM B-399:  Concentric Lay stranded 6201-T81 aluminum alloy conductors



Conductors: 6201-T81 aluminum alloy conductors.  6201-T81 aluminum alloy is a high strength aluminum alloy for added durability and reduced sag when stranded overhead.  6201-T81 aluminum alloy is also more resistant to abrasion than 1350-H19 aluminum.

Stranding: Helically stranded.

Ampacity: Medium to high voltages.
