18 Core SY Control Cable
- Brand Name: GongNiu Cable
- Name: 18 core sy control cable
- Conductors: Plain annealed flexible copper. Class 5 flexible
- Sheath: PVC (Polyvinyl chloride) or LSZH
- Insulation: PVC (Polyvinyl chloride)
- Armour: GSWB (Galvanised Steel Wired Braid)
- Operating temperature: Flexing: 0°C / + 70°C
- Voltage: 300/500v
What is 18 Core SY Control Cable ?
SY cables, also known as armoured flexible control cable, shielded flex, or simply armoured flex, are strong and durable cables suitable for internal dry, damp or wet environments (including oil-water mixtures), and can be used outdoors when protected against direct sunlight.
18 Core SY Control Cable Features:
·Flexible
·Good resistance to chemicals
18 Core SY Control Cable Specifications
| No Cores | Conductor Cross Secton Area (mm²) | Cable Cross Secton Area (mm²) | Overall Diameter (mm) | Gland Size | Cleat Size | Nominal Weight (kg/km) | Resistance of Copper Conductor (Ω/Km) at 200C |
| 18 | 0.75 | 176.71 | 15 | 25 | 6 | 370 | 26 |
| 18 | 1 | 198.56 | 15.9 | 25 | 7 | 437 | 19.5 |
| 18 | 1.5 | 243.29 | 17.6 | 25 | 8 | 553 | 13.3 |
| 18 | 2.5 | 333.29 | 20.6 | 32 | 9 | 803 | 7.98 |
18 Core SY Control Cable Application
Plant engineering, industrial machinery
Heavy duty control equipment
Used as interconnecting cable for measuring, controlling or regulation in control systems
Also used in production lines and conveyors
Suitable for fixed installations or for flexible
Use in conditions of heavy mechanical
Can be used outdoors when protected, and in dry or moist conditions
SY Control Cable Core colours:
·2-core: Brown, Blue
·3-core: Blue, Brown, Green/Yellow
·4-core: Blue, Brown, Black, Green/Yellow
·5-core: Blue, Brown, Black, Grey, Green/Yellow
·6-core: Green/Yellow + 5 numbered
·7-core: Green/Yellow + 6 numbered
·12-core: Green/Yellow + 11 numbered
·18 core: Green/Yellow + 17 numbered
·25 core: Green/Yellow + 24 numbered
YOU MAY LIKE
Related products
-
SY Cable (YSLYSY / HSLHSH)
25 Core SY Control Cable
-
SY Cable (YSLYSY / HSLHSH)
12 Core SY Control Cable
-
SY Cable (YSLYSY / HSLHSH)
8 Core SY Control Cable
-
SY Cable (YSLYSY / HSLHSH)
7 Core SY Control Cable
-
SY Cable (YSLYSY / HSLHSH)
6 Core SY Control Cable
-
SY Cable (YSLYSY / HSLHSH)
5 Core SY Control Cable
-
SY Cable (YSLYSY / HSLHSH)

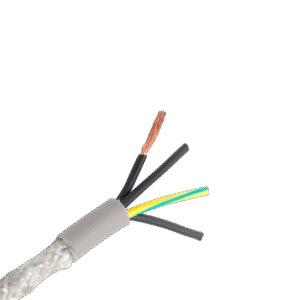

4 Core SY Control Cable
-
