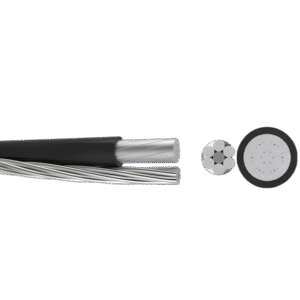

1×2+2awg Chow Aluminum Conductor Duplex Overhead Service Drop Cable
Duplex Service Drop Cable 2AWG Chow #2
Code Word: Chow
Size AWG (Phase Conductors): 2
Voltage: 600V
Number of cores: 2 cores
Package: Export wooden drum & iron wooden drum or as customer require
2-2 Chow Aluminum Conductor Duplex Overhead Service Drop Cable Application
2-2 Chow Aluminum Conductor Duplex Overhead Service Drop Cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 90°C maximum.
Also Known As:
2-2 chow aluminium overhead cables, 2-2 chow overhead aluminum wire, 2-2 chow two conductor cable, 2-2 chow 2 conductor power cable, 2-2 chow two conductor, 2-2 chow aluminum drop, 2-2 chow overhead service drop conductors, 2-2 chow overhead service conductors.
2-2 Chow Aluminum Conductor Duplex Overhead Service Drop Cable Standard
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600Volts
CONSTRUCTION :
2-2 Chow Aluminum Conductor Duplex Overhead Service Drop Cable Construction
Phase Conductor | Strand or Compressed 1350-H19 Series Aluminum Conductor. |
Neutral(Messenger)Conductor | Bare ACSR messenger. . |
Insulation | Black Cross Linked Polyethylene (XLP) Insulation. |
TECHNICAL DATA :
2-2 Chow Aluminum Conductor Duplex Overhead Service Drop Cable Technical Data
Rated voltage | kV | 0.6/1 |
Test voltage | Veff kV/Hz | 4/50 |
Laying temperature | °C | min. -5 |
Operating temperature | °C | -30 ~ +90 |
Conductor temperature | °C | max. +90 |
Short-circuit temperature | °C/s | max. +250 /5 |
Bending radius (min.) | mm | 20 × Ø of cable |
PARAMETER :
2-2 Chow Aluminum Conductor Duplex Overhead Service Drop Cable Parameter
Size AWG: 2Stranding: 7/w
Insulation Thickness (mils): 0.045
Neutral Size AWG: 2
Weight lbs./1000ft: XLP: 182
Weight lbs./1000ft: Poly: 175
Ampacity: XLPE: 150
Ampacity: Poly: 120
