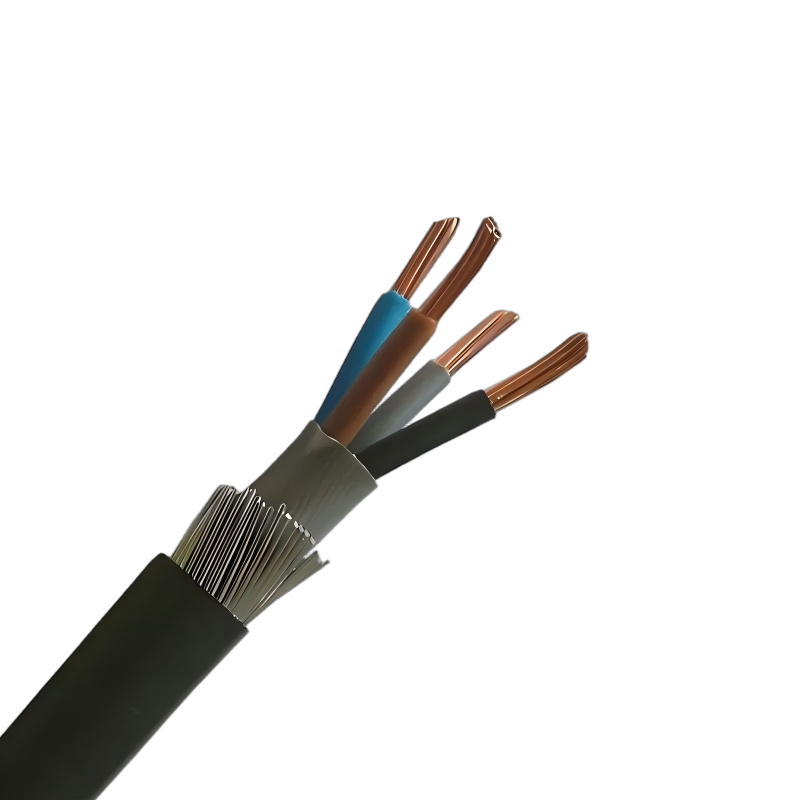

4 Core Armoured Cable Copper Cu/XLPE/PVC/SWA/PVC BS5467 0.6/1kV
4 Core Armoured Cable Copper XLPE PVC SWA 0.6/1kV
Voltage Rating: 600/1000 Volts,
Conductor: soft annealed copper
Insulation: Cross Linked Poly Ethylene (XLPE)
Armour: Steel Wire Armoured
Oversheath: PVC
4 Core SWA Armoured Cable Application
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.4 Core SWA Armoured Cable Standard
BS 5467 IEC 60502-1.CONSTRUCTION :
4 Core SWA Armoured Cable Construction
| Conductor | Plain cicrcular, compacted or shaped stranded copper or aluminum conductor, conform to IEC 60228 class 2 |
| Insulation | XLPE (cross-linked polyethylene), rated at 90°C |
| Bedding | PVC (Polyvinyl Chloride) |
| Armour | SWA (Galvanized Steel Wire Armour) |
| Sheath | PVC (Polyvinyl Chloride) |
| Rated Voltage | 600/1000V |
TECHNICAL DATA :
4 Core SWA Armoured Cable Technical Data
| STANDARD | IEC 60502-1, BS 5467 and BS 6346 |
| APPLICATION | Distribution networks, Industrial use |
| CHEMICAL PERFORMANCE | Chemical & Oil resistance: Good |
| MECHANICAL PERFORMANCE | Minimum bending raduis: x15cable diameter (unarmoured) Minimum bending raduis: x20 cable diameter (armoured) |
| FIRE PERFORMANCE | Flame non-propagation base on IEC 60332-1 Reduced emission of Halogens chlorine<15% |
| TERMINAL PERFORMANCE | Maximum service temperature: 90°C Maximum short-circuit temperature: 150°C(max. 5s) Minimum service temperature: -40°C |
| Type | Specification | Outer diameter | Nominal thickness of insulation | Diameter of steel wire | Nominal sheath thickness | Approx. Outer diameter of cable | Approx. Weight of cable | Ampacity of cable | ||||
| Air | Soil | |||||||||||
| CU | AL | Cu | Al | Cu | Al | |||||||
| XLPE/SWA | mm2 | mm | mm | mm | mm | mm | kg/km | kg/km | A | A | A | A |
| 4×4 RE | 2.24 | 0.7 | 1.25 | 1.8 | 19.1 | 770 | 670 | 37 | 28 | 46 | 35 | |
| 4×6 RE | 2.76 | 0.7 | 1.25 | 1.8 | 20.3 | 916 | 772 | 47 | 37 | 56 | 46 | |
| 4×10 CC | 3.8 | 0.7 | 1.6 | 1.8 | 22.3 | 1148 | 895 | 64 | 47 | 76 | 56 | |
| 4×16 CC | 4.8 | 0.7 | 1.6 | 1.8 | 24.5 | 1472 | 1070 | 84 | 64 | 98 | 76 | |
| 4×25 CC | 6.0 | 0.9 | 1.6 | 1.8 | 27.5 | 1942 | 1317 | 115 | 84 | 126 | 98 | |
| 4×35 CC | 7.0 | 0.9 | 1.6 | 1.8 | 29.5 | 2386 | 1521 | 141 | 115 | 152 | 126 | |
| 4×50 SM | 8.0 | 1.0 | 2.0 | 1.9 | 32.9 | 3209 | 2036 | 172 | 141 | 181 | 152 | |
| 4×70 SM | 9.5 | 1.1 | 2.0 | 2.1 | 36.7 | 4197 | 2502 | 218 | 172 | 222 | 181 | |
| 4×95 SM | 11.0 | 1.1 | 2.0 | 2.3 | 40.5 | 5362 | 3016 | 269 | 218 | 267 | 222 | |
| 4×120 SM | 12.4 | 1.2 | 2.5 | 2.4 | 45.3 | 6908 | 3940 | 313 | 269 | 305 | 267 | |
| 4×150 SM | 13.8 | 1.4 | 2.5 | 2.6 | 50.0 | 8327 | 4683 | 359 | 313 | 344 | 305 | |
| 4×185 SM | 15.4 | 1.6 | 2.5 | 2.7 | 54.2 | 10044 | 5466 | 405 | 359 | 383 | 344 | |
| 4×240 SM | 17.5 | 1.7 | 2.5 | 2.9 | 60.4 | 12672 | 6666 | 451 | 405 | 442 | 383 | |
| 4×300 SM | 19.6 | 1.8 | 2.5 | 3.1 | 65.7 | 15302 | 7795 | 497 | 451 | 461 | 422 | |
Note: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded
