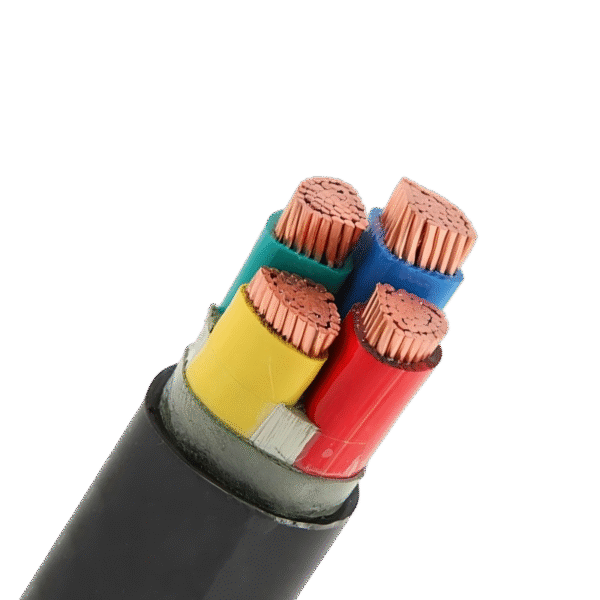

4 Cores XLPE Insulated PVC Sheathed Copper Cable Unarmoured 0.6/1kV
4 Cores Cable CU/XLPE/PVC Low Voltage
Conductor: Plain annealed copper
Insulation: XLPE X-90
Sheath: Polyvinylchloride compound PVC 5V-90
Voltage: 0.6/1kV
Number of cores: 4 Cores
Package : Export wooden drum & iron wooden drum or as customer require
XLPE 4 Cores Copper Cable Application
These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.
STANDARDS :
XLPE 4 Cores Copper Cable Standards:
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
CONSTRUCTION :
XLPE 4 Cores Copper Cable Construction
1. Conductor: Copper , Class 1: solid conductor, or Class 2: stranded conductor2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC
| 0.6/1kV-4 core copper conductor XLPE insulated PVC sheathed power cable | |||||||
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 4X1.5 | 0.7 | 1.8 | 12.6 | 160 | 12.1 | 21 | 30 |
| 4X2.5 | 0.7 | 1.8 | 13.6 | 210 | 7.41 | 28 | 39 |
| 4X4 | 0.7 | 1.8 | 14.8 | 280 | 4.61 | 37 | 51 |
| 4X6 | 0.7 | 1.8 | 16.0 | 380 | 3.08 | 47 | 64 |
4X10 | 0.7 | 1.8 | 18.6 | 530 | 1.83 | 65 | 86 |
| 4X16 | 0.7 | 1.8 | 21.0 | 800 | 1.15 | 84 | 110 |
| 4X25 | 0.9 | 1.8 | 24.9 | 1240 | 0.727 | 110 | 140 |
| 4X35 | 0.9 | 1.8 | 28.3 | 1600 | 0.524 | 135 | 170 |
| 4X50 | 1.0 | 1.8 | 28.4 | 2000 | 0.387 | 170 | 205 |
| 4X70 | 1.1 | 2.0 | 33.1 | 2800 | 0.268 | 215 | 250 |
4×95 | 1.1 | 2.1 | 37.1 | 4000 | 0.193 | 265 | 300 |
| 4X120 | 1.2 | 2.2 | 40.8 | 5000 | 0.153 | 310 | 345 |
| 4X150 | 1.4 | 2.4 | 45.2 | 6100 | 0.124 | 350 | 385 |
| 4X185 | 1.6 | 2.6 | 52.1 | 7600 | 0.0991 | 405 | 435 |
| 4X240 | 1.7 | 2.8 | 57.8 | 9500 | 0.0754 | 480 | 500 |
| 4X300 | 1.8 | 3.0 | 63.5 | 12000 | 0.0601 | 555 | 565 |
| 4X400 | 2.0 | 3.3 | 70.9 | 16000 | 0.0470 | 640 | 640 |
YOU MAY LIKE
Related products
-
4 Cores Copper Cable CU/XLPE/PVC
XLPE Insulated 300mm2 4 Cores Copper Cable 4x300mm2
-
4 Cores Copper Cable CU/XLPE/PVC

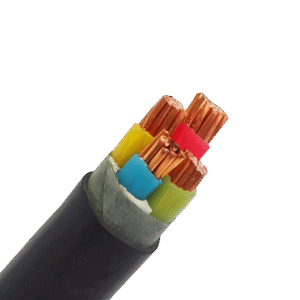

XLPE Insulated 95mm2 4 Cores Copper Cable 4x95mm2
-
4 Cores Copper Cable CU/XLPE/PVC
XLPE Insulated 70mm2 4 Cores Copper Cable 4x70mm2
-
4 Cores Copper Cable CU/XLPE/PVC

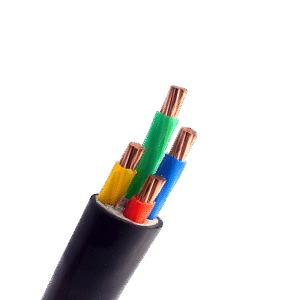

XLPE Insulated 25mm2 4 Cores Copper Cable 4x25mm2
-
4 Cores Copper Cable CU/XLPE/PVC
XLPE Insulated 16mm2 4 Cores Copper Cable 4x16mm2
-
4 Cores Copper Cable CU/XLPE/PVC
XLPE Insulated 10mm2 4 Cores Copper Cable 4x10mm2
-
4 Cores Copper Cable CU/XLPE/PVC

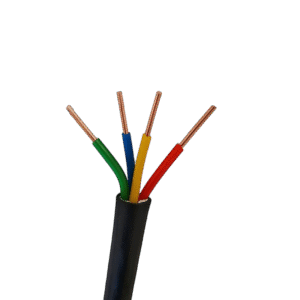

XLPE Insulated 2.5mm2 4 Cores Copper Cable 4×2.5mm2
-
