6.35/11kV & 12.7/22kV Non Screened MV ABC Cable Aerial Bundled Cables to AS/NZS 3599.1
6.35/11kV & 12.7/22kV Non Screened MV ABC Cable Aerial Bundled Cables to AS/NZS 3599.1
Conductor: Compact stranded hard drawn Aluminium Conductor ( Class2)
Conductor Screen: Extruded semi-conductive layer.
Insulation: Cross-linked polyethylene (Natural)
Insulation Screen: Extruded semi-conductive layer.
Sheath: HDPE
Package : Export wooden drum & iron wooden drum or as customer require
Non Screened MV ABC Cable Application:
Non screened abc cable to AS/NZS 3599.1 is a new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line. Used as bare overhead transmission cable and as primary and secondary distribution cable.Cable Standards
AS/NZS 3599.1CONSTRUCTION :

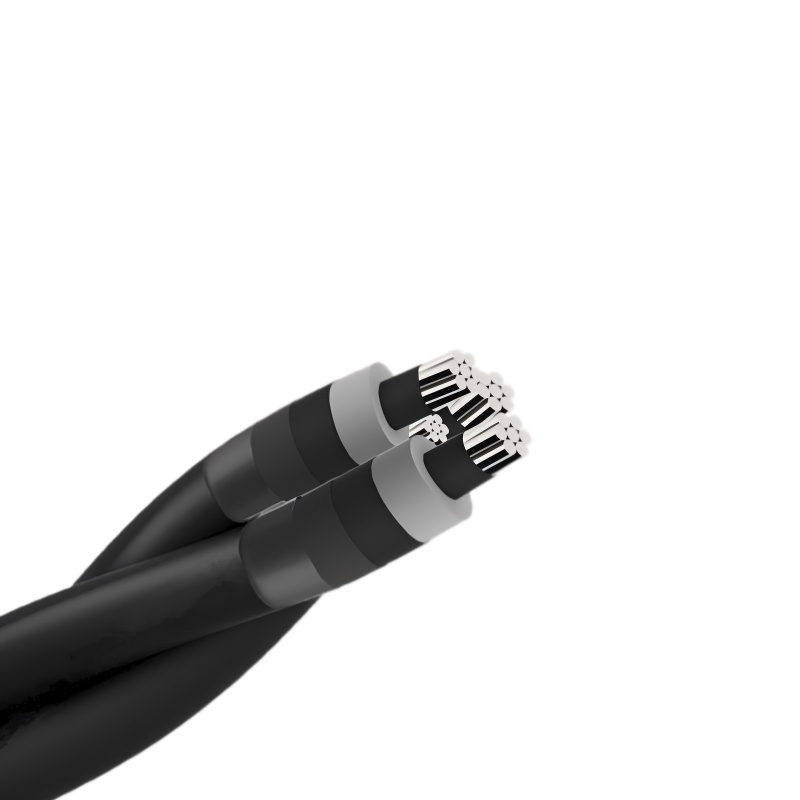

Non Screened MV ABC Cable Construction
| Phase Conductor | Circular Compacted Stranded H68 Aluminium ( Class 2) |
| Conductor Screen | Extruded Semi-conductive Layer. |
| Insulation | XLPE. |
| Insulation Screen | Extruded Semi-conductive Layer. |
| Outer Sheath | HDPE. |
| Support Conductor | Aluminium Alloy Conductor (AAAC/1120). |
| Assembly | Three XLPE Insulated Cores are Bundled Around the AAAC/1120 Support Conductor in a Right Hand Lay. |
TECHNICAL DATA :
Temperature :
– Normal operation 90°C.
– Emergency over load conditions 130°C.
– Short circuit conditions 250°C.
Technical Parameter
| Number of Cores x Nominal Cross Section | Nominal Conductor Diameter | Nominal Insulation Thickness | Nominal Insulation Screen Thickness | Nominal Sheath Thickness | AAAC/1120 Support Conductor size | Nominal Overall Diameter | Weight | Continuous Current Rating, A | ||
| Still Air | 1m/s Wind | 2m/s Wind | ||||||||
| mm^2 | mm | mm | mm | mm | No/mm | mm | kg/km | A | A | A |
| 6.35/11kV Aerial Bundled Cable | ||||||||||
| 3×35 | 6.9 | 3.4 | 0.8 | 1.2 | 7/4.75 | 52.4 | 1370 | 110 | 155 | 185 |
| 3×50 | 8.1 | 3.4 | 0.8 | 1.2 | 7/4.75 | 54.6 | 1530 | 130 | 185 | 225 |
| 3×70 | 9.7 | 3.4 | 0.8 | 1.2 | 7/4.75 | 57.8 | 1790 | 160 | 235 | 280 |
| 3×95 | 11.4 | 3.4 | 0.8 | 1.2 | 7/4.75 | 61.3 | 2100 | 195 | 285 | 345 |
| 3×120 | 12.8 | 3.4 | 0.8 | 1.2 | 19/3.50 | 67.3 | 2540 | 230 | 335 | 405 |
| 3×150 | 14.2 | 3.4 | 0.8 | 1.2 | 19/3.50 | 70.1 | 2840 | 255 | 380 | 460 |
| 3×185 | 15.7 | 3.4 | 0.8 | 1.2 | 19/3.50 | 73.1 | 3190 | 295 | 440 | 530 |
| 12.7/22kV Aerial Bundled Cable | ||||||||||
| 3×35 | 6.9 | 5.5 | 0.8 | 1.2 | 7/4.75 | 61 | 1780 | 110 | 155 | 180 |
| 3×50 | 8.1 | 5.5 | 0.8 | 1.2 | 7/4.75 | 63.3 | 1970 | 130 | 185 | 220 |
| 3×70 | 9.7 | 5.5 | 0.8 | 1.2 | 7/4.75 | 66.5 | 2260 | 160 | 230 | 275 |
| 3×95 | 11.4 | 5.5 | 0.8 | 1.2 | 7/4.75 | 69.9 | 2600 | 195 | 285 | 335 |
| 3×120 | 12.8 | 5.5 | 0.8 | 1.2 | 19/3.50 | 75.9 | 3070 | 225 | 330 | 395 |
| 3×150 | 14.2 | 5.5 | 0.8 | 1.2 | 19/3.50 | 78.7 | 3390 | 255 | 375 | 450 |
| 3×185 | 15.7 | 5.5 | 0.8 | 1.2 | 19/3.50 | 81.7 | 3760 | 290 | 435 | 520 |
