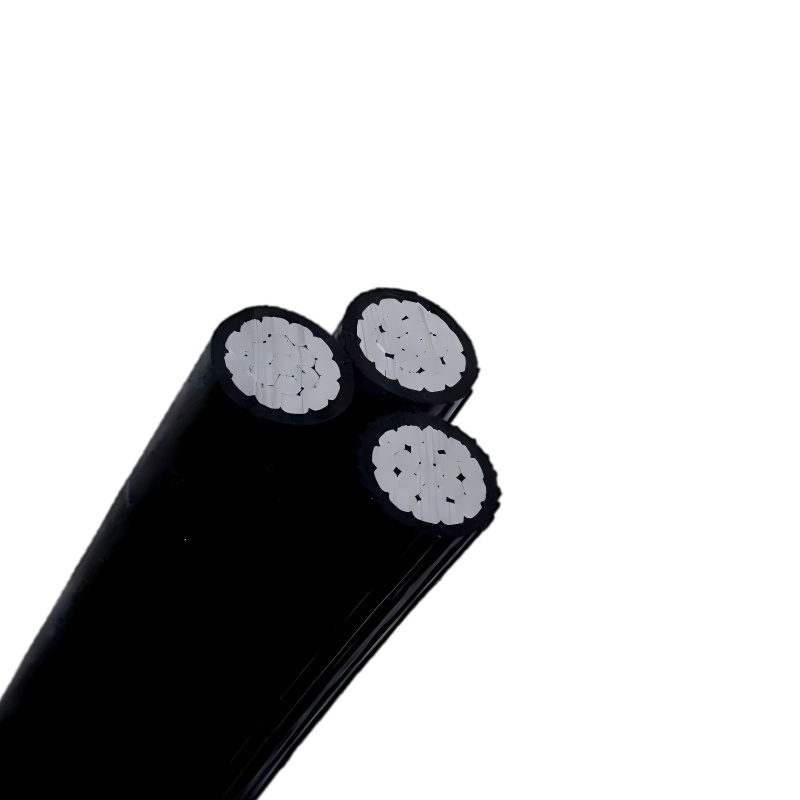

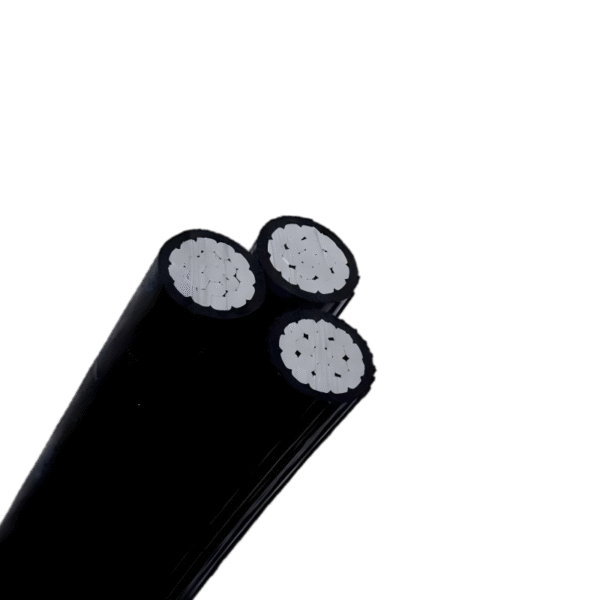

ABC Aluminum Aerial Bundle Cables BS 7870-5

Name: ABC Cable Aluminum Aerial Bundle Cables BS 7870-5

Conductor : 1350-H19 Aluminum Conductor

Insulation : XLPE

Voltage : 0.6/1kV

Number of cores: 2-5 cores

Package : Export wooden drum & iron wooden drum or as customer require

Application

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation as overhead power lines up to 1000 V incl.

Strandard

BS 7870-5:1999

CONSTRUCTION :

ABC Cable BS 7870-5 Construction

Conductor (for either phase, neutral or street lighting)	The conductors shall be of aluminium 1350 wires and are compacted circular stranded(RM).
Insulation	XLPE. 1, 2 and 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm² and a minimum of 16 ribs for cores above 50 mm². In the case of five core bundles the surface of the protective core should be smooth.
Assembly	2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded.

ABC Cable Aluminum Aerial Bundle Cables BS 7870-5

TECHNICAL DATA :

Rated voltage	kV	0.6/1
Test voltage	Veff kV	4
Laying temperature	°C	min. -20
Operating temperature	°C	-30 ~ +80
Conductor temperature	°C	max. +80
Short-circuit temperature	°C/s	max. +130 /5
Bending radius (min.)		18 × o of cable

Technical Parameter

No. of Core	Phase Core				Neutral Core				Complete Cable
& Size	No. &	No. of wire	Dia. of Conductor	Insulation	No. &	No. of Wire	Dia. of Conductor	Insulation	Overall Diameter	Weight
	Section Area		(Approx.)	Thickness	Section Area		(Approx.)	Thickness	(Approx.)	(Approx.)

mm2	mm2	No.	mm	mm	mm2	No.	mm	mm	mm	kg/km
1×25	1×25	7	6.0	1.3	–	–	–	–	8.6	96
1×35	1×35	7	7.0	1.3	–	–	–	–	9.6	126
1×50	1×50	19	8.4	1.5	–	–	–	–	11.4	183
1×70	1×70	19	10.0	1.5	–	–	–	–	13.0	236
1×95	1×95	19	11.6	1.7	–	–	–	–	15.0	323
1×120	1×120	19	13.0	1.7	–	–	–	–	16.4	399
2×25	1×25	7	6.0	1.3	1×25	7	6.0	1.3	17.2	192
2×35	1×35	7	7.0	1.3	1×35	7	7.0	1.3	19.2	252
2×50	1×50	19	8.4	1.5	1×50	19	8.4	1.5	22.8	365
2×70	1×70	19	10.0	1.5	1×70	19	10.0	1.5	26.0	472
2×95	1×95	19	11.6	1.7	1×95	19	11.6	1.7	30.0	645
2×120	1×120	19	13.0	1.7	1×120	19	13.0	1.7	32.8	798
3×25	2×25	7	6.0	1.3	1×25	7	6.0	1.3	18.5	288
3×35	2×35	7	7.0	1.3	1×35	7	7.0	1.3	20.6	378
3×50	2×50	19	8.4	1.5	1×50	19	8.4	1.5	24.5	548
3×70	2×70	19	10.0	1.5	1×70	19	10.0	1.5	28.0	708
3×95	2×95	19	11.6	1.7	1×95	19	11.6	1.7	32.3	968
3×120	2×120	19	13.0	1.7	1×120	19	13.0	1.7	35.3	1196
4×25	3×25	7	6.0	1.3	1×25	7	6.0	1.3	20.7	384
4×35	3×35	7	7.0	1.3	1×35	7	7.0	1.3	23.1	504
4×50	3×50	19	8.4	1.5	1×50	19	8.4	1.5	27.5	731
4×70	3×70	19	10.0	1.5	1×70	19	10.0	1.5	31.4	943
4×95	3×95	19	11.6	1.7	1×95	19	11.6	1.7	36.2	1290
4×120	3×120	19	13.0	1.7	1×120	19	13.0	1.7	39.6	1595
5×25	4×25	7	6.0	1.3	1×25	7	6.0	1.3	23.2	480
5×35	4×35	7	7.0	1.3	1×35	7	7.0	1.3	25.9	630
5×50	4×50	19	8.4	1.5	1×50	19	8.4	1.5	30.8	914
5×70	4×70	19	10.0	1.5	1×70	19	10.0	1.5	35.1	1179
5×95	4×95	19	11.6	1.7	1×95	19	11.6	1.7	40.5	1613
5×120	4×120	19	13.0	1.7	1×120	19	13.0	1.7	44.3	1993
