ABC Aluminum Aerial Bundle Cables IEC 60502-1

Name: ABC Aluminum Aerial Bundle Cables IEC 60502-1

Conductor: Aluminium conductor

Insulation : PE /XLPE/PVC

Voltage : 0.6/1kV

Number of cores: 2-5 cores

Package : Export wooden drum & iron wooden drum or as customer require

Cable Application

Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 1000 volts phase – to – phase or less and at conductor temperatures not to exceed 70°C for polyethylene (PE) and Polyvinyl chloride (PVC) insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

Cable Strandard

● GB/T 12527（Equivalent to IEC 60502-1）Aerial Insulated Cables for Rated Voltages up to and Including 1kV
● IEC 60228 Conductors of insulated cables

CONSTRUCTION :

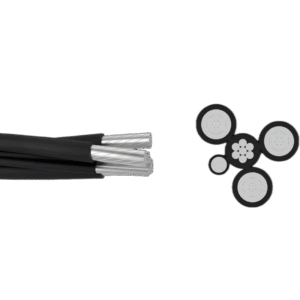

ABC Cable IEC60502 Construction

CONDUCTOR	Conductors are stranded,circular compacted or uncompacted aluminum, copper , aluminum-alloy, ACSR etc.
INSULATION	Thermoplastic polyethylene(PE),polyvinyl chloride (PVC) ,cross-linked polyethylene (XLPE),black color,weather and UV resistant.

Type	No. of Cores	Nominal size mm²
CU/PVC, AAC/PVC, AAAC/PVC, CU/PE, AAC/PE, AAAC/PE, CU/XLPE, AAC/XLPE, AAAC/XLPE	1 2,4	10 ~ 400 10 ~ 120
AAC/PVC, AAC/PE, AAC/XLPE	3+k*	10 ~ 120

*The auxiliary core k is a load-bearing core or a neutral core with a load. According to the requirements of the factory, the cross-section of the auxiliary core is optional to match the main core. (A) means steel carrying stranded wire, (B) means aluminum alloy carrying stranded wire.

Technical Parameter

Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	Max. DC Resistance at 20 0C		Breaking Load
Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	Hard copper	Annealedcopper	Hard copper
mm²	No.	mm	mm	mm	Ω/km	Ω/km	N
10	6	3.8	1.0	6.5	1.906	1.83	3471
16	6	4.8	1.2	8.0	1.198	1.15	5486
25	6	6.0	1.2	9.4	0.749	0.727	8465
35	6	7.0	1.4	11.0	0.540	0.524	11731
50	6	8.4	1.4	12.3	0.399	0.387	16052
70	12	10.0	1.4	14.1	0.276	0.268	23461
95	15	11.6	1.6	16.5	0.199	0.193	31759
120	18	13.0	1.6	18.1	0.158	0.153	39911
150	18	14.6	1.8	20.2	0.128	0.124	49505
185	30	16.2	2.0	22.5	0.1021	0.0991	61846
240	34	18.4	2.2	25.6	0.0777	0.0754	79823

Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	Max. DC Resistance at 20 0C		Breaking Load
Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	AAC	AAAC	AAC	AAAC
mm²	No.	mm	mm	mm	Ω/km	Ω/km	N	N
10	6	3.8	1.0	6.5	3.08	3.574	1650	2514
16	6	4.8	1.2	8.0	1.91	2.217	2517	4022
25	6	6.0	1.2	9.4	1.20	1.393	3762	6284
35	6	7.0	1.4	11.0	0.868	1.007	5177	8800
50	6	8.4	1.4	12.3	0.641	0.744	7011	12569
70	12	10.0	1.4	14.1	0.443	0.514	10354	17596
95	15	11.6	1.6	16.5	0.320	0.371	13727	23880
120	15	13.0	1.6	18.1	0.253	0.294	17339	30164
150	15	14.6	1.8	20.2	0.206	0.239	21033	37706
185	30	16.2	2.0	22.5	0.164	0.190	26732	46503
240	30	18.4	2.2	25.6	0.125	0.145	34679	60329
300	30	20.8	2.2	27.2	0.100	0.116	43349	75411
400	53	23.2	2.2	30.7	0.0778	0.0904	55707	100548

Nominal cross-sectional area	Stranding and Wire Diameter	Approximate Overall Diameter of Bare Conductor	Maximum Resistance per kilometre at 20 °C	Approximate Breaking Load	Approximate Overall Diameter of Covered Conductor		Approximate Mass per kilometre of Covered Conductor
Nominal cross-sectional area	Stranding and Wire Diameter	Approximate Overall Diameter of Bare Conductor	Maximum Resistance per kilometre at 20 °C	Approximate Breaking Load	Type 8	Type 16	Type 8	Type 16
mm²	mm	mm	Ω	kN	mm	mm	kg	kg
CU/PVC
14	7/1.60	4.80	1.303	5.744	6.8	8.4	160	190
16	3/2.65	5.70	1.106	6.590	7.7	9.3	180	220
32	3/3.75	8.06	0.5520	12.71	10.5	12.1	350	390
35	7/2.50	7.50	0.5337	14.097	9.9	11.5	360	400
70	7/3.55	10.65	0.2646	26.88	13.5	14.7	690	750
100	7/4.30	12.90	0.1810	37.64	15.7	16.9	990	1060

Nominal cross-sectional area	Stranding and Wire Diameter	Approximate Overall Diameter of Bare Conductor	Maximum Resistance per kilometre at 20 °C	Approximate Breaking Load	Approximate Overall Diameter of Covered Conductor	Approximate Mass per kilometre of Covered Conductor
Nominal cross-sectional area	Stranding and Wire Diameter	Approximate Overall Diameter of Bare Conductor	Maximum Resistance per kilometre at 20 °C	Approximate Breaking Load	Type 16	Type 16
mm²	mm	mm	Ω	kN	mm	kg
COPPER-ALLOY / PVC
12	3/2.30	4.95	1.780	7.20	8.2	170
22	7/2.00	6.00	1.011	12.94	9.6	270
38	7/2.60	7.80	0.5983	21.69	11.8	430
75	7/3.70	11.10	0.2954	40.23	15.1	810
125	19/2.90	14.50	0.1784	68.75	18.5	1310
150	19/3.20	16.00	0.1465	82.16	20.0	1570

Nominal cross-sectional area	Stranding and Wire Diameter	Approximate Overall Diameter of Bare Conductor	Maximum Resistance per kilometre at 20 °C	Approximate Breaking Load	Approximate Overall Diameter of Covered Conductor	Approximate Mass per kilometre of Covered Conductor
Nominal cross-sectional area	Stranding and Wire Diameter	Approximate Overall Diameter of Bare Conductor	Maximum Resistance per kilometre at 20 °C	Approximate Breaking Load	Type 16	Type 16
mm²	mm	mm	Ω	kN	mm	kg
AAAC / PVC
25	7/2.34	7.02	1.094	8.44	10.6	170
50	7/3.30	9.90	0.5498	16.80	13.9	280
100	7/4.65	13.95	0.2769	33.30	18.0	470
150	19/3.48	17.40	0.1830	50.65	21.4	680
200	19/3.76	18.80	0.1568	59.10	22.8	780
