ACSR-Aluminum Conductor Steel Reinforced

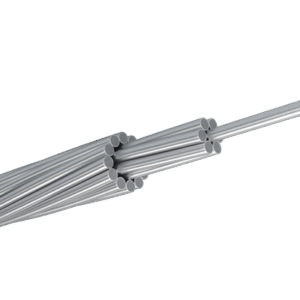

Aluminium Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

APPLICATION
Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

DESCRIPTION
Aluminium Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

SPECIFICATIONS
• IEC 61089 Round wire concentric lay overhead electrical stranded conductors
• ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced
• BS EN 50182 Conductors for overhead lines — Round wire concentric lay stranded conductors
• BS 215-1 Aluminium Conductors and Aluminium Conductors, Steel-reinforced — For Overhead Power Transmission — Part 2: Aluminium Conductors, Steel-reinforced
• AS 3607 Conductors – Bare overhead – Aluminium and aluminium alloy-Steel reinforced
• GB/T 1179 Round wire concentric lay overhead electrical stranded conductors
