ACSR – Aluminum Conductors Steel Reinforced

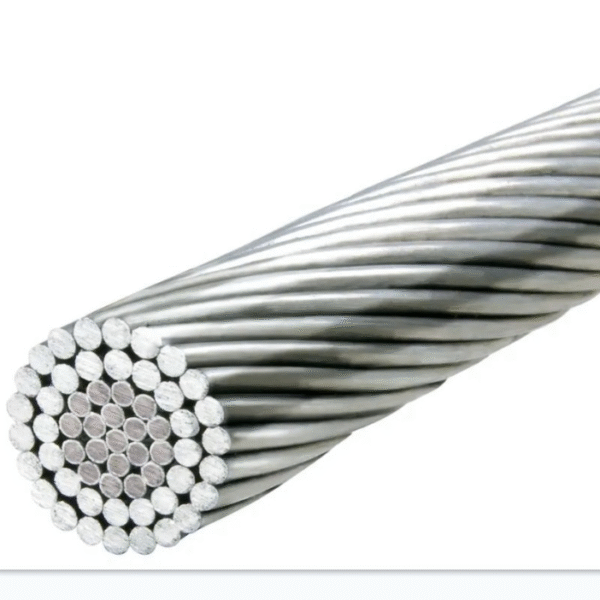

ACSR is made of twisted aluminum wire and steel wire, suitable for overhead transmission lines. The inside of it is a steel core, and the outside is twisted with aluminum wires around the steel core; the steel core mainly plays the role of increasing the strength, and the aluminum stranded wire mainly plays the role of transmitting electric energy.
Construction
- Aluminum 1350-H19 wires, concentrically stranded about a steel core. Standard core wire for ACSR is class A galvanized
- Class A core stranding is also available in zinc-5% aluminum-mischmetal alloy coating.
- For aluminum-clad (AW) ACSR, please refer to the ACSR/AW catalog sheet
- Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease
- ACSR conductor is also available in non-specular.
-
Electrical Properties
Density@20oC Aluminium: 2.703 kg/dm Galvanised Steel: 7.80 kg/dm Temperature Coefficient@20°C Aluminium: 0.00403 (°C) Resistivity@20°C Aluminium: Should not exceed 0.028264 Linear Expansivity Aluminium: 23 x10 (°C) Galvanised Steel: 11.5 x10 (1/°C) Service Conditions
Ambient Temperature -5°C – 50°C Wind Pressure 80 – 130kg/m2 Seismic Acceleration 0.12 – 0.05g Isokeraunic Level 10 – 18 Relative Humidity 5 – 100% Construction Parameters
BS 215-2
Code Nominal Area Stranding Overall Diameter Weight(CU) Rated Strength Electrical Resistance @20o AL Steel Total AL Steel Core Total AL Steel Total Nominal Teorical mm2 mm2 mm2 mm2 No.×mm No.×mm mm mm Kg/Km Kg/Km Kg/Km KN Ω/Km Mole 10 10.62 1.77 12.39 6/1.50 1/1.50 1.50 4.5 29 14 43 4.14 2.706 Squirrel 20 20.94 3.49 24.43 6/2.11 1/2.11 2.11 6.33 57 28 85 7.88 1.368 Gopher 25 26.24 4.38 30.62 6/2.36 1/2.36 2.36 7.08 71 35 106 9.61 1.093 Weasel 30 31.61 5.27 36.88 6/2.59 1/2.59 2.59 7.77 87 41 128 11.45 0.9077 Fox 35 36.66 6.11 42.77 6/2.79 1/2.79 2.79 8.37 101 48 149 13.2 0.7822 Ferret 40 42.41 7.07 49.48 6/3.00 1/3.00 3.0 9.0 117 55 172 15.2 0.6766 Rabbit 50 52.88 8.82 61.7 6/3.35 1/3.35 3.35 10.05 145 69 214 18.35 0.5426 Mink 60 63.18 10.53 73.71 6/3.66 1/3.66 3.66 10.98 171 84 255 2.18 0.4545 Shunk 60 63.27 37.03 100.3 12/2.59 7/2.59 7.77 12.95 178 287 465 5.3 0.4567 Beaver 70 74.82 12.47 87.29 6/3.99 1/3.99 3.99 11.97 203 99 302 2.57 0.3825 Horse 70 73.37 42.63 116.2 12/2.79 7/2.79 8.37 13.95 203 335 538 61.2 0.3936 Racoon 75 79.2 13.2 92.4 6/4.1 1/4.1 4.1 12.3 216 104 320 27.2 0.3622 Otter 80 83.88 13.98 97.86 6/4.22 1/4.22 4.22 13.98 226 113 339 28.8 0.3419 Cat 90 95.44 15.86 111.3 6/4.5 1/4.5 4.5 15.9 258 128 386 32.7 0.3007 Hare 100 105 17.5 122.5 6/4.72 1/4.72 4.72 17.5 284 141 425 36.0 0.2733 Dog 100 105 13.5 118.5 6/4.72 7/1.57 4.71 14.15 288 106 394 32.7 0.2733 Hyena 100 105.8 20.4 126.2 7/4.39 7/1.93 5.79 14.57 250 200 450 40.9 0.2712 Leoperd 125 131.3 16.8 148.1 8/5.28 7/1.75 5.25 15.81 310 182 492 40.7 0.2184 Coyotte 125 132.1 20.1 152.2 26/2.54 7/1.91 5.73 15.89 410 112 522 46.4 0.2187 Congar 125 130.3 7.2 137.5 18/3.05 1/3.05 3.05 15.25 361 58 419 29.8 0.2189 Tiger 125 131.1 30.6 161.7 30/2.36 7/2.36 7.08 16.52 365 237 602 58 0.2202 Wolf 150 158.1 36.8 194.9 30/2.59 7/2.59 7.77 18.13 441 285 726 69.2 0.1828 Dingo 150 158.7 8.8 167.5 18/3.35 1/3.35 3.35 16.75 437 69 506 35.7 0.1815 Lynx 175 183.4 42.8 226.2 30/2.79 7/2.79 8.37 19.53 507 335 842 79.8 0.1576 Caracal 175 184.3 10.2 194.5 18/3.61 1/3.61 3.61 18.05 507 80 587 41.1 0.1563 Panther 200 212.1 49.4 261.5 30/3.00 7/3.00 9.0 21.0 586 388 974 92.25 0.1363 Jaguar 200 210.6 11.7 222.3 18/3.86 1/3.86 3.86 19.3 580 91 671 46.55 0.1367 Lion 225 238.5 55.7 294.2 30/3.18 7/3.18 9.54 22.26 657 438 1095 100.6 0.1212 Bear 250 264 61.6 325.6 30/3.35 7/3.35 10.05 23.45 728 485 1213 111.1 0.1090 Goat 300 324.3 75.7 400 30/3.71 7/3.71 11.13 25.79 894 595 1489 135.7 0.0891 Sheep 350 374.1 87.3 461.4 30/3.99 7/3.99 11.97 27.93 1031 687 1718 155.9 0.0770 Antilope 350 373.1 48.4 421.5 54/2.97 7/2.97 8.91 26.73 1040 371 1411 118.2 0.0772 Bizon 350 381.8 49.5 431.3 54/3.00 7/3.00 9.0 27.0 1064 380 1444 120.9 0.0757 Zebra 400 428.9 55.6 484.5 54/3.18 7/3.18 9.54 28.62 1185 436 1621 131.9 0.0674
