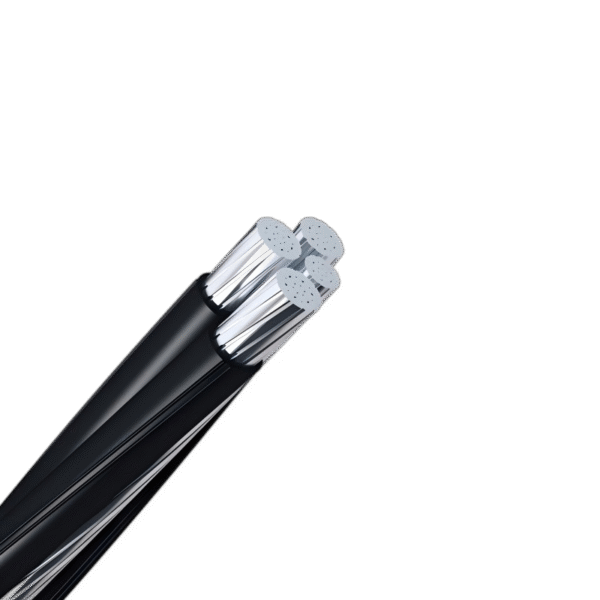

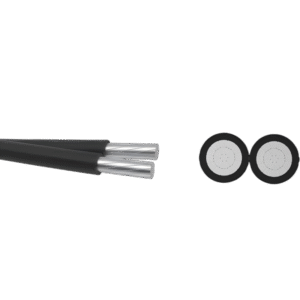

Name: Low Voltage Twsit Overhead Cable Amka

Conductor : 1350-H19 Aluminum

Insulation : PE

Voltage : 0.6/1kV

Number of cores: 2-5 cores

Package : Export wooden drum & iron wooden drum or as customer require

Low voltage overhead aerial cables with aluminum alloy messenger and aluminum phase conductors, polyethylene insulation for overhead power lines

SFS 2200, HD 626 S1 5D

Conductor	Phase conductor: Round stranded aluminium conductor Supporting conductor:Round stranded aluminium alloy conductor
Insulation	PE Highest permissible conductor temperature : – continuous operation 70 °C – short circuit (up to 1s) 135 °C Identification of cores Phase conductors: 2, 3, or 4 longitudinal ridges
Insulation color	Black

Technical Parameter

No.	Parameter of phase conductor	Nominal cross-section [mm2]
		16		25			35			50			70			120
1.	Conductor bare diameter (approx.) [mm]	4.4		5.9			7.0			8.1			9.6			12.7
2.	Insulation thickness [mm]	1.4		1.4			1.6			1.6			1.8			2.0
3.	Resistance max (at 20°C, DC) [W/km]	1.91		1.20			0.868			0.641			0.443			0.253
4.	Resistance max (at 70°C, AC) [W/km]	2.29		1.44			1.04			0.770			0.532			0.304
5.	Tensile strength [N/mm2]	120
	Parameter of supporting conductor	Nominal cross-section [mm2]
		25			35			50				70			95
6.	Supporting conductor material	AlMgSi Alloy
7.	Conductor diameter (approx.) [mm]	5.9			6.9			8.1				9.7			11.4
8.	Resistance max (at 20°C, DC)	1.380			0.986			0.720				0.493			0.363
9.	Calculated strength of conductor [kN]	7.4			10.3			14.2				20.6			27.9
10.	Tensile strength [N/mm2]	294
	Parameter of cable	Size of cable [no of cores x mm2]
		1×16+25	3×16+25			3×25+35			3×35+50		3×50+70			3×70+95			3×120+95
11.	Cable weight (approx.) [kg/km]	135	269			393			541		710			988			1478
12.	Outer diameter (approx.) [mm]	15	18			21			25		31			32			41
13.	Approximate current carrying capacity [A]	75	70			92			115		140			180			250
14.	Modulus of elasticity [N/mm2]	64 000
15.	Coefficient of linear expansion [1/K]	23.0 x 10-6
