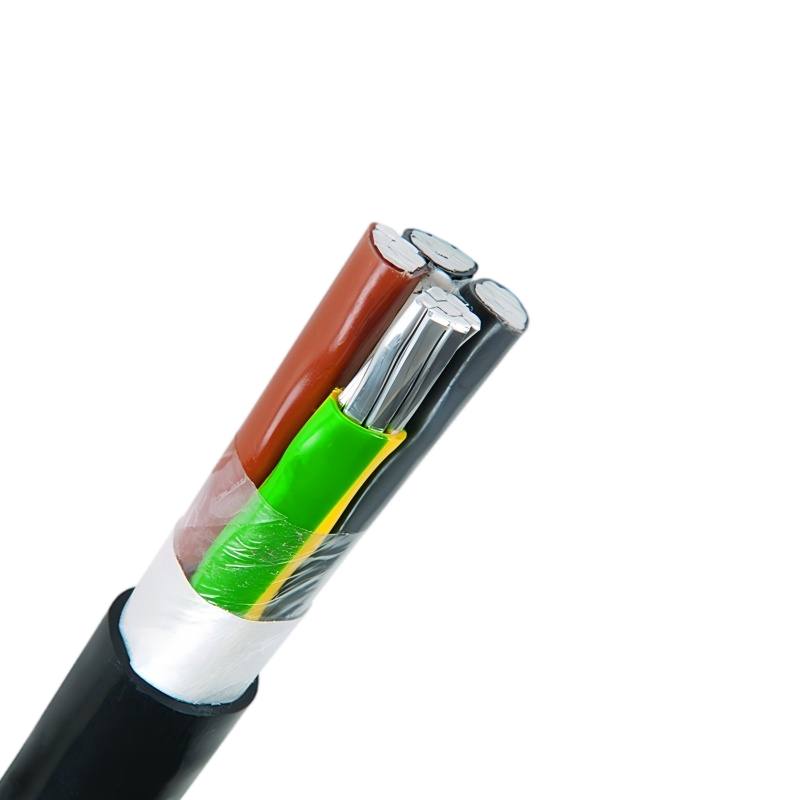

AXMK Cable
Power cable 0,6/1 kV with Al conductors, XLPE insulated and PVC sheathed
Conductor: Aluminum
Insulation: XLPE
Sheath: PVC
Voltage : 0.6/1kV
Package : Export wooden drum & iron wooden drum or as customer require
AXMK Cable Application
The AXMK 1kV is a power distribution cable suitable for indoor power stations, industrial installations and switchgears, as well as in local mains. For fixed installation underground, in interior premises, cable ducts, in the open air, in water- if no risk of any mechanical damage is to be expected.
AXMK Cable Standard
EN 60332-1-2 . HD 603.SD, SFS 4879, HD 308 S2
CONSTRUCTION :
AXMK Cable Construction
Conductors: : Al, class 1 or class 2 according to EN 60228, annealed
Insulation: XLPE compound
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: PVC compound, UV resistant, black or by
customer requestt
Insulation: XLPE compound
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: PVC compound, UV resistant, black or by
customer requestt
TECHNICAL :
AXMK Cable Technical Characteristics
Voltage Rating Uo/U
0.6/1kV
Test Voltage
4kV/50Hz
Temperature Rating
Minimum Laying temperature: -15ºC
Operating temperature: -30ºC to +90ºC
Conductor temperature: +90ºC
Short Circuit Temperature:250°C
Short Circuit Temperature:250°C
Minimum Bending Radius
10 x overall diameter
Technical Parameter
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR SHAPE mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | ALUMINIUM WEIGHT kg/km | NOMINAL WEIGHT kg/km | |||
| 1 | 16 | RE | 0.70 | 9.5 | 46 | 122 | |||
| 1 | 25 | RE | 0.90 | 11.9 | 73 | 175 | |||
| 1 | 35 | RM | 0.90 | 13.0 | 102 | 206 | |||
| 1 | 50 | RM | 1.00 | 14.9 | 145 | 267 | |||
| 1 | 70 | RM | 1.10 | 17.0 | 203 | 358 | |||
| 1 | 95 | RM | 1.10 | 18.9 | 276 | 451 | |||
| 1 | 120 | RM | 1.20 | 20.7 | 348 | 546 | |||
| 1 | 150 | RM | 1.40 | 22.7 | 435 | 655 | |||
| 1 | 185 | RM | 1.60 | 25.1 | 537 | 800 | |||
| 1 | 240 | RM | 1.70 | 27.6 | 696 | 987 | |||
| 1 | 300 | RM | 1.80 | 31.9 | 870 | 1324 | |||
| 1 | 400 | RM | 2.00 | 34.9 | 1160 | 1640 | |||
| 1 | 500 | RM | 2.20 | 39.3 | 1450 | 2030 | |||
| 1 | 630 | RM | 2.40 | 44.1 | 1827 | 2400 | |||
| 1 | 800 | RM | 2.60 | 49.0 | 2320 | 2974 | |||
| 1 | 1000 | RM | 2.80 | 54.0 | 2900 | 3315 | |||
| 4 | 16 | RE | 0.70 | 18.3 | 185 | 596 | |||
| 4 | 25 | SM | 0.90 | 21.1 | 290 | 509 | |||
| 4 | 35 | SM | 0.90 | 23.4 | 406 | 653 | |||
| 4 | 50 | SM | 1.00 | 26.4 | 580 | 832 | |||
| 4 | 70 | SM | 1.10 | 30.4 | 812 | 1118 | |||
| 4 | 95 | SM | 1.10 | 34.1 | 1102 | 1465 | |||
| 4 | 120 | SM | 1.20 | 38.1 | 1392 | 1837 | |||
| 4 | 150 | SM | 1.40 | 42.1 | 1740 | 2250 | |||
| 4 | 185 | SM | 1.60 | 46.6 | 2146 | 2807 | |||
| 4 | 240 | SM | 1.70 | 52.2 | 2784 | 3603 | |||
| 4 | 300 | SM | 1.80 | 55.9 | 3480 | 4223 | |||
| 5 | 10 | RE | 0.70 | 17.8 | 145 | 422 | |||
| 5 | 16 | RE | 0.70 | 20.0 | 232 | 544 | |||
| 5 | 25 | SM | 0.90 | 22.9 | 363 | 606 | |||
| 5 | 35 | SM | 0.90 | 25.7 | 507.8 | 807 | |||
| 5 | 50 | SM | 1.00 | 30.1 | 725 | 1032 | |||
| 5 | 70 | SM | 1.10 | 35.1 | 1015 | 1404 | |||
| 5 | 95 | SM | 1.10 | 38.1 | 1380 | 1800 | |||
| 5 | 120 | SM | 1.20 | 40.3 | 1740 | 2320 | |||
| 5 | 150 | SM | 1.40 | 47.4 | 2175 | 2900 | |||
| 5 | 185 | SM | 1.60 | 52.7 | 2682.5 | 3352.5 | |||
| 5 | 240 | SM | 1.70 | 59.4 | 3480 | 4350 | |||
YOU MAY LIKE
Related products
-
Aluminum Conductor Products
YJLV Cable
-
Aluminum Conductor Products
AXMK PE Cable
-
Aluminum Conductor Products
E-AYY Cable
-
Aluminum Conductor Products

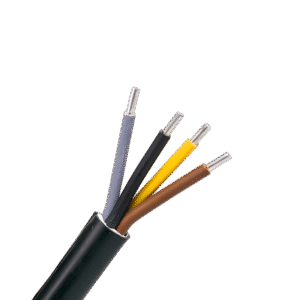

1-Ayky Cable
-
