CAAI-S Cable

CAAI-S Cable

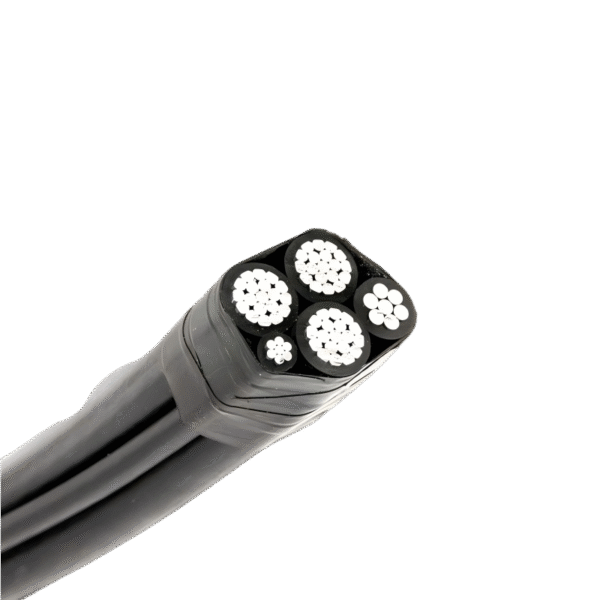

Self-Supporting Cable CAAI-S

Conductor: Stranded Round Aluminum Conductor & All Aluminum Alloy

Insulation: XLPE

Voltage: 0.6/1kV

Number of cores: 2-5 cores

Package : Export wooden drum & iron wooden drum or as customer require

Send Inquiry
CAAI-S Cables Application
The product is a new type of aerial cable for power transmission. It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting.

STANDARDS :
CAAI-S Cables Standard
IEC 60228: Conductors of insulated cables.

ASTM A 475: Zinc coated steel wire strand.

NTP-IEC 60228: Conductors of insulated cables.

NTP 370.254: Cables for overhead distribution networks self-supporting XLPE insulated of rated voltages up to and including 0.6/1 kV.
CONSTRUCTION :
CAAI Self-Supporting Aluminum Conductor Cables Construction:
Phase conductorHard drawn aluminum conductor (class 2)
Neutral messenger conductorGalvanized steel conductor
Lighting conductorHard drawn aluminum conductor (class 2)
InsulationXLPE
DESIGNATIONCAAI— Aluminum conductor with aluminum alloy support
conductors, the support conductor can be bare “ND” or insulated “NA “.

Technical Parameter

SizeApprox.
Overall Diameter		Approx.
Weight		SizeApprox.
Overall Diameter		Approx.
Weight
 mm2mmkg/km mm2mmkg/km
3×25+2×16+P3.1821.94552×16+P3.1812.5184
3×35+2×16+P3.1823.45443×70+2×35+P3.1831.21004
3×50+2×25+P3.1827.47483×95+2×16+P6.3529.61252
