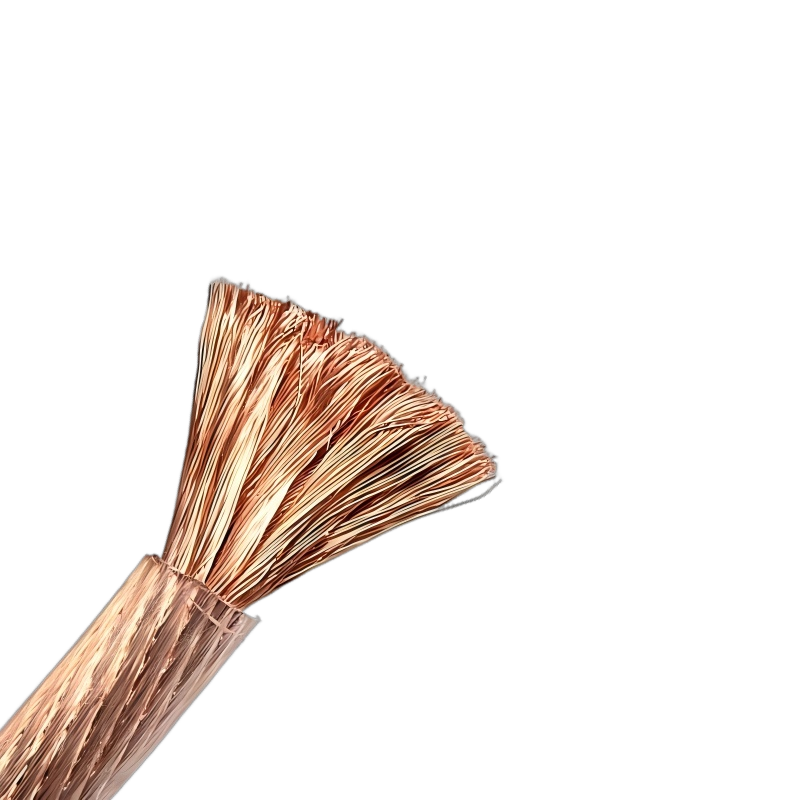

Clear Flexible Grounding Cable Earthing Copper Wire with Transparent PVC Jacket

Clear Flexible Grounding Cable Earthing Copper Wire with Transparent PVC Jacket

Conductor : Copper Conductor

Insulation : PVC

Voltage : 600V

Number of cores: Single Core

Package : 100 Meters One Roll with Export Wooden Case & Pallet

Wire Application

A transparent PVC jacketed flexible cable used for grounding jumpers installed temporarily for protective grounding of de-energized circuits

Wire Standards:

IEC 61138 ,ASTM B-172

CONSTRUCTION :

Wire Construction

Conductors: Flexible stranded soft drawn bare copper conductor, per ASTM B-172.
Insulation: Transparent polyvinyl chloride (PVC) insulation.

TECHNICAL :

Technical Data

Nominal voltage Uo/U		[V]	600 volt
Temperature range	in motion		+5°C till +70°C
Operating temperature	short circuit	°C	160
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	4
Flammability	standard		EN 60332-1-2

Size (AWG)	Stranding (No./inches)	Insulation Thickness (mils)	Diameter (inches)
2	665/0.010	95	0.54
1/0	1064/0.010	95	0.65
2/0	1323/0.010	110	0.71
4/0	2109/0.010	110	0.85
