E-A2Y Cable
Overhead power cable 0.6/1 kV with Al conductors, PE insulated
Conductor: Aluminum
Insulation: PE
Voltage: 600/1000V
Package: Export wooden drum
E-A2Y Cable Application
For distributive low overhead network in the city, pros urban and rural areas.For supply of remote facilities and villages of temporary and permanent character.For above-ground house connections.E-A2Y Cable Standard
HD 626 S1, ÖVE/ÖNORM E8200-626CONSTRUCTION :

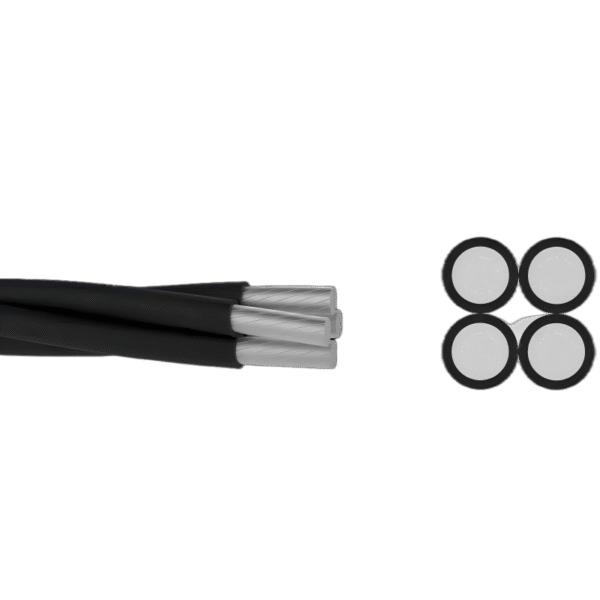

E-A2Y Cable Construction
Conductor : stranded compacted aluminiumwiresInsulation: polyethylene (PE), black
TECHNICAL :
| Nominal voltage Uo/U | [V] | 600 / 1000 volt | |
| Test voltage | [V]AC | 3500 | |
| Temperature range | in motion | -20°C till +90°C | |
| Operating temperature | short circuit | °C | 120 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | in motion | x diameter | 18 |
Technical Parameter
| Number of cores and nominal cross section | Aluminium figure | Max. overall diameter of insulation | Overall diameter appr. | Weight appr. | Current carrying capacity air |
| mm2 | kg/km | mm | kg/km | kg/km | A |
| 2 x 25 RM | 147,0 | 9 | 17,4 | 210,0 | 80 |
| 4 x 25 RM | 294,0 | 9 | 21,0 | 420,0 | 80 |
| 4 x 50 RM | 588,0 | 13 | 27,5 | 740,0 | 125 |
| 4 x 70 RM | 823,0 | 14 | 31,9 | 1.000,0 | 160 |
| 4 x 95 RM | 1.117,0 | 16 | 36,7 | 1.350,0 | 185 |
