H05Z-K H07Z-K Halogen Free Flame Retardant Cables

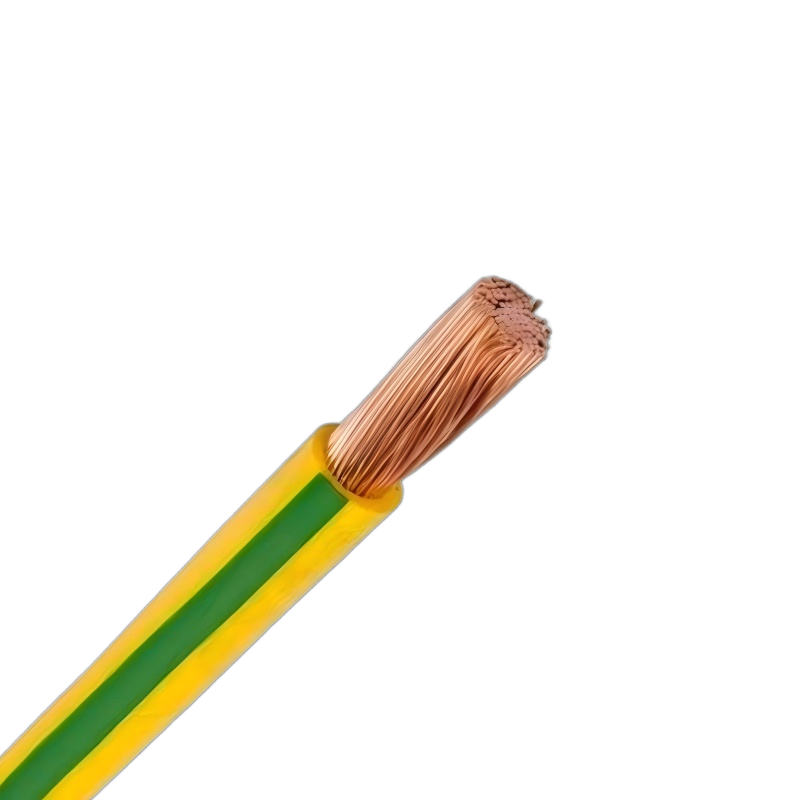

H05Z-K H07Z-K Copper Single Core Electrical Wire
Conductor : Copper Conductor ( Flexible )
Insulation : LSOH
Voltage : 450/750V
Number of cores: Single Core
Package : 100 Meters One Roll with Export Wooden Case & Pallet
Cable H05Z-K H07Z-K Application
In pipes or ducts and internal wiring of appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.Cable H05Z-K H07Z-K Standards:
HD 22.9 S2, VDE-0282 Part-9, BS 7211, IEC 60754-2, EN 50267, VDE 0482-267,CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
CONSTRUCTION :
Cable H05Z-K H07Z-K Construction

– Strands to VDE-0295 Class-5, IEC 60228 Class-5 BS 6360 cl. 5, HD 383
– Insulation
– Cross-link polyolefin EI5 core insulation
– LSOH- low smoke, zero halogen,Type EI5 thermosetting insulation according to BS EN 50363-5.
TECHNICAL :
Cable H05Z-K H07Z-K Technical Data
– Working voltage: 300/500v (H05Z-K) 450/750 (H07Z-K)– Test voltage: 2500 volts
– Flexing bending radius: 8 x Ø
– Static bending radius: 8 x Ø
– Flexing temperature: -15º C to +90º C
– Static temperature: -40º C to +90º C
– Flame retardant: IEC 60332.1
– Insulation resistance: 10 M x km
– Smoke density acc. to EN 50268 / IEC 61034
– Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
– Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1
No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
# x mm^2 | mm | mm | kg/km | KG/KM |
H05Z-K | ||||
1 x 0.5 | 0.6 | 2.3 | 4.8 | 9 |
1 x 0.75 | 0.6 | 2.5 | 7.2 | 12.4 |
1 x 1 | 0.6 | 2.6 | 9.6 | 15 |
H07Z-K | ||||
1 x 1.5 | 0,7 | 3.5 | 14.4 | 24 |
1 x 2.5 | 0.8 | 4 | 24 | 35 |
1 x 4 | 0,8 | 4.8 | 38 | 51 |
1 x 6 | 0.8 | 6 | 58 | 71 |
1 x 10 | 1,0 | 6.7 | 96 | 118 |
1 x 16 | 1,0 | 8.2 | 154 | 180 |
1 x 25 | 1,2 | 10.2 | 240 | 278 |
1 x 35 | 1,2 | 11.5 | 336 | 375 |
1 x 50 | 1,4 | 13.6 | 480 | 560 |
1 x 70 | 1,4 | 16 | 672 | 780 |
1 x 95 | 1,6 | 18.4 | 912 | 952 |
1 x 120 | 1,6 | 20.3 | 1152 | 1200 |
1 x 150 | 1,8 | 22.7 | 1440 | 1505 |
1 x 185 | 2,0 | 25.3 | 1776 | 1845 |
1 x 240 | 2,2 | 28.3 | 2304 | 2400 |
