H07Z-R Halogen Free Flame Retardant Building Wire

Cable H07Z-R Application

In pipes or ducts and internal wiring of appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.

Cable H07Z-R Standards:

HD 22.9 S2, VDE-0282 Part-9, BS 7211, IEC 60754-2, EN 50267, VDE 0482-267,
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

CONSTRUCTION :

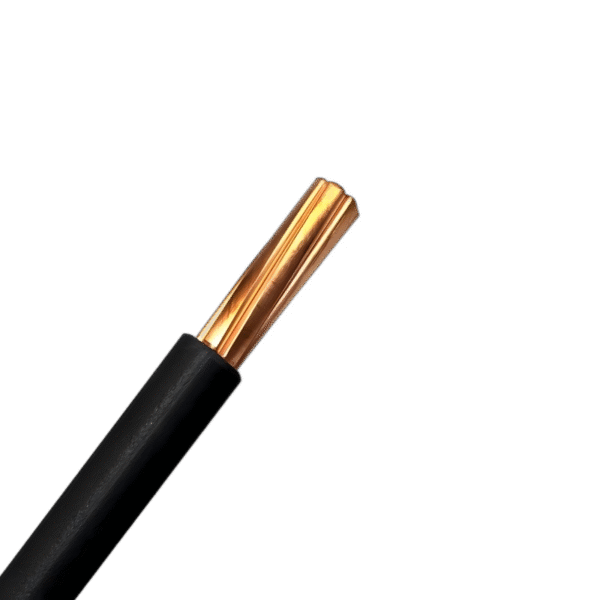

Cable H07Z-R Construction

– Fine bare copper strands
– Strands to VDE-0295 Class-2, IEC 60228
– Insulation
– Cross-link polyolefin EI5 core insulation
– LSOH- low smoke, zero halogen，Type EI5 thermosetting insulation according to BS EN 50363-5.

TECHNICAL :

Cable H07Z-R Technical Data

– Working voltage: 450/750
– Test voltage: 2500 volts
– Flexing bending radius: 8 x Ø
– Static bending radius: 8 x Ø
– Flexing temperature: -15º C to +90º C
– Static temperature: -40º C to +90º C
– Flame retardant: IEC 60332.1
– Insulation resistance: 10 M x km
– Smoke density acc. to EN 50268 / IEC 61034
– Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
– Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1

NOMINAL CROSS-SECTION	MAX. RESISTANCE AT 20°C	CURRENT CAPACITY IN THERMO ISOLATED WALL AT 30°)		CURRENT CAPACITY IN ELECTRO INSTALLATION PIPE AT 30°)		CURRENT CAPACITY ON THE WALL AT 30°)		INSULATION THICKNESS	OUTER DIAM. (APPROX.)		METAL WEIGHT	CABLE WEIGHT (APPROX.)
mm²	Ω/km	A		A		A		mm	mm		kg/km	kg/km
		2 cores	3 cores	2 cores	3 cores	2 cores	3 cores		MIN	MAX
1×1,5	13,3	19	17	23	20	24	22	0,7	2,8	3,5	14,4	22
1×2,5	7,98	26	23	31	28	33	30	0,8	3,4	4,3	24,0	34
1×4	4,95	35	31	42	37	45	40	0,8	3,9	4,9	38,4	51
1×6	3,30	45	40	54	48	58	52	0,8	4,4	5,5	57,6	72
1×10	1,910	61	54	75	66	80	71	1,0	5,7	7,1	96,0	119
1×16	1,210	81	73	100	88	107	96	1,0	6,7	8,4	153,6	181
1×25	0,780	106	95	133	117	138	119	1,2	8,4	10,6	240,0	280
1×35	0,554	131	117	164	144	171	147	1,2	9,7	12,1	336,0	383
1×50	0,386	158	141	198	175	209	179	1,4	11,5	14,4	480,0	545
1×70	0,272	200	179	235	222	269	229	1,4	13,2	16,6	672,0	747
1×95	0,206	241	216	306	269	328	278	1,6	15,1	18,8	912,0	1012
1×120	0,161	278	249	354	312	382	322	1,6	16,7	20,9	1152,0	1263
1×150	0,129	318	285	393	342	441	371	1,8	18,6	23,3	1440,0	1579
1×185	0,106	362	324	449	384	506	424	2,0	20,6	25,8	1776,0	1948
1×240	0,0801	424	380	528	450	599	500	2,2	23,5	29,4	2304,0	2519
(current capacity according to DIN VDE 0298-4)
