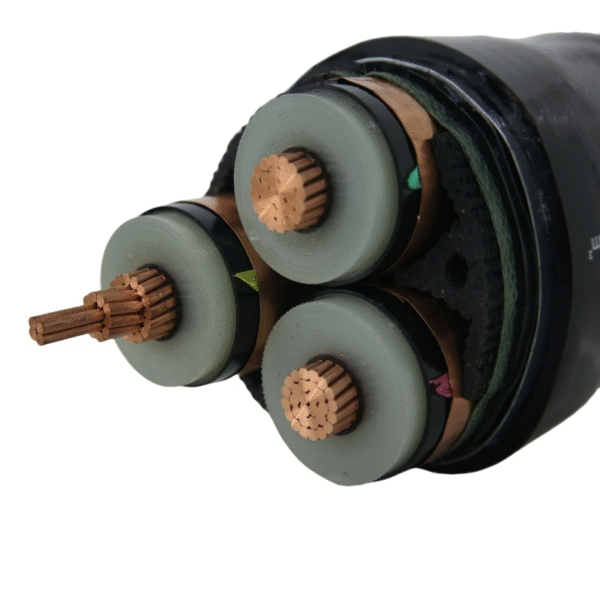

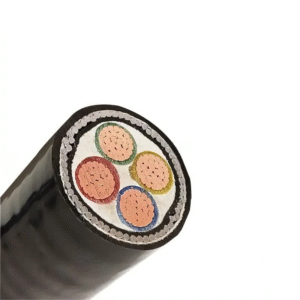

High Voltage Cables XLPE Insulated PVC Sheathed

Product usage
Suitable for indoor, tunnel, pipeline and other occasions laying, can withstand the role of pressure, and can withstand a certain traction, the cable has a reliable radial water resistance; mainly suitable for city network, underground, petrochemical, power stations, substations and other major high-voltage, ultra-high voltage transmission lines. Product model: XLPE insulated PVC sheathed copper core high voltage power cable.
Product parameters
Number of cores: 1 core

Product specifications: 240mm²–1600mm²

Product colour: can be customized

Rated voltage: 110KV

The length of the whole plate: 100m (National standard full meter)

Maximum rated working temperature of the cable conductor: 90°C

Laying temperature: The ambient temperature of the PVC sheathed cable should be not less than 0° for 24h before laying; in case of laying at lower ambient temperatures, appropriate heating measures should be taken.

Maximum rated working temperature of the cable conductor in case of short circuit (short circuit time not exceeding 5s): 250°C

Bending radius: The recommended minimum (inside) bending radius for lead-sheathed cables is 18 times the diameter of the cable, for wrinkled aluminium sheathed and metal-plastic composite sheathed cables the recommended minimum (inside) bending radius is 20 times the diameter of the cable.
