Low Voltage ABC Cable (1+1 Core)
The conductors are stranded, circular compressed or uncompressed aluminum, copper, aluminum-alloy, ACSR or ACSR/AW etc., concentrically stranded and covered for Weather or UV resistant with thermoplastic polyethylene (PE) or Cross linked polyethylene (XLPE) in black.
Application
Our Low Voltage Aerial Bundled Cable (ABC) is primarily used for overhead power distribution. It is a reliable choice for residential areas, rural electrification, and street lighting. This cable is suitable for use as a service drop from a power pole to a building or as a secondary cable between poles. Gongniu Cable’s ABC products are designed for fixed installation on overhead power lines with a voltage of 0.6/1kV.
Description

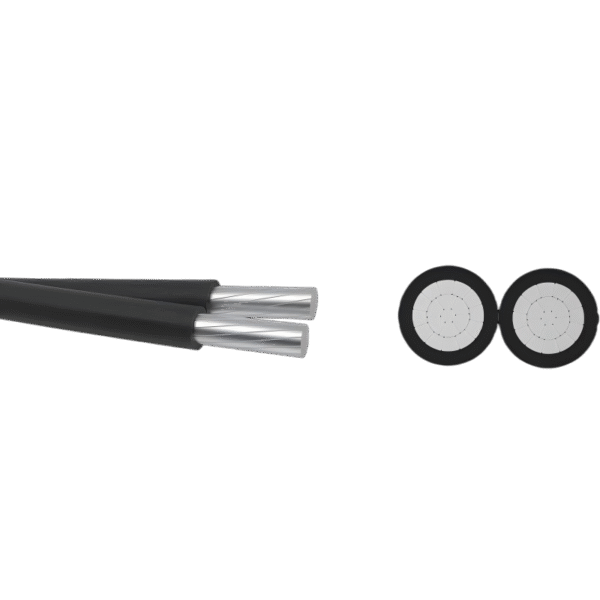

1+1 core ABC cable consists of one insulated phase conductor and one neutral conductor, which are bundled together. The conductors are made of lightweight stranded aluminum. The insulation is a black, weather-resistant, and UV-resistant cross-linked polyethylene (XLPE). This insulation provides a higher level of safety compared to bare conductors, reducing the risk of short circuits and electrical shock. Our Gongniu Cable products are easy to install and require less maintenance than traditional overhead power lines.
Specification
- Standard: NFC 33-209.
- Voltage Rating: 0.6/1kV.
- Conductor Material: Stranded Aluminum (Phase).
- Neutral Conductor: Aluminum Alloy.
- Insulation: XLPE (Cross-linked Polyethylene).
- Operating Temperature: -40°C to +90°C.
- Core Identification: The phase core is identified by longitudinal ribs on the insulation.
- Configuration: 1 Phase Core + 1 Neutral Core.
Technical Parameter

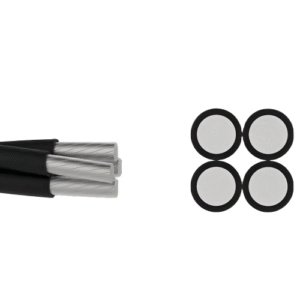

| No. of Cores and Section (mm²) | No. of Wires (No.) | Nominal Insulation Thickness (mm) | Aprrox. Diameter of Cable (mm) | Max. DC. Resistance at 20°C (Ω/km) | Aprrox. Weight (kg/km) |
|---|---|---|---|---|---|
| 2×16 | 7 | 1.2 | 14.4 | 1.91 | 131 |
| 2×25 | 7 | 1.4 | 17.6 | 1.20 | 200 |
| 2×35 | 7 | 1.6 | 20.4 | 0.868 | 273 |
| 2×50 | 7 | 1.6 | 22.6 | 0.641 | 350 |
| 2×70 | 12 | 1.8 | 26.8 | 0.443 | 495 |
| 2×95 | 19 | 1.8 | 30.4 | 0.320 | 656 |
| 2×120 | 19 | 1.8 | 32.8 | 0.253 | 799 |
| 4×16 | 7 | 1.2 | 17.4 | 1.91 | 262 |
| 4×25 | 7 | 1.4 | 21.3 | 1.20 | 399 |
| 4×35 | 7 | 1.6 | 24.7 | 0.868 | 547 |
| 4×50 | 7 | 1.6 | 27.3 | 0.641 | 699 |
| 4×70 | 12 | 1.8 | 32.4 | 0.443 | 990 |
| 4×95 | 19 | 1.8 | 36.8 | 0.320 | 1311 |
| 4×120 | 19 | 1.8 | 39.7 | 0.253 | 1597 |
| No. of Cores and Section (mm²) | No. of Wires (Phase) (No.) | No. of Wires (Neutral) (No.) | Nominal Insulation Thickness (Phase) (mm) | Nominal Insulation Thickness (Neutral) (mm) | Approx. Diameter of Cable (mm) | Max. DC. Resistance at 20°C (Phase) (Ω/km) | Max. DC. Resistance at 20°C (Neutral) (Ω/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 1×25+1×54.6 | 7 | 7 | 1.4 | 1.6 | 21.3 | 1.20 | 0.63 | 309 |
| 1×35+1×54.6 | 7 | 7 | 1.6 | 1.6 | 22.7 | 0.868 | 0.63 | 345 |
| 1×50+1×54.6 | 7 | 7 | 1.6 | 1.6 | 23.8 | 0.641 | 0.63 | 384 |
| 1×70+1×54.6 | 12 | 7 | 1.8 | 1.6 | 25.9 | 0.443 | 0.63 | 456 |
| 1×95+1×54.6 | 19 | 7 | 1.8 | 1.6 | 27.7 | 0.320 | 0.63 | 537 |
| 1×70+1×70 | 12 | 7 | 1.8 | 1.6 | 26.7 | 0.443 | 0.50 | 491 |
| 1×95+1×70 | 19 | 7 | 1.8 | 1.6 | 28.5 | 0.320 | 0.50 | 571 |
| 1×120+1×70 | 19 | 7 | 1.8 | 1.6 | 29.7 | 0.253 | 0.50 | 643 |
| 1×120+1×95 | 19 | 19 | 1.8 | 1.6 | 31.9 | 0.253 | 0.343 | 737 |
| 1×150+1×95 | 19 | 19 | 1.8 | 1.6 | 33.6 | 0.206 | 0.343 | 819 |
| 3×25+1×54.6 | 7 | 7 | 1.4 | 1.6 | 23.5 | 1.20 | 0.63 | 508 |
| 3×35+1×54.6 | 7 | 7 | 1.6 | 1.6 | 26.1 | 0.868 | 0.63 | 619 |
| 3×50+1×54.6 | 7 | 7 | 1.6 | 1.6 | 28.1 | 0.641 | 0.63 | 733 |
| 3×70+1×54.6 | 12 | 7 | 1.8 | 1.6 | 31.9 | 0.443 | 0.63 | 951 |
| 3×95+1×54.6 | 19 | 7 | 1.8 | 1.6 | 35.2 | 0.320 | 0.63 | 1192 |
| 3×70+1×70 | 12 | 7 | 1.8 | 1.6 | 32.4 | 0.443 | 0.50 | 986 |
| 3×95+1×70 | 19 | 7 | 1.8 | 1.6 | 35.6 | 0.320 | 0.50 | 1227 |
| 3×120+1×70 | 19 | 7 | 1.8 | 1.6 | 37.8 | 0.253 | 0.50 | 1441 |
| 3×120+1×95 | 19 | 19 | 1.8 | 1.6 | 39.1 | 0.253 | 0.343 | 1536 |
| 3×150+1×95 | 19 | 19 | 1.8 | 1.6 | 42.2 | 0.206 | 0.343 | 1779 |
| No. of Cores and Section (mm²) | No. of Wires (Phase) (No.) | No. of Wires (Neutral) (No.) | No. of Wires (Public Lighting) (No.) | Nominal Insulation Thickness (Phase) (mm) | Nominal Insulation Thickness (Neutral) (mm) | Nominal Insulation Thickness (Public Lighting) (mm) | Approx. Diameter of Cable (mm) | Max. DC. Resistance at 20°C (Phase) (Ω/km) | Max. DC. Resistance at 20°C (Neutral) (Ω/km) | Max. DC. Resistance at 20°C (Public Lighting) (Ω/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3×25+1×54.6+1×16 | 7 | 7 | 7 | 1.4 | 1.6 | 1.2 | 30.1 | 1.20 | 0.63 | 1.91 | 571 |
| 3×35+1×54.6+1×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 32.9 | 0.868 | 0.63 | 1.91 | 682 |
| 3×50+1×54.6+1×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 35.1 | 0.641 | 0.63 | 1.91 | 797 |
| 3×70+1×54.6+1×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 39.3 | 0.443 | 0.63 | 1.91 | 1014 |
| 3×70+1×54.6+1×25 | 12 | 7 | 7 | 1.8 | 1.6 | 1.4 | 39.3 | 0.443 | 0.63 | 1.20 | 1049 |
| 3×70+1×70+1×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 40.1 | 0.443 | 0.50 | 1.91 | 1049 |
| 3×95+1×70+1×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 43.7 | 0.320 | 0.50 | 1.91 | 1290 |
| 3×120+1×70+1×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 46.1 | 0.253 | 0.50 | 1.91 | 1504 |
| 3×120+1×95+1×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 48.3 | 0.253 | 0.343 | 1.91 | 1598 |
| 3×150+1×95+1×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 51.7 | 0.206 | 0.343 | 1.91 | 1842 |
| 3×25+1×54.6+2×16 | 7 | 7 | 7 | 1.4 | 1.6 | 1.2 | 30.1 | 1.20 | 0.63 | 1.91 | 637 |
| 3×35+1×54.6+2×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 32.9 | 0.868 | 0.63 | 1.91 | 748 |
| 3×50+1×54.6+2×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 35.1 | 0.641 | 0.63 | 1.91 | 862 |
| 3×70+1×54.6+2×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 39.3 | 0.443 | 0.63 | 1.91 | 1080 |
| 3×70+1×54.6+2×25 | 12 | 7 | 7 | 1.8 | 1.6 | 1.4 | 39.3 | 0.443 | 0.63 | 1.20 | 1148 |
| 3×70+1×70+2×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 40.1 | 0.443 | 0.50 | 1.91 | 1114 |
| 3×95+1×70+2×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 43.7 | 0.320 | 0.50 | 1.91 | 1356 |
| 3×120+1×70+2×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 46.1 | 0.253 | 0.50 | 1.91 | 1570 |
| 3×120+1×95+2×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 48.3 | 0.253 | 0.343 | 1.91 | 1664 |
| 3×150+1×95+2×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 51.7 | 0.206 | 0.343 | 1.91 |
