Low Voltage ABC Cable (3+1 Core)
NFC 33-209 insulated cable assembled with harness for overhead network, with rated voltage of 0.6/1kV
Application
Our Low Voltage Aerial Bundled Cable (ABC) is designed for 3-phase overhead power distribution. It is an excellent choice for supplying power from a utility pole to a building’s service entrance. This cable is used for fixed installations on overhead power lines with a voltage rating of 0.6/1kV. It is suitable for use in cities, towns, and rural areas. Gongniu Cable provides a reliable solution for public distribution networks and street lighting.
Description

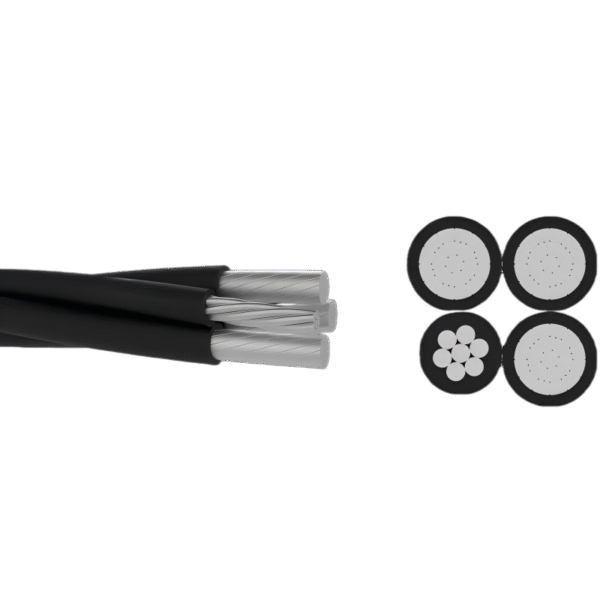

This 3+1 core ABC cable is made of three insulated phase conductors and one neutral conductor that are twisted together. The phase conductors are made of stranded aluminum, while the neutral messenger is a strong aluminum alloy. The neutral conductor supports the weight of the cable. Each conductor is insulated with black, weather and UV-resistant cross-linked polyethylene (XLPE). This insulation improves safety by protecting against accidental contact and short circuits. Gongniu Cable’s design ensures reliability and reduces maintenance needs.
Specification
- Standard: NFC 33-209.
- Voltage Rating: 0.6/1kV.
- Phase Conductor: Stranded Aluminum.
- Neutral Conductor: Aluminum Alloy (AlMgSi).
- Insulation: XLPE (Cross-linked Polyethylene).
- Operating Temperature: -30°C to +90°C.
- Core Identification: Phase cores are marked with one, two, or three longitudinal ribs.
- Configuration: 3 Phase Cores + 1 Neutral Core.
Technical Parameter
| No. of Cores and Section (mm²) | No. of Wires (No.) | Nominal Insulation Thickness (mm) | Aprrox. Diameter of Cable (mm) | Max. DC. Resistance at 20°C (Ω/km) | Aprrox. Weight (kg/km) |
|---|---|---|---|---|---|
| 2×16 | 7 | 1.2 | 14.4 | 1.91 | 131 |
| 2×25 | 7 | 1.4 | 17.6 | 1.20 | 200 |
| 2×35 | 7 | 1.6 | 20.4 | 0.868 | 273 |
| 2×50 | 7 | 1.6 | 22.6 | 0.641 | 350 |
| 2×70 | 12 | 1.8 | 26.8 | 0.443 | 495 |
| 2×95 | 19 | 1.8 | 30.4 | 0.320 | 656 |
| 2×120 | 19 | 1.8 | 32.8 | 0.253 | 799 |
| 4×16 | 7 | 1.2 | 17.4 | 1.91 | 262 |
| 4×25 | 7 | 1.4 | 21.3 | 1.20 | 399 |
| 4×35 | 7 | 1.6 | 24.7 | 0.868 | 547 |
| 4×50 | 7 | 1.6 | 27.3 | 0.641 | 699 |
| 4×70 | 12 | 1.8 | 32.4 | 0.443 | 990 |
| 4×95 | 19 | 1.8 | 36.8 | 0.320 | 1311 |
| 4×120 | 19 | 1.8 | 39.7 | 0.253 | 1597 |
| No. of Cores and Section (mm²) | No. of Wires (Phase) (No.) | No. of Wires (Neutral) (No.) | Nominal Insulation Thickness (Phase) (mm) | Nominal Insulation Thickness (Neutral) (mm) | Approx. Diameter of Cable (mm) | Max. DC. Resistance at 20°C (Phase) (Ω/km) | Max. DC. Resistance at 20°C (Neutral) (Ω/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 1×25+1×54.6 | 7 | 7 | 1.4 | 1.6 | 21.3 | 1.20 | 0.63 | 309 |
| 1×35+1×54.6 | 7 | 7 | 1.6 | 1.6 | 22.7 | 0.868 | 0.63 | 345 |
| 1×50+1×54.6 | 7 | 7 | 1.6 | 1.6 | 23.8 | 0.641 | 0.63 | 384 |
| 1×70+1×54.6 | 12 | 7 | 1.8 | 1.6 | 25.9 | 0.443 | 0.63 | 456 |
| 1×95+1×54.6 | 19 | 7 | 1.8 | 1.6 | 27.7 | 0.320 | 0.63 | 537 |
| 1×70+1×70 | 12 | 7 | 1.8 | 1.6 | 26.7 | 0.443 | 0.50 | 491 |
| 1×95+1×70 | 19 | 7 | 1.8 | 1.6 | 28.5 | 0.320 | 0.50 | 571 |
| 1×120+1×70 | 19 | 7 | 1.8 | 1.6 | 29.7 | 0.253 | 0.50 | 643 |
| 1×120+1×95 | 19 | 19 | 1.8 | 1.6 | 31.9 | 0.253 | 0.343 | 737 |
| 1×150+1×95 | 19 | 19 | 1.8 | 1.6 | 33.6 | 0.206 | 0.343 | 819 |
| 3×25+1×54.6 | 7 | 7 | 1.4 | 1.6 | 23.5 | 1.20 | 0.63 | 508 |
| 3×35+1×54.6 | 7 | 7 | 1.6 | 1.6 | 26.1 | 0.868 | 0.63 | 619 |
| 3×50+1×54.6 | 7 | 7 | 1.6 | 1.6 | 28.1 | 0.641 | 0.63 | 733 |
| 3×70+1×54.6 | 12 | 7 | 1.8 | 1.6 | 31.9 | 0.443 | 0.63 | 951 |
| 3×95+1×54.6 | 19 | 7 | 1.8 | 1.6 | 35.2 | 0.320 | 0.63 | 1192 |
| 3×70+1×70 | 12 | 7 | 1.8 | 1.6 | 32.4 | 0.443 | 0.50 | 986 |
| 3×95+1×70 | 19 | 7 | 1.8 | 1.6 | 35.6 | 0.320 | 0.50 | 1227 |
| 3×120+1×70 | 19 | 7 | 1.8 | 1.6 | 37.8 | 0.253 | 0.50 | 1441 |
| 3×120+1×95 | 19 | 19 | 1.8 | 1.6 | 39.1 | 0.253 | 0.343 | 1536 |
| 3×150+1×95 | 19 | 19 | 1.8 | 1.6 | 42.2 | 0.206 | 0.343 | 1779 |
| No. of Cores and Section (mm²) | No. of Wires (Phase) (No.) | No. of Wires (Neutral) (No.) | No. of Wires (Public Lighting) (No.) | Nominal Insulation Thickness (Phase) (mm) | Nominal Insulation Thickness (Neutral) (mm) | Nominal Insulation Thickness (Public Lighting) (mm) | Approx. Diameter of Cable (mm) | Max. DC. Resistance at 20°C (Phase) (Ω/km) | Max. DC. Resistance at 20°C (Neutral) (Ω/km) | Max. DC. Resistance at 20°C (Public Lighting) (Ω/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3×25+1×54.6+1×16 | 7 | 7 | 7 | 1.4 | 1.6 | 1.2 | 30.1 | 1.20 | 0.63 | 1.91 | 571 |
| 3×35+1×54.6+1×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 32.9 | 0.868 | 0.63 | 1.91 | 682 |
| 3×50+1×54.6+1×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 35.1 | 0.641 | 0.63 | 1.91 | 797 |
| 3×70+1×54.6+1×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 39.3 | 0.443 | 0.63 | 1.91 | 1014 |
| 3×70+1×54.6+1×25 | 12 | 7 | 7 | 1.8 | 1.6 | 1.4 | 39.3 | 0.443 | 0.63 | 1.20 | 1049 |
| 3×70+1×70+1×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 40.1 | 0.443 | 0.50 | 1.91 | 1049 |
| 3×95+1×70+1×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 43.7 | 0.320 | 0.50 | 1.91 | 1290 |
| 3×120+1×70+1×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 46.1 | 0.253 | 0.50 | 1.91 | 1504 |
| 3×120+1×95+1×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 48.3 | 0.253 | 0.343 | 1.91 | 1598 |
| 3×150+1×95+1×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 51.7 | 0.206 | 0.343 | 1.91 | 1842 |
| 3×25+1×54.6+2×16 | 7 | 7 | 7 | 1.4 | 1.6 | 1.2 | 30.1 | 1.20 | 0.63 | 1.91 | 637 |
| 3×35+1×54.6+2×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 32.9 | 0.868 | 0.63 | 1.91 | 748 |
| 3×50+1×54.6+2×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 35.1 | 0.641 | 0.63 | 1.91 | 862 |
| 3×70+1×54.6+2×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 39.3 | 0.443 | 0.63 | 1.91 | 1080 |
| 3×70+1×54.6+2×25 | 12 | 7 | 7 | 1.8 | 1.6 | 1.4 | 39.3 | 0.443 | 0.63 | 1.20 | 1148 |
| 3×70+1×70+2×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 40.1 | 0.443 | 0.50 | 1.91 | 1114 |
| 3×95+1×70+2×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 43.7 | 0.320 | 0.50 | 1.91 | 1356 |
| 3×120+1×70+2×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 46.1 | 0.253 | 0.50 | 1.91 | 1570 |
| 3×120+1×95+2×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 48.3 | 0.253 | 0.343 | 1.91 | 1664 |
| 3×150+1×95+2×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 51.7 | 0.206 | 0.343 | 1.91 |
