Low Voltage ABC Cable (4 Core)
NFC 33-209 insulated cable assembled with harness for overhead network, with rated voltage of 0.6/1kV
Application
4 Core Low Voltage Aerial Bundled Cable (ABC) is used for overhead power distribution and service connections. It’s an excellent choice for supplying power from a utility pole to a service entrance on a building. This cable is designed for three-phase power systems and is commonly used in cities, rural areas, and for outdoor lighting. This Gongniu Cable product is a self-supporting system, which makes installation simple and cost-effective.
Description
This product consists of four insulated conductors that are twisted together into a single cable. The conductors are made of stranded aluminum. In this 4-core configuration, three cores are used for the phases, and one core serves as the neutral conductor. All conductors are insulated with black XLPE (cross-linked polyethylene). This insulation is durable and resistant to sunlight and weather, providing safety and a long service life. The insulated design of Gongniu Cable’s ABC products helps to prevent short circuits caused by contact with trees or wildlife.
Specification
- Standard: NFC 33-209.
- Voltage Rating: 0.6/1kV.
- Conductor: Stranded Aluminum.
- Insulation: XLPE (Cross-linked Polyethylene).
- Operating Temperature: Maximum 90°C.
- Core Identification: Phase cores are identified by longitudinal ribs (one, two, and three ribs).
- Configuration: 4 self-supporting cores of equal cross-section.
Technical Parameter
| No. of Cores and Section (mm²) | No. of Wires (No.) | Nominal Insulation Thickness (mm) | Aprrox. Diameter of Cable (mm) | Max. DC. Resistance at 20°C (Ω/km) | Aprrox. Weight (kg/km) |
|---|---|---|---|---|---|
| 2×16 | 7 | 1.2 | 14.4 | 1.91 | 131 |
| 2×25 | 7 | 1.4 | 17.6 | 1.20 | 200 |
| 2×35 | 7 | 1.6 | 20.4 | 0.868 | 273 |
| 2×50 | 7 | 1.6 | 22.6 | 0.641 | 350 |
| 2×70 | 12 | 1.8 | 26.8 | 0.443 | 495 |
| 2×95 | 19 | 1.8 | 30.4 | 0.320 | 656 |
| 2×120 | 19 | 1.8 | 32.8 | 0.253 | 799 |
| 4×16 | 7 | 1.2 | 17.4 | 1.91 | 262 |
| 4×25 | 7 | 1.4 | 21.3 | 1.20 | 399 |
| 4×35 | 7 | 1.6 | 24.7 | 0.868 | 547 |
| 4×50 | 7 | 1.6 | 27.3 | 0.641 | 699 |
| 4×70 | 12 | 1.8 | 32.4 | 0.443 | 990 |
| 4×95 | 19 | 1.8 | 36.8 | 0.320 | 1311 |
| 4×120 | 19 | 1.8 | 39.7 | 0.253 | 1597 |
| No. of Cores and Section (mm²) | No. of Wires (Phase) (No.) | No. of Wires (Neutral) (No.) | Nominal Insulation Thickness (Phase) (mm) | Nominal Insulation Thickness (Neutral) (mm) | Approx. Diameter of Cable (mm) | Max. DC. Resistance at 20°C (Phase) (Ω/km) | Max. DC. Resistance at 20°C (Neutral) (Ω/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 1×25+1×54.6 | 7 | 7 | 1.4 | 1.6 | 21.3 | 1.20 | 0.63 | 309 |
| 1×35+1×54.6 | 7 | 7 | 1.6 | 1.6 | 22.7 | 0.868 | 0.63 | 345 |
| 1×50+1×54.6 | 7 | 7 | 1.6 | 1.6 | 23.8 | 0.641 | 0.63 | 384 |
| 1×70+1×54.6 | 12 | 7 | 1.8 | 1.6 | 25.9 | 0.443 | 0.63 | 456 |
| 1×95+1×54.6 | 19 | 7 | 1.8 | 1.6 | 27.7 | 0.320 | 0.63 | 537 |
| 1×70+1×70 | 12 | 7 | 1.8 | 1.6 | 26.7 | 0.443 | 0.50 | 491 |
| 1×95+1×70 | 19 | 7 | 1.8 | 1.6 | 28.5 | 0.320 | 0.50 | 571 |
| 1×120+1×70 | 19 | 7 | 1.8 | 1.6 | 29.7 | 0.253 | 0.50 | 643 |
| 1×120+1×95 | 19 | 19 | 1.8 | 1.6 | 31.9 | 0.253 | 0.343 | 737 |
| 1×150+1×95 | 19 | 19 | 1.8 | 1.6 | 33.6 | 0.206 | 0.343 | 819 |
| 3×25+1×54.6 | 7 | 7 | 1.4 | 1.6 | 23.5 | 1.20 | 0.63 | 508 |
| 3×35+1×54.6 | 7 | 7 | 1.6 | 1.6 | 26.1 | 0.868 | 0.63 | 619 |
| 3×50+1×54.6 | 7 | 7 | 1.6 | 1.6 | 28.1 | 0.641 | 0.63 | 733 |
| 3×70+1×54.6 | 12 | 7 | 1.8 | 1.6 | 31.9 | 0.443 | 0.63 | 951 |
| 3×95+1×54.6 | 19 | 7 | 1.8 | 1.6 | 35.2 | 0.320 | 0.63 | 1192 |
| 3×70+1×70 | 12 | 7 | 1.8 | 1.6 | 32.4 | 0.443 | 0.50 | 986 |
| 3×95+1×70 | 19 | 7 | 1.8 | 1.6 | 35.6 | 0.320 | 0.50 | 1227 |
| 3×120+1×70 | 19 | 7 | 1.8 | 1.6 | 37.8 | 0.253 | 0.50 | 1441 |
| 3×120+1×95 | 19 | 19 | 1.8 | 1.6 | 39.1 | 0.253 | 0.343 | 1536 |
| 3×150+1×95 | 19 | 19 | 1.8 | 1.6 | 42.2 | 0.206 | 0.343 | 1779 |
| No. of Cores and Section (mm²) | No. of Wires (Phase) (No.) | No. of Wires (Neutral) (No.) | No. of Wires (Public Lighting) (No.) | Nominal Insulation Thickness (Phase) (mm) | Nominal Insulation Thickness (Neutral) (mm) | Nominal Insulation Thickness (Public Lighting) (mm) | Approx. Diameter of Cable (mm) | Max. DC. Resistance at 20°C (Phase) (Ω/km) | Max. DC. Resistance at 20°C (Neutral) (Ω/km) | Max. DC. Resistance at 20°C (Public Lighting) (Ω/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3×25+1×54.6+1×16 | 7 | 7 | 7 | 1.4 | 1.6 | 1.2 | 30.1 | 1.20 | 0.63 | 1.91 | 571 |
| 3×35+1×54.6+1×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 32.9 | 0.868 | 0.63 | 1.91 | 682 |
| 3×50+1×54.6+1×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 35.1 | 0.641 | 0.63 | 1.91 | 797 |
| 3×70+1×54.6+1×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 39.3 | 0.443 | 0.63 | 1.91 | 1014 |
| 3×70+1×54.6+1×25 | 12 | 7 | 7 | 1.8 | 1.6 | 1.4 | 39.3 | 0.443 | 0.63 | 1.20 | 1049 |
| 3×70+1×70+1×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 40.1 | 0.443 | 0.50 | 1.91 | 1049 |
| 3×95+1×70+1×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 43.7 | 0.320 | 0.50 | 1.91 | 1290 |
| 3×120+1×70+1×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 46.1 | 0.253 | 0.50 | 1.91 | 1504 |
| 3×120+1×95+1×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 48.3 | 0.253 | 0.343 | 1.91 | 1598 |
| 3×150+1×95+1×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 51.7 | 0.206 | 0.343 | 1.91 | 1842 |
| 3×25+1×54.6+2×16 | 7 | 7 | 7 | 1.4 | 1.6 | 1.2 | 30.1 | 1.20 | 0.63 | 1.91 | 637 |
| 3×35+1×54.6+2×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 32.9 | 0.868 | 0.63 | 1.91 | 748 |
| 3×50+1×54.6+2×16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 35.1 | 0.641 | 0.63 | 1.91 | 862 |
| 3×70+1×54.6+2×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 39.3 | 0.443 | 0.63 | 1.91 | 1080 |
| 3×70+1×54.6+2×25 | 12 | 7 | 7 | 1.8 | 1.6 | 1.4 | 39.3 | 0.443 | 0.63 | 1.20 | 1148 |
| 3×70+1×70+2×16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 40.1 | 0.443 | 0.50 | 1.91 | 1114 |
| 3×95+1×70+2×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 43.7 | 0.320 | 0.50 | 1.91 | 1356 |
| 3×120+1×70+2×16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 46.1 | 0.253 | 0.50 | 1.91 | 1570 |
| 3×120+1×95+2×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 48.3 | 0.253 | 0.343 | 1.91 | 1664 |
| 3×150+1×95+2×16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 51.7 | 0.206 | 0.343 | 1.91 |
YOU MAY LIKE
Related products
-
ABC Cable

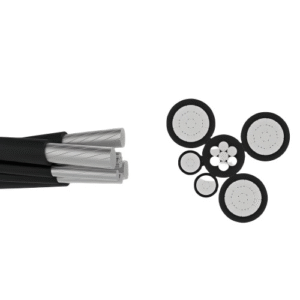

Low Voltage ABC Cable (3+1+2 Core)
-
ABC Cable

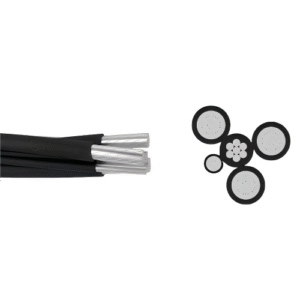

Low Voltage ABC Cable (3+1+1 Core)
-
ABC Cable

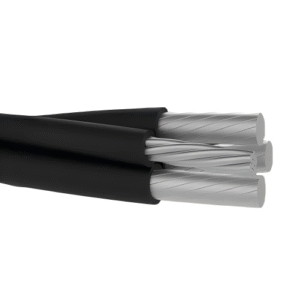

Low Voltage ABC Cable (3+1 Core)
-
ABC Cable

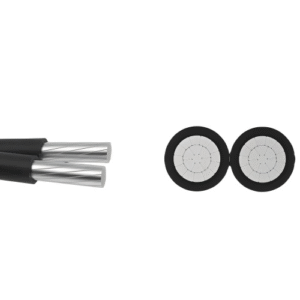

Low Voltage ABC Cable (1+1 Core)
