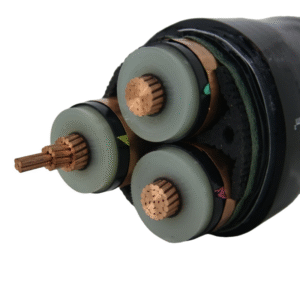

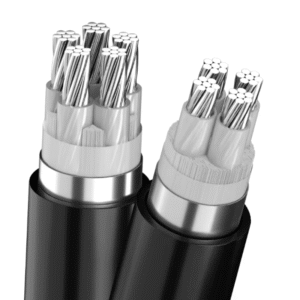

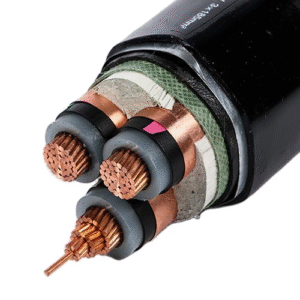

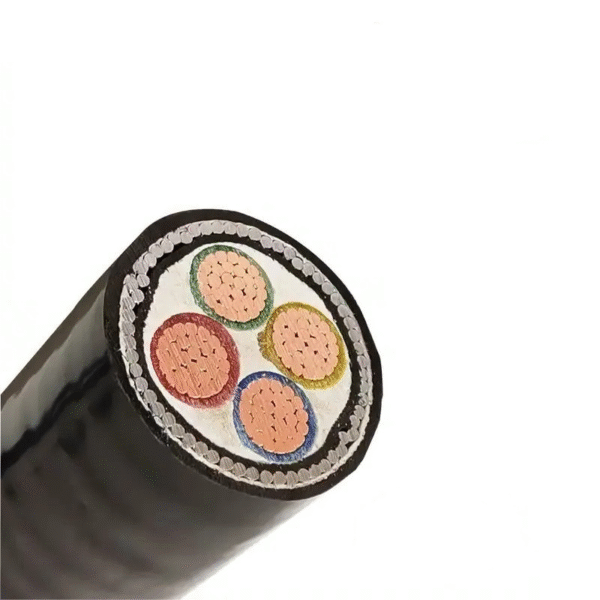

Low Voltage XLPE Insulated PVC Sheathed Cables

Product Description

Rated voltage 0.6/1kV insulated power cable is suitable for use in power systems of 1kV and below, and can be used in transmission systems and distribution systems as a carrier for power transmission.

Flame-retardant power cables have the characteristics of ordinary plastic power cables, but also have the characteristics of not easily catching fire or catching fire and delaying combustion only within a certain range, especially suitable for fire alarm, firefighting facilities, emergency evacuation and other fire emergency system distribution.

Halogen-free, low-smoke, flame-retardant power cables have the characteristics of ordinary plastic force cables and ordinary flame-retardant cables, but also have the characteristics of no halogen acid gas release when the cable is on fire, less smoke, less corrosive gas generation and good flame-retardant performance, etc. They are especially suitable for fire alarm, firefighting facilities, emergency evacuation and other fire emergency system distribution.

Product model: XLPE insulated PVC sheathed copper core low voltage power cable

Number of product cores: 1-5 cores

Product specifications: 1.5mm²–500mm²

Product colour: red, yellow, blue, green, black; other colours can be customized

Rated voltage: 0.6/1KV

The length of the whole plate: 100m (national standard full meter)

Maximum conductor temperature during normal operation: 70°C for PVC insulation, 90°C for XLPE insulation.

Installation and laying temperature: The installation and laying temperature of the cable should be not lower than 0C.

Maximum temperature of the cable conductor during short circuit (maximum duration not exceeding 5 seconds): PVC insulation – 160°C for conductor cross-section ≤ 300 mm2, 140°C for conductor cross-section > 300 mm2; 250°C for XLPE insulation.

Scope of application: This product is suitable for use in lines with an AC rated voltage U0/U of 0.6/1kV for transmission and distribution lines.

Minimum bending radius allowed: Single-core cable: 20D without armour, 15D with armour Multi-core cable: 15D without armour, 12D with armour Where: D – actual outer diameter of the cable.
