LVAV Cable

0.6/1kv PVC Insulated Steel Tape Armoured Aluminum Cable

Conductor: Aluminum

Insulation: PVC

Armour: Galvansized steel tape armoured

Sheath: PVC

Voltage : 600/1000V

LVAV Cable Application

Cable for transport and distribution of energy, stipulated voltage 0.6/1 kV.Indicated for outdoor installations, directly buried, or installations where it is necessary to protect the cable from crushing efforts, impact or against attack by rodents.

LVAV Cable Standard

IEC 605 02-1; HD 603-40

CONSTRUCTION :

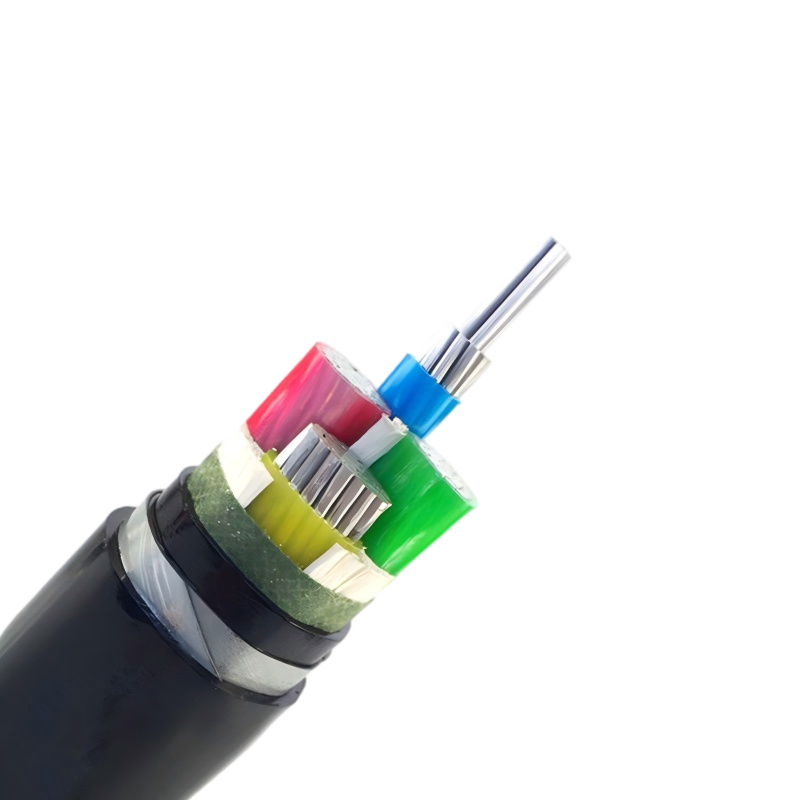

LVAV Cable Construction

Conductor:L-Aluminum conductor ( class 2 ) , stranded circular or shaped

Insulation : Polyvinyl chloride (PVC), Type A

Inner coverning : PolyPolyvinyl chloride (PVC)

Armoued : Double galvansied steel tape armoured

TECHNICAL :

LVAV Cable Technical Data

Stupulated voltage U0/U 0.6/1 kV

Test voltage 3.5 kV a.c. 5 minutes

Maximum temperature of the conductor in steady state 70ºC

Maximum temperature of the conductor in short-circuit condition 160ºC (t≤5s)

Minimum bending radius at installation (mm) 12 xd

Maximum pulling effort (N) with sleeve on conductors: 30 x S

Nominal cross sectional area	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor(20℃)	Current carrying capacity
mm2	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
316+110	23.5	711	1.91/3.08	51	71
325+116	27.2	937	1.2/1.91	66	92
335+116	28.4	1057	0.868/1.91	81	110
350+125	32.8	1378	0.641/1.2	98	130
370+135	38.0	2123	0.443/0.868	120	160
395+150	43.0	2673	0.32/0.641	150	195
3120+170	47.3	3221	0.253/0.443	180	225
3150+170	51.0	3703	0.206/0.443	205	250
3185+195	56.2	4472	0.164/0.32	235	285
3240+1120	62.7	5540	0.125/0.253	280	330
3300+1150	68.9	6643	0.1/0.206	320	370
