LXAV Cable

LXAV Cable Application

Armored cables for power distribution. Suitable for outdoor fixed installations when it is necessary to protect the cable against mechanical aggression or against rodent’s threat, impact or crushing. Can be installed in ducts, or directly buried. Excellent mechanical protection during laying, installation and service.

LXAV Cable Standard:

IEC 60502-1 IEC 60332-1

CONSTRUCTION :

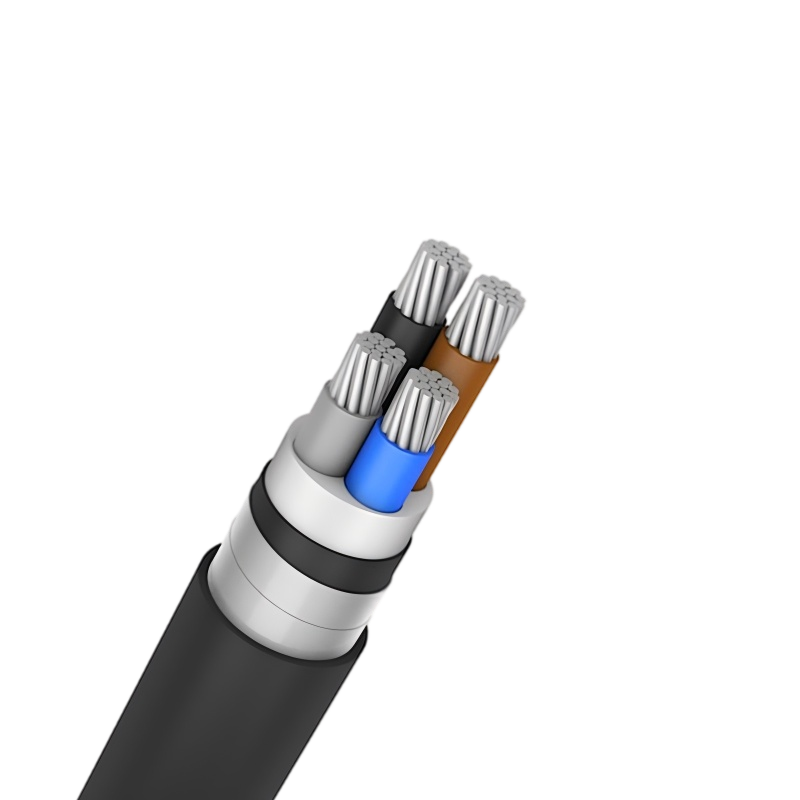

LXAV Cable Construction

Conductor: Stranded class 2, circular or sector-shaped to IEC 60228

Insulation: Cross-linked polyethylene, to IEC 60502-1 Identification by colour to HD 308.S2

Armour bedding: Black extruded PVC separation sheath.

Armour: Double steel or aluminium tape armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable. Steel tape is used in the multicore cables.

Outer sheath: Flexible PVC outer sheath, Black colour.

The standard identification of insulated conductors is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Green/Yellow

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 G Brown + Black + Grey + Green/Yellow

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Green/Yellow

6 or more Black numbered + Green/Yellow

CHARACTERISTICS :

LXAV Cable Characteristics

Electrical performance: Low voltage 0,6/1kV.
Test Voltage：3,5 kV a.c. (5 min.)

Thermal performance:

Maximum service temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance:

Flame non-propagation according to EN 60332-1 and IEC 60332-1.

Reduced halogen emission. Chlorine <15%.

Reaction to fire CPR: Eca, according to EN 50575.

Cross Section	Insulation thickness	Amour thickness	Minimum Sheath thickness	Maximum Overall diameter	Approx Cable weight
mm^2	mm	mm	mm	mm	kg/km
2×10	0.7	0.2	1.4	18.5	420
2×16	0.7	0.2	1.5	20.5	540
2×25	0.9	0.2	1.6	24.5	760
2×35	0.9	0.2	1.7	27	930
3×10	0.7	0.2	1.5	19	470
3×16	0.7	0.2	1.5	22	590
3×25	0.9	0.2	1.6	26	830
3×35	0.9	0.2	1.7	29	1030
3×50	0.9	0.2	1.8	32.5	1290
3×70	1.1	0.2	2	37.5	1710
3×95	1.1	0.5	2.1	43.5	2610
3×120	1.2	0.5	2.3	47.5	3110
3×150	1.4	0.5	2.4	53	3770
3×185	1.6	0.5	2.5	58	4540
3×240	1.7	0.5	2.7	65.5	5620
3×300	1.8	0.5	2.9	72	6830
3×50+35	1.0/09	0.2	1.9	34.5	1500
3×70+50	1.1/0.9	0.2	2	40	2000
3×95+50	1.1/1.0	0.5	2.2	45	2870
3×120+70	1.2/1.1	0.5	2.3	50	3460
3×150+70	1.4/1.1	0.5	2.5	54	4090
3×185+70	1.6/1.1	0.5	2.6	59	4980
3×240+95	1.7/1.1	0.5	2.8	66	6210
4×10	0.7	0.2	1.5	20.5	540
4×16	0.7	0.2	1.6	23.5	700
4×25	0.9	0.2	1.7	28	1000
4×35	0.9	0.2	1.8	31.5	1230
4×50	1	0.2	1.9	35.5	1550
4×70	1.1	0.5	2.1	42.5	2490
4×95	1.1	0.5	2.3	47.5	3120
4×120	1.2	0.5	2.4	53	3780
4×150	1.4	0.5	2.6	58.5	4550
4×185	1.6	0.5	2.7	64.5	5490
4×240	1.7	0.5	2.9	72.5	6860
4×300	1.8	0.5	3.1	79.5	8250
5×10	0.7	0.2	1.6	22.5	640
