LXS Cable

Aluminium Overhead Aerial Cable Left-Hand Outer Layer Stranding Direction 0.6/1kV

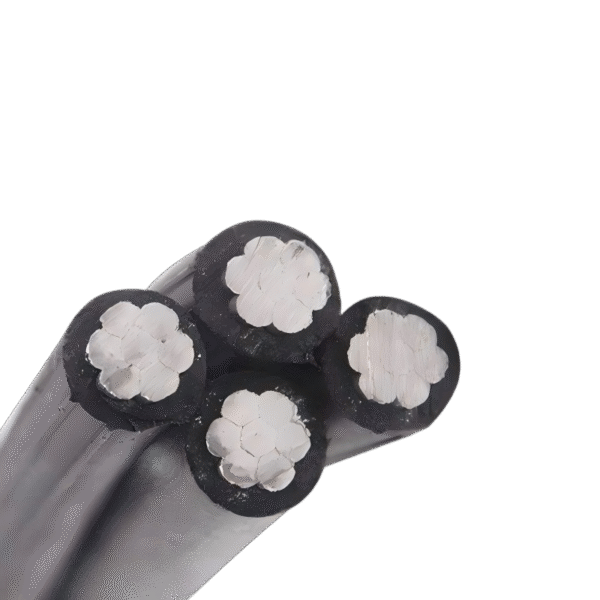

Name: LXS Aluminium Overhead Aerial Bundle Cable 0.6/1kV

Conductor : Aluminum Conductor

Insulation : XLPE

Voltage : 0.6/1kV

Number of cores: 2-5 cores

Package : Export wooden drum & iron wooden drum or as customer require

LXS Cable Application

Cables for overhead power distribution systems mainly for public distribution. Outdoor installation in overhead lines tightened between supports, lines attached to façades. Excellent resistance to external agents. Not suitable for installation directly underground.

LXS Cable Standard

NP 3528 / HD 626
DMA C33-209
IEC 60754-1 EN 60754-1

CONSTRUCTION :

Lxs Cable Construction

Phase conductors and public lighting conductors
Aluminium: stranded class 2.
Outer layer stranding direction: Left-hand (S)

Insulation
XLPE – (Cross-linked polyethylene).

Assembly of cores

Cores are laid-up helically.
For cables having a messenger, the phase and auxiliary cores are cabled helically around it
Stranding direction: Right-hand (Z)

SPECIFICATION :

LXS Cable Specification

Specifications
Permissible heating temperature of current-carrying conductors during overload mode (up to 8 hours per day)	130°С
Permissible heating temperature of current-carrying conductors in case of short circuit with short circuit current flow up to 5 seconds	250°С
Operating temperature	-60 °С to +50 °С
Minimum wire laying temperature	-20 °С
Long-term permissible core heating temperature	+90 °С
Minimum bending radius when laying	10 wire diameters
Minimum service life	25 years

Technical Parameter

Cross Section	Nominal overall diameter	Nominal weight	Minimum bending radius	Maximum current rating Air 30 ºC
No x mm2	mm	kg/km	mm	A
2×16	15,0	136	70	85
3×16	16,0	204	70	75
4×16	18,0	272	70	75
5×16	21,0	325	84	75
4×25	18,5	407	85	97
4×25+16	19,0	475	85	100
4×25+2×16	21,0	527	88	100
4×35	24,7	549	95	120
4×35+16	26,0	612	100	120
4×35+2×16	28,0	677	135	120
4×50	29,5	714	130	150
4×50+16	30,5	782	135	150
4×50+2×16	32,0	782	135	150
4×70	31,0	892	150	190
4×70+16	33,0	1.090	160	190
4×70+2×16	35,0	1.090	160	190
4×95+16	39,0	1.404	170	230
