Application
These power cables are the new generation of cables forpublic medium voltage distribution–HTA. Used for direct installation on the ground, water, outdoors, indoors and in cable ducts.
Description
The cable is made of 1 or 3 bunched cores.
The longitudinal seal is provided by a swelling powder.
Construction
Specification
IEC 60228 Conductors of insulate cables
NFC 33-226 Câbles isolés et leurs accessoires pour réseaux d’énergie Câbles de tensions assignées comprises entre 6/10(12) kV et 18/30(36) kV, isolés au polyéthylène réticulé à gradient fixé, pour réseaux de distribution
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) – Part 2:Cables for rated voltages of 6kV(Um=7.2kV) and 30 kV(Um=36kV)
Chaircteritics
● Maximum conductor temperature in normal operation:90˚C.
● Short circuit temperature ( 5 seconds maximum duration ): Shall not exceed 250˚C.
● Ambient installation temperature, range: -10 ~ 50 ˚C.
● Weather resistance: AN3/AF2
● Water proof: AD8
● Mechanical resistance to impacts: AG4
● Minimum bending radius:
Note:D is overall diameter of cable.
These power cables are the new generation of cables forpublic medium voltage distribution–HTA. Used for direct installation on the ground, water, outdoors, indoors and in cable ducts.
Description
The cable is made of 1 or 3 bunched cores.
The longitudinal seal is provided by a swelling powder.

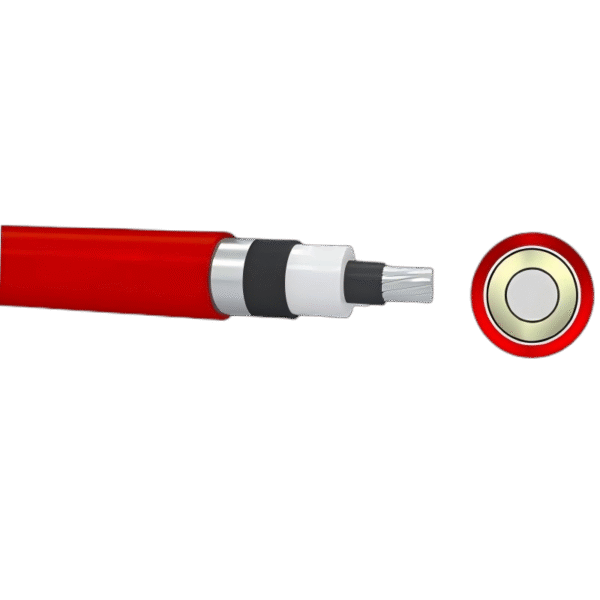

Construction
- Conductor ：Aluminum or copper, class 2,circular compacted conductors ● Conductor screen: Non-metallic,semi-conducting compound ● Insulation:Cross-linked polyethylene(XLPE) ● Insulation screen:Non-metallic,semi-conducting compound,extruded strippable grooved elastomer ● Longitudinal water tightness: Swelling powder ● Metallic screen: Aluminium plastic tape (AL/PET) ● Outer sheath: Polyethylene (PE)
Specification
IEC 60228 Conductors of insulate cables
NFC 33-226 Câbles isolés et leurs accessoires pour réseaux d’énergie Câbles de tensions assignées comprises entre 6/10(12) kV et 18/30(36) kV, isolés au polyéthylène réticulé à gradient fixé, pour réseaux de distribution
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) – Part 2:Cables for rated voltages of 6kV(Um=7.2kV) and 30 kV(Um=36kV)
Chaircteritics
● Maximum conductor temperature in normal operation:90˚C.
● Short circuit temperature ( 5 seconds maximum duration ): Shall not exceed 250˚C.
● Ambient installation temperature, range: -10 ~ 50 ˚C.
● Weather resistance: AN3/AF2
● Water proof: AD8
● Mechanical resistance to impacts: AG4
● Minimum bending radius:
| Items | Single-core Cables | Triplex Cables |
| During installation | 20D | 15D |
| After installation | 15D | 10D |
Technical Parameter
| No. of cores and nominal cross section | Min.Number of wires | Nominal insulation thickness | Nominal AL/PET tape thickness | Nominal sheath thickness | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor at 20℃ |
| mm² | No. | mm | mm | mm | mm | kg/km | Ω/km |
| 6/10(12)kV | |||||||
| 1×50 | 6 | 3.4 | 0.20 | 2.0 | 23.1 | 546 | 0.641 |
| 1×70 | 12 | 3.4 | 0.20 | 2.0 | 24.8 | 646 | 0.443 |
| 1×95 | 15 | 3.4 | 0.20 | 2.0 | 26.6 | 762 | 0.320 |
| 1×120 | 15 | 3.4 | 0.20 | 2.0 | 27.8 | 858 | 0.253 |
| 1×150 | 15 | 3.4 | 0.20 | 2.0 | 29.3 | 967 | 0.206 |
| 1×185 | 30 | 3.4 | 0.20 | 2.0 | 31.0 | 1109 | 0.164 |
| 1×240 | 30 | 3.4 | 0.20 | 2.0 | 33.3 | 1324 | 0.125 |
| 1×300 | 30 | 3.4 | 0.20 | 2.0 | 35.5 | 1545 | 0.100 |
| 1×400 | 53 | 3.4 | 0.20 | 2.2 | 38.6 | 1878 | 0.0778 |
| 1×500 | 53 | 3.4 | 0.20 | 2.2 | 42.1 | 2262 | 0.0605 |
| 1×630 | 53 | 3.4 | 0.20 | 2.4 | 46.2 | 2782 | 0.0469 |
| 8.7/15(17.5)kV | |||||||
| 1×50 | 6 | 4.5 | 0.20 | 2.0 | 25.5 | 641 | 0.641 |
| 1×70 | 12 | 4.5 | 0.20 | 2.0 | 27.2 | 747 | 0.443 |
| 1×95 | 15 | 4.5 | 0.20 | 2.0 | 29.0 | 870 | 0.320 |
| 1×120 | 15 | 4.5 | 0.20 | 2.0 | 30.2 | 969 | 0.253 |
| 1×150 | 15 | 4.5 | 0.20 | 2.0 | 31.7 | 1085 | 0.206 |
| 1×185 | 30 | 4.5 | 0.20 | 2.0 | 33.4 | 1232 | 0.164 |
| 1×240 | 30 | 4.5 | 0.20 | 2.1 | 35.9 | 1470 | 0.125 |
| 1×300 | 30 | 4.5 | 0.20 | 2.1 | 38.1 | 1700 | 0.100 |
| 1×400 | 53 | 4.5 | 0.20 | 2.2 | 41.0 | 2029 | 0.0778 |
| 1×500 | 53 | 4.5 | 0.20 | 2.3 | 44.7 | 2444 | 0.0605 |
| 1×630 | 53 | 4.5 | 0.20 | 2.4 | 48.6 | 2960 | 0.0469 |
| 12/20(24)kV | |||||||
| 1×50 | 6 | 5.5 | 0.20 | 2.0 | 27.7 | 735 | 0.641 |
| 1×70 | 12 | 5.5 | 0.20 | 2.0 | 29.4 | 847 | 0.443 |
| 1×95 | 15 | 5.5 | 0.20 | 2.0 | 31.2 | 975 | 0.320 |
| 1×120 | 15 | 5.5 | 0.20 | 2.0 | 32.4 | 1079 | 0.253 |
| 1×150 | 15 | 5.5 | 0.20 | 2.0 | 33.9 | 1199 | 0.206 |
| 1×185 | 30 | 5.5 | 0.20 | 2.0 | 35.6 | 1353 | 0.164 |
| 1×240 | 30 | 5.5 | 0.20 | 2.1 | 38.1 | 1599 | 0.125 |
| 1×300 | 30 | 5.5 | 0.20 | 2.2 | 40.5 | 1853 | 0.100 |
| 1×400 | 53 | 5.5 | 0.20 | 2.3 | 43.4 | 2192 | 0.0778 |
| 1×500 | 53 | 5.5 | 0.20 | 2.4 | 47.1 | 2621 | 0.0605 |
| 1×630 | 53 | 5.5 | 0.20 | 2.5 | 51.0 | 3152 | 0.0469 |
| 18/30(36)kV | |||||||
| 1×50 | 6 | 8.0 | 0.20 | 2.0 | 32.7 | 973 | 0.641 |
| 1×70 | 12 | 8.0 | 0.20 | 2.0 | 34.4 | 1097 | 0.443 |
| 1×95 | 15 | 8.0 | 0.20 | 2.1 | 36.4 | 1254 | 0.320 |
| 1×120 | 15 | 8.0 | 0.20 | 2.1 | 37.6 | 1366 | 0.253 |
| 1×150 | 15 | 8.0 | 0.20 | 2.2 | 39.3 | 1514 | 0.206 |
| 1×185 | 30 | 8.0 | 0.20 | 2.2 | 41.0 | 1682 | 0.164 |
| 1×240 | 30 | 8.0 | 0.20 | 2.3 | 43.5 | 1948 | 0.125 |
| 1×300 | 30 | 8.0 | 0.20 | 2.4 | 45.9 | 2223 | 0.100 |
| 1×400 | 53 | 8.0 | 0.20 | 2.5 | 48.8 | 2586 | 0.0778 |
| 1×500 | 53 | 8.0 | 0.20 | 2.6 | 52.5 | 3046 | 0.0605 |
| 1×630 | 53 | 8.0 | 0.20 | 2.7 | 56.4 | 3609 | 0.0469 |
| No. of cores and nominal cross section | Min.Number of wires | Nominal insulation thickness | Nominal AL/PET tape thickness | Nominal sheath thickness | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor at 20℃ |
| mm² | No. | mm | mm | mm | mm | kg/km | Ω/km |
| 6/10(12)kV | |||||||
| 3×1×50 | 6 | 3.4 | 0.20 | 2.0 | 49.9 | 1596 | 0.641 |
| 3×1×70 | 12 | 3.4 | 0.20 | 2.0 | 53.6 | 1893 | 0.443 |
| 3×1×95 | 15 | 3.4 | 0.20 | 2.0 | 57.5 | 2240 | 0.320 |
| 3×1×120 | 15 | 3.4 | 0.20 | 2.0 | 60.0 | 2525 | 0.253 |
| 3×1×150 | 15 | 3.4 | 0.20 | 2.0 | 63.3 | 2854 | 0.206 |
| 3×1×185 | 30 | 3.4 | 0.20 | 2.0 | 67.0 | 3316 | 0.164 |
| 3×1×240 | 30 | 3.4 | 0.20 | 2.0 | 71.9 | 4003 | 0.125 |
| 3×1×300 | 30 | 3.4 | 0.20 | 2.0 | 76.7 | 4673 | 0.100 |
| 3×1×400 | 53 | 3.4 | 0.20 | 2.2 | 83.4 | 5678 | 0.0778 |
| 3×1×500 | 53 | 3.4 | 0.20 | 2.2 | 90.9 | 6842 | 0.0605 |
| 3×1×630 | 53 | 3.4 | 0.20 | 2.4 | 99.8 | 8412 | 0.0469 |
| 8.7/15(17.5)kV | |||||||
| 3×1×50 | 6 | 4.5 | 0.20 | 2.0 | 55.1 | 1939 | 0.641 |
| 3×1×70 | 12 | 4.5 | 0.20 | 2.0 | 58.8 | 2259 | 0.443 |
| 3×1×95 | 15 | 4.5 | 0.20 | 2.0 | 62.6 | 2630 | 0.320 |
| 3×1×120 | 15 | 4.5 | 0.20 | 2.0 | 65.2 | 2931 | 0.253 |
| 3×1×150 | 15 | 4.5 | 0.20 | 2.0 | 68.5 | 3280 | 0.206 |
| 3×1×185 | 30 | 4.5 | 0.20 | 2.0 | 72.1 | 3727 | 0.164 |
| 3×1×240 | 30 | 4.5 | 0.20 | 2.1 | 77.5 | 4445 | 0.125 |
| 3×1×300 | 30 | 4.5 | 0.20 | 2.1 | 82.3 | 5141 | 0.100 |
| 3×1×400 | 53 | 4.5 | 0.20 | 2.2 | 88.6 | 6135 | 0.0778 |
| 3×1×500 | 53 | 4.5 | 0.20 | 2.3 | 96.6 | 7391 | 0.0605 |
| 3×1×630 | 53 | 4.5 | 0.20 | 2.4 | 105.0 | 8952 | 0.0469 |
| 12/20(24)kV | |||||||
| 3×1×50 | 6 | 5.5 | 0.20 | 2.0 | 59.8 | 2223 | 0.641 |
| 3×1×70 | 12 | 5.5 | 0.20 | 2.0 | 63.5 | 2560 | 0.443 |
| 3×1×95 | 15 | 5.5 | 0.20 | 2.0 | 67.4 | 2949 | 0.320 |
| 3×1×120 | 15 | 5.5 | 0.20 | 2.0 | 70.0 | 3263 | 0.253 |
| 3×1×150 | 15 | 5.5 | 0.20 | 2.0 | 73.2 | 3626 | 0.206 |
| 3×1×185 | 30 | 5.5 | 0.20 | 2.0 | 76.9 | 4090 | 0.164 |
| 3×1×240 | 30 | 5.5 | 0.20 | 2.1 | 82.3 | 4834 | 0.125 |
| 3×1×300 | 30 | 5.5 | 0.20 | 2.2 | 87.5 | 5602 | 0.100 |
| 3×1×400 | 53 | 5.5 | 0.20 | 2.3 | 93.7 | 6629 | 0.0778 |
| 3×1×500 | 53 | 5.5 | 0.20 | 2.4 | 101.7 | 7927 | 0.0605 |
| 3×1×630 | 53 | 5.5 | 0.20 | 2.5 | 110.2 | 9533 | 0.0469 |
| 18/30(36)kV | |||||||
| 3×1×50 | 6 | 8.0 | 0.20 | 2.0 | 70.6 | 2943 | 0.641 |
| 3×1×70 | 12 | 8.0 | 0.20 | 2.0 | 74.3 | 3317 | 0.443 |
| 3×1×95 | 15 | 8.0 | 0.20 | 2.1 | 78.6 | 3791 | 0.320 |
| 3×1×120 | 15 | 8.0 | 0.20 | 2.1 | 81.2 | 4132 | 0.253 |
| 3×1×150 | 15 | 8.0 | 0.20 | 2.2 | 84.9 | 4579 | 0.206 |
| 3×1×185 | 30 | 8.0 | 0.20 | 2.2 | 88.6 | 5085 | 0.164 |
| 3×1×240 | 30 | 8.0 | 0.20 | 2.3 | 94.0 | 5892 | 0.125 |
| 3×1×300 | 30 | 8.0 | 0.20 | 2.4 | 99.1 | 6721 | 0.100 |
| 3×1×400 | 53 | 8.0 | 0.20 | 2.5 | 105.4 | 7821 | 0.0778 |
| 3×1×500 | 53 | 8.0 | 0.20 | 2.6 | 113.4 | 9210 | 0.0605 |
| 3×1×630 | 53 | 8.0 | 0.20 | 2.7 | 121.8 | 10914 | 0.0469 |
