N2XBH Cable

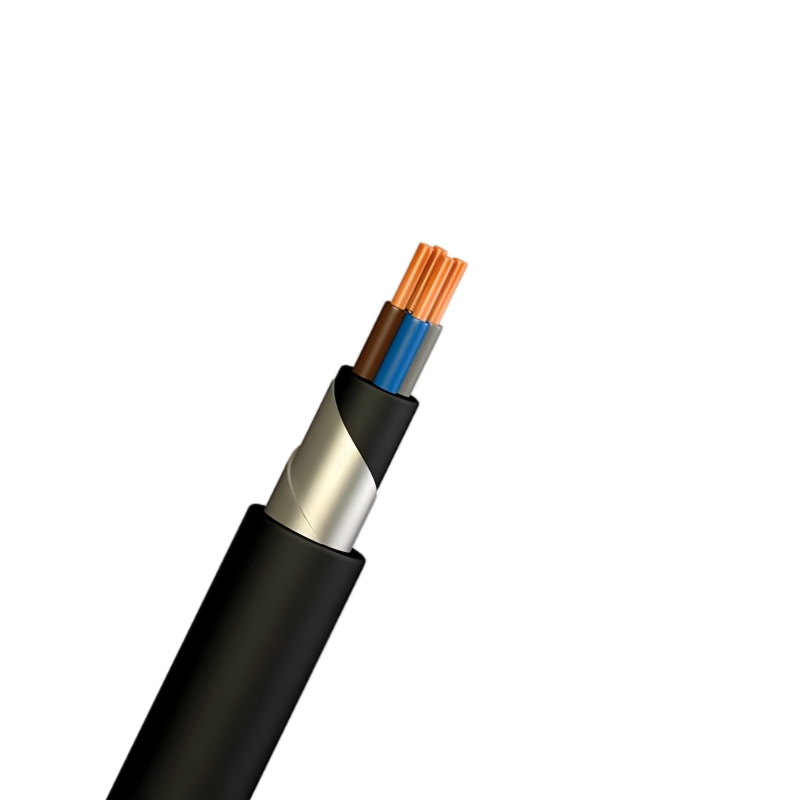

Power cable 0,6/1 kV with Cu conductors, XLPE insulated Steel Tape Armoured HFFR sheathed

Conductor: Copper

Insulation: XLPE

Sheath: HFFR

Package: Export wooden drum

N2XBH Cable Application

0.6/1 kV XLPE insulated, halogen-free, flame retardant, galvanized steel tape armoured power cables are used in generally underground where high tensile stresses and mechanical protection are needed during the operation. These cables are used in intelligent or semi-intelligent buildings which has high dense human population like hospitals, cinemas, theatres, schools, shopping centers.

N2XBH Cable Standard

DIN VDE 0276-604, TS HD 604.S1, IS 1516.1, IEC 60502-1
Flame retardant according to IEC 60332-3-24 Cat. C Low Smoke Zero Halogen according to IEC/EN 60754-1/2, IEC/ EN 61034-1/2

CONSTRUCTION :

Conductor: Class 2 Stranded copper
Insulation : XLPE (Cross-Linked Polyethylene)
Filler : HFFR (Halogen free flame retardant)
Armour: Double galvanized steel tape
Outer Sheath : HFFR (Halogen free flame retardant)

Core Identification
2 core: Blue Brown
3 core: Brown Black Grey
4 core: Blue Brown Black Grey
5 core: Blue Brown Black Grey Black
Sheath Colour : Black Green

TECHNICAL :

Operating Voltage:0.6/1 kV
Test Voltage:3.5 kV
Max. Operating Temperature:90 °C
Flame Retardancy:IEC/EN 60332-3-24
Smoke Density:IEC/EN 61034-1+2
Corrosive Gases Measurement:IEC/EN 60754-2
Amount of Halogen Acid Gas:IEC/EN 60754-1
Min. Bending Radius:Single Core: 15 x Cable Diameter, Multicore: 12 x Cable Diameter

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF CONDUCTOR	NOMINAL THICKNESS OF INSULATION	NOMINAL THICKNESS OF OUTER SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES	mm²	mm	mm	mm	mm	kg/km
2	2.5	1.76	0.7	1.24	13	276
2	4	2.21	0.7	1.24	14	326
2	6	2.71	0.7	1.24	15	384
2	10	3.85	0.7	1.24	17	498
2	16	4.8	0.7	1.24	19	649
2	25	5.85	0.9	1.24	22	882
2	35	6.9	0.9	1.32	24	1113
2	50	8.1	1	1.4	27	1421
2	70	9.7	1.1	1.48	31	1899
2	95	11.4	1.1	1.64	35	2482
3	1.5	1.36	0.7	1.24	12	265
3	2.5	1.76	0.7	1.24	14	342
3	4	2.21	0.7	1.24	15	417
3	6	2.71	0.7	1.24	16	501
3	10	3.85	0.7	1.24	19	704
3	16	4.8	0.7	1.24	21	938
3	25	5.85	0.9	1.24	24	1315
3	35	6.9	0.9	1.32	26	1682
3	50	8.1	1	1.4	29	2176
3	70	9.7	1.1	1.48	34	2949
3	95	11.4	1.1	1.64	38	4004
3	120	12.65	1.2	1.72	42	5215
3	150	14.4	1.4	1.88	47	6413
3	185	15.75	1.6	2.04	51	7719
3	240	18.2	1.7	2.2	58	9961
3	16+10	4.8	0.7	1.24	21	1073
3	25+16	5.85	0.9	1.24	25	1511
3	35+16	6.9	0.9	1.32	27	1861
3	50+25	8.1	1	1.4	30	2377
3	70+35	9.7	1.1	1.56	35	3235
3	95+70	11.4	1.1	1.64	39	4634
3	120+70	12.65	1.2	1.8	44	5813
3	150+70	14.4	1.4	1.88	48	6888
3	185+95	15.75	1.6	2.04	52	8412
3	240+120	18.2	1.7	2.2	59	10679
4	1.5	1.36	0.7	1.24	13	309
4	2.5	1.76	0.7	1.24	14	369
4	4	2.21	0.7	1.24	16	469
4	6	2.71	0.7	1.24	17	577
4	10	3.85	0.7	1.24	20	821
4	16	4.8	0.7	1.24	22	1113
4	25	5.85	0.9	1.32	25	1593
4	35	6.9	0.9	1.4	28	2060
4	50	8.1	1	1.48	32	2637
4	70	9.7	1.1	1.56	36	3611
4	95	11.4	1.1	1.72	41	5355
4	120	12.65	1.2	1.88	46	6590
4	150	14.4	1.4	1.96	51	8096
4	185	15.75	1.6	2.12	56	9795
4	240	18.2	1.7	2.36	63	12585
5	1.5	1.36	0.7	1.24	14	368
5	2.5	1.76	0.7	1.24	15	432
5	4	2.21	0.7	1.24	17	543
5	6	2.71	0.7	1.24	18	679
5	10	3.85	0.7	1.24	21	981
5	16	4.8	0.7	1.24	24	1351
5	25	5.85	0.9	1.32	28	1960
5	35	6.9	0.9	1.4	31	2539
5	50	8.1	1	1.48	35	3333
5	70	9.7	1	1.48	39	4507
5	95	11.4	1.1	1.56	44	6038
