N2XSY 、N2XSEY(YJV) 6-10(12)kV (Cu/XLPE/CTS/PVC)

Medium voltage cables for distribution networks. They are suitable for laying indoor, tunnel, cables trench and underground, it is able to bear external mechanical forces, but unable to bear heavy pulling force, it widely used in transformer stations, electric power plants and industrial plants.

Application

The medium voltage cable is designed for diverse power distribution systems. They are ideal for integration into expansive distribution networks. This includes connecting to power generation units and facilitating critical plant and process connections. Gongniu Cable’s design ensures versatility, allowing direct burial underground, outdoor deployment, indoor installation, and routing within various cable ducts.

Description

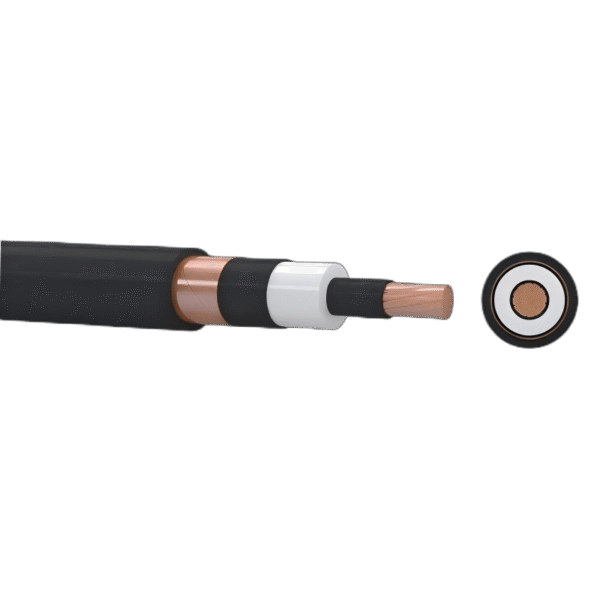

Our N2XSEY – YJV cables are meticulously engineered to deliver superior performance. They feature high-quality copper conductors, designed as class 2 circular compacted strands for optimal current transmission. Each conductor is expertly enveloped by a non-metallic, semi-conducting compound screen.

The core insulation is provided by robust cross-linked polyethylene (XLPE), ensuring excellent dielectric strength and long operational life. An additional non-metallic, semi-conducting compound serves as the insulation screen. For enhanced protection and safety, a highly effective copper tape metallic screen (CTS) is integrated. Inside the cable, non-hygroscopic materials act as fillers and binders, preventing moisture ingress and maintaining structural integrity.

The exterior is safeguarded by a durable polyvinyl chloride (PVC) outer sheath, offering reliable resistance against external elements. Gongniu Cable’s commitment to quality ensures these cables exhibit exceptional electrical and mechanical properties, delivering minimal dielectric loss and high insulation resistance for reliable power transmission.

Specification

Gongniu Cable ensures that these N2XSEY – YJV cables comply with stringent international standards. This includes IEC 60228 for conductors of insulated cables, guaranteeing conductor quality and performance.

Furthermore, they adhere to IEC 60502-2, which covers power cables with extruded insulation and their accessories. Specifically, this standard applies to rated voltages from 1kV (Um=1.2kV) up to 30kV (Um=36kV), ensuring reliable performance across a wide range of medium voltage applications.

N2XSEY – YJV 6/10(12)kV IEC 60502-2

No. of Cores and Nominal Cross Section (mm²)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Weight (kg/km)		Max. D.C. Resistance of Conductor at 20°C (Ω/km)
No. of Cores and Nominal Cross Section (mm²)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Cu	Al	Cu	Al
3×25	3.4	2.2	38.9	1835	1375	0.727	1.20
3×35	3.4	2.3	41.3	2202	1564	0.524	0.868
3×50	3.4	2.4	43.8	2645	1782	0.387	0.641
3×70	3.4	2.5	47.7	3374	2126	0.268	0.443
3×95	3.4	2.7	52	4287	2556	0.193	0.32
3×120	3.4	2.8	54.8	5101	2911	0.153	0.253
3×150	3.4	2.9	58.2	6041	3336	0.124	0.206
3×185	3.4	3	62.1	7272	3863	0.0991	0.164
3×240	3.4	3.2	67.5	9045	4621	0.0754	0.125
3×300	3.4	3.3	72.4	10914	5370	0.0601	0.100
3×400	3.4	3.5	78.7	13688	6545	0.047	0.0778
3×500	3.4	3.7	86.5	16954	7888	0.0366	0.0605
3×630	3.4	4	95.1	21279	9507	0.0283	0.0469
