NA2XBY – YJLV22 (Al/XLPE/STA/PVC)

These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be laying indoor, tunnel and underground. Able to bear external mechanical force, but unable to bear large pulling force.

Application

Our NA2XBY – YJLV62 cable is ideal for power supply in low-voltage systems. It performs reliably in industrial settings, especially for underground installations that require additional mechanical protection. You can install this versatile cable indoors, in tunnels, or directly buried underground. It is built to withstand external mechanical pressures, though it is not designed for installations with significant pulling tension.

Description

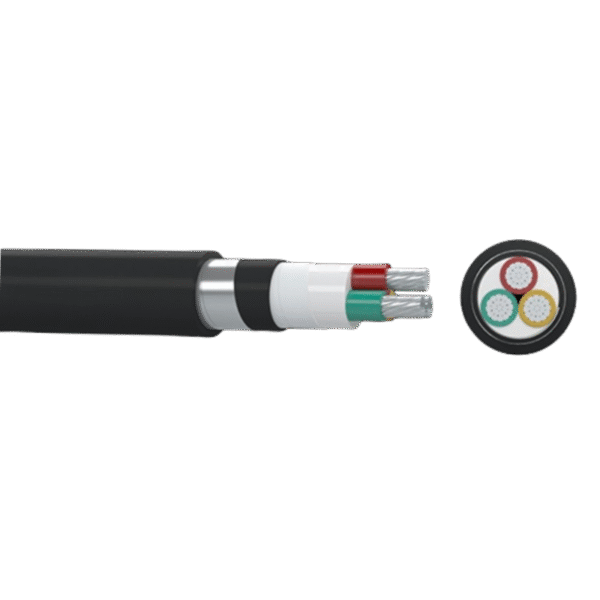

The NA2XBY – YJLV62 cable from Gongniu Cable features a robust, dual-layer protected construction for dependable performance.

Conductor: It has a high-quality aluminum conductor, providing cost-effective electrical transmission.

Insulation: The Cross-linked Polyethylene (XLPE) insulation provides superior electrical properties. This allows for a high power carrying capacity and ensures a long service life with minimal dielectric losses.

Protection: For mechanical strength, the cable incorporates strong Steel Tape Armour (STA). This armour is complemented by an inner PVC bedding and a tough outer PVC sheath, forming a comprehensive protective system against external stresses, moisture, and chemical influences. This dual-layer protection enhances the cable’s durability.

Outer Sheath: The outer PVC sheath offers good resistance to oils and abrasion, making the cable suitable for challenging industrial environments.

This careful construction ensures the cable delivers consistent power and safety.

Specification

Conductor:

Material: Annealed Aluminum (Al)
Type: Solid or stranded (Class 1 or 2), circular or circular compacted, conforming to IEC 60228

Insulation:

Material: Cross-linked Polyethylene (XLPE)

Inner Sheath (Bedding):

Material: Polyvinyl Chloride (PVC)

Armour:

Material: Steel Tape Armour (STA)

Outer Sheath:

Material: Polyvinyl Chloride (PVC)
Color: Typically Black (custom colors available upon request)

Rated Voltage (Uo/U (Um)):

0.6/1 kV (1.2 kV)
Can also be supplied for 1.8/3 kV (3.6 kV) systems

Maximum Conductor Operating Temperature: 90°C

Key Characteristics:

Excellent electrical and mechanical properties.
High insulation resistance.
Good protection against mechanical damage.
Resistant to oil and abrasion.

Applicable Standards:

IEC 60502-1: Power cables with extruded insulation for rated voltages from 1 kV up to 30 kV.
IEC 60228: Conductors of insulated cables.

Technical Parameter

N2XBY/NA2XBY(YJV22/YJLV22) 0.6-1kV IEC 60502-1

No. of Cores and Nominal Cross Section (No. × mm²)	Nominal Insulation Thickness (mm)	Nominal Galvanized Steel Tape Thickness (mm)	Nominal Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Weight (kg/km)		Max. DC Resistance of Conductor at 20℃ (Ω/km)
					Cu	Al	Cu	Al
					Cu	Al	Cu	Al	2×1.5	0.7	0.2	1.8	12.2	220	–	12.1	–
2×2.5	0.7	0.2	1.8	13.0	256	228	7.41	12.1
2×4	0.7	0.2	1.8	14.0	307	260	4.61	7.41
2×6	0.7	0.2	1.8	15.0	370	300	3.08	4.61
2×10	0.7	0.2	1.8	17.5	509	373	1.83	3.08
2×16	0.7	0.2	1.8	19.1	659	461	1.15	1.91
2×25	0.9	0.2	1.8	22.3	915	609	0.727	1.20
2×35	0.9	0.2	1.8	24.3	1147	722	0.524	0.868
2×50	1.0	0.2	1.8	27.3	1463	874	0.387	0.641
2×70	1.1	0.2	1.9	30.9	1939	1106	0.268	0.443
2×95	1.1	0.2	2.0	35.4	2587	1433	0.193	0.320
2×120	1.2	0.5	2.2	40.2	3557	2078	0.153	0.253
2×150	1.4	0.5	2.3	44.2	4269	2465	0.124	0.206
2×185	1.6	0.5	2.5	49.0	5250	2977	0.0991	0.164
2×240	1.7	0.5	2.6	54.2	6551	3603	0.0754	0.125
2×300	1.8	0.5	2.8	59.8	8038	4330	0.0601	0.100
2×400	2.0	0.5	3.0	66.6	10056	5268	0.0470	0.0778
3×1.5	0.7	0.2	1.8	12.7	246	–	12.1	–
3×2.5	0.7	0.2	1.8	13.5	292	249	7.41	12.1
3×4	0.7	0.2	1.8	14.5	359	287	4.61	7.41
3×6	0.7	0.2	1.8	15.6	441	335	3.08	4.61
3×10	0.7	0.2	1.8	18.4	621	422	1.83	3.08
3×16	0.7	0.2	1.8	20.1	827	529	1.15	1.91
3×25	0.9	0.2	1.8	23.5	1170	711	0.727	1.20
3×35	0.9	0.2	1.8	25.7	1491	853	0.524	0.868
3×50	1.0	0.2	1.8	28.9	1922	1045	0.387	0.641
3×70	1.1	0.2	2.0	33.7	2657	1409	0.268	0.443
3×95	1.1	0.5	2.2	39.2	3884	2153	0.193	0.320
3×120	1.2	0.5	2.3	42.9	4728	2517	0.153	0.253
3×150	1.4	0.5	2.4	47.6	5749	3043	0.124	0.206
3×185	1.6	0.5	2.6	52.3	7045	3636	0.0991	0.164
3×240	1.7	0.5	2.7	58.3	8927	4504	0.0754	0.125
3×300	1.8	0.5	2.9	63.9	10919	5362	0.0601	0.100
3×400	2.0	0.5	3.2	71.4	13772	6602	0.0470	0.0778
4×1.5	0.7	0.2	1.8	13.4	279	–	12.1	–
4×2.5	0.7	0.2	1.8	14.3	336	278	7.41	12.1
4×4	0.7	0.2	1.8	15.5	420	325	4.61	7.41
4×6	0.7	0.2	1.8	16.7	525	383	3.08	4.61
4×10	0.7	0.2	1.8	19.8	751	487	1.83	3.08
4×16	0.7	0.2	1.8	21.7	1016	619	1.15	1.91
4×25	0.9	0.2	1.8	25.6	1455	843	0.727	1.20
4×35	0.9	0.2	1.8	28.0	1871	1021	0.524	0.868
4×50	1.0	0.2	1.9	31.8	2440	1274	0.387	0.641
4×70	1.1	0.2	2.1	37.0	3387	1723	0.268	0.443
4×95	1.1	0.5	2.3	43.0	4907	2599	0.193	0.320
4×120	1.2	0.5	2.4	47.5	6044	3100	0.153	0.253
4×150	1.4	0.5	2.6	52.5	7332	3724	0.124	0.206
4×185	1.6	0.5	2.7	57.9	9048	4503	0.0991	0.164
4×240	1.7	0.5	2.9	64.4	11449	5552	0.0754	0.125
4×300	1.8	0.5	3.1	70.6	14041	6634	0.0601	0.100
4×400	2.0	0.5	3.4	79.3	17835	8279	0.0470	0.0778
5×1.5	0.7	0.2	1.8	14.2	314	–	12.1	–
5×2.5	0.7	0.2	1.8	15.2	383	311	7.41	12.1
5×4	0.7	0.2	1.8	16.5	485	365	4.61	7.41
5×6	0.7	0.2	1.8	17.9	613	434	3.08	4.61
5×10	0.7	0.2	1.8	21.3	886	558	1.83	3.08
5×16	0.7	0.2	1.8	23.4	1212	717	1.15	1.91
5×25	0.9	0.2	1.8	27.8	1751	985	0.727	1.20
5×35	0.9	0.2	1.9	30.7	2277	1214	0.524	0.868
5×50	1.0	0.2	2.0	35.6	3029	1571	0.387	0.641
5×70	1.1	0.5	2.3	42.0	4551	2470	0.268	0.443
5×95	1.1	0.5	2.4	47.5	6006	3121	0.193	0.320
5×120	1.2	0.5	2.5	52.0	7354	3677	0.153	0.253
5×150	1.4	0.5	2.7	57.9	8999	4489	0.124	0.206
5×185	1.6	0.5	2.9	63.7	11074	5393	0.0991	0.164
5×240	1.7	0.5	3.1	70.9	14042	6670	0.0754	0.125
5×300	1.8	0.5	3.4	78.3	17364	8106	0.0601	0.100
5×400	2.0	0.8	3.7	88.8	22823	10874	0.0470	0.0778
3×2.5+1×1.5	0.7/0.7	0.2	1.8	14.1	322	–	7.41/12.1	–
3×4+1×2.5	0.7/0.7	0.2	1.8	15.2	399	313	4.61/7.41	7.41/12.1
3×6+1×4	0.7/0.7	0.2	1.8	16.4	499	368	3.08/4.61	4.61/7.41
3×10+1×6	0.7/0.7	0.2	1.8	19.0	694	461	1.83/3.08	3.08/4.61
3×16+1×10	0.7/0.7	0.2	1.8	21.2	949	586	1.15/1.83	1.91/3.08
3×25+1×16	0.9/0.7	0.2	1.8	24.6	1344	786	0.727/1.15	1.20/1.91
3×35+1×16	0.9/0.7	0.2	1.8	26.4	1653	917	0.524/1.15	0.868/1.91
3×50+1×25	1.0/0.9	0.2	1.9	30.3	2194	1166	0.387/0.727	0.641/1.20
3×70+1×35	1.1/0.9	0.2	2.0	34.9	3005	1545	0.268/0.524	0.443/0.868
3×95+1×50	1.1/1.0	0.5	2.2	40.7	4369	2344	0.193/0.387	0.320/0.641
3×120+1×70	1.2/1.1	0.5	2.3	44.8	5424	2801	0.153/0.268	0.253/0.443
3×150+1×70	1.4/1.1	0.5	2.5	49.1	6433	3311	0.124/0.268	0.206/0.443
3×185+1×95	1.6/1.1	0.5	2.6	54.0	7959	3974	0.0991/0.193	0.164/0.320
3×240+1×120	1.7/1.2	0.5	2.8	60.3	10095	4934	0.0754/0.153	0.125/0.253
3×300+1×150	1.8/1.4	0.5	3.0	66.2	12359	5903	0.0601/0.124	0.100/0.206
3×400+1×185	2.0/1.6	0.5	3.2	74.0	15608	7306	0.0470/0.0991	0.0778/0.164
3×2.5+2×1.5	0.7/0.7	0.2	1.8	14.8	355	–	7.41/12.1	–
3×4+2×2.5	0.7/0.7	0.2	1.8	16.0	444	343	4.61/7.41	7.41/12.1
3×6+2×4	0.7/0.7	0.2	1.8	17.3	562	406	3.08/4.61	4.61/7.41
3×10+2×6	0.7/0.7	0.2	1.8	19.9	776	508	1.83/3.08	3.08/4.61
3×16+2×10	0.7/0.7	0.2	1.8	22.6	1081	653	1.15/1.83	1.91/3.08
3×25+2×16	0.9/0.7	0.2	1.8	26.0	1532	875	0.727/1.15	1.20/1.91
3×35+2×16	0.9/0.7	0.2	1.8	27.7	1836	1001	0.524/1.15	0.868/1.91
3×50+2×25	1.0/0.9	0.2	1.9	32.7	2525	1332	0.387/0.727	0.641/1.20
3×70+2×35	1.1/0.9	0.2	2.1	36.9	3399	1726	0.268/0.524	0.443/0.868
3×95+2×50	1.1/1.0	0.5	2.3	43.1	4917	2599	0.193/0.387	0.320/0.641
3×120+2×70	1.2/1.1	0.5	2.4	48.1	6235	3198	0.153/0.268	0.253/0.443
3×150+2×70	1.4/1.1	0.5	2.5	51.4	7165	3627	0.124/0.268	0.206/0.443
3×185+2×95	1.6/1.1	0.5	2.7	57.4	9040	4478	0.0991/0.193	0.164/0.320
3×240+2×120	1.7/1.2	0.5	2.9	63.5	11363	5467	0.0754/0.153	0.125/0.253
3×300+2×150	1.8/1.4	0.5	3.1	69.9	13917	6560	0.0601/0.124	0.100/0.206
3×400+2×185	2.0/1.6	0.5	3.4	78.2	17581	8146	0.0470/0.0991	0.0778/0.164
4×2.5+1×1.5	0.7/0.7	0.2	1.8	15.0	369	–	7.41/12.1	–
4×4+1×2.5	0.7/0.7	0.2	1.8	16.2	464	354	4.61/7.41	7.41/12.1
4×6+1×4	0.7/0.7	0.2	1.8	17.6	587	420	3.08/4.61	4.61/7.41
4×10+1×6	0.7/0.7	0.2	1.8	20.6	831	533	1.83/3.08	3.08/4.61
4×16+1×10	0.7/0.7	0.2	1.8	23.0	1147	684	1.15/1.83	1.91/3.08
4×25+1×16	0.9/0.7	0.2	1.8	26.9	1641	930	0.727/1.15	1.20/1.91
4×35+1×16	0.9/0.7	0.2	1.8	29.1	2049	1100	0.524/1.15	0.868/1.91
4×50+1×25	1.0/0.9	0.2	2.0	34.3	2783	1464	0.387/0.727	0.641/1.20
4×70+1×35	1.1/0.9	0.5	2.2	40.1	4152	2275	0.268/0.524	0.443/0.868
4×95+1×50	1.1/1.0	0.5	2.3	45.0	5427	2825	0.193/0.387	0.320/0.641
4×120+1×70	1.2/1.1	0.5	2.5	50.1	6804	3447	0.153/0.268	0.253/0.443
4×150+1×70	1.4/1.1	0.5	2.6	54.4	8047	4023	0.124/0.268	0.206/0.443
4×185+1×95	1.6/1.1	0.5	2.8	60.5	10052	4931	0.0991/0.193	0.164/0.320
4×240+1×120	1.7/1.2	0.5	3.0	67.2	12697	6062	0.0754/0.153	0.125/0.253
4×300+1×150	1.8/1.4	0.5	3.2	74.2	15654	7346	0.0601/0.124	0.100/0.206
4×400+1×185	2.0/1.6	0.8	3.6	84.2	20594	9900	0.0470/0.0991	0.0778/0.164
