NA2XRY – YJLV32 (Al/XLPE/SWA/PVC)
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying, The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.
Application
The NA2XRY – YJLV72 cable is designed for electricity supply in low-voltage installation systems. It is well-suited for underground use in industrial applications where additional mechanical protection is needed. This versatile cable can be installed indoors, in tunnels, within cable trenches, in shafts, or directly buried in the ground. Thanks to its robust construction, it performs reliably in demanding environments such as transformer stations, electric power plants, and various industrial facilities, capable of withstanding external mechanical forces and moderate tensile stress.
Description

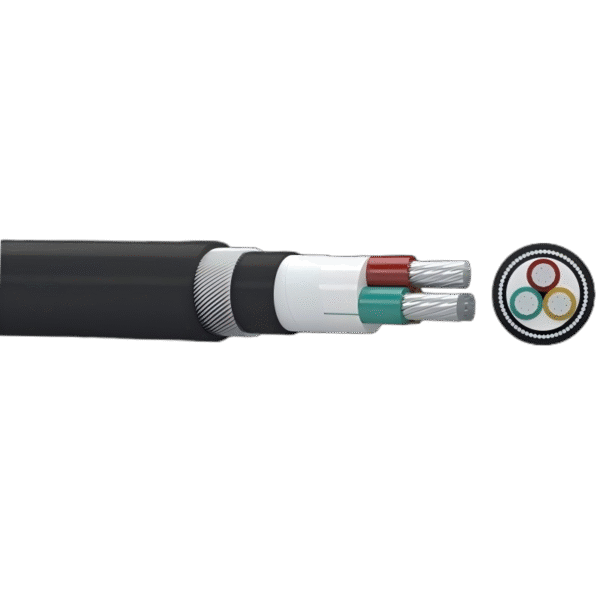

Meet the NA2XRY – YJLV72 Steel Wire Armored Power Cable from Gongniu Cable, engineered for dependable power distribution. This cable starts with a cost-effective aluminum conductor at its core. The Cross-linked Polyethylene (XLPE) insulation allows for greater power capacity under various operating conditions, minimizes dielectric losses, and provides high insulation resistance. This means you get a consistent and efficient power supply.
A key feature of this Gongniu Cable product is its steel wire armor (SWA), which delivers excellent mechanical protection. This armor enables the cable to resist significant external impacts and tension, making it a durable choice for challenging installations. You can have peace of mind knowing the cable is well-protected during and after installation. The tough Polyvinyl Chloride (PVC) outer sheath further protects the cable against oil and abrasion, extending its operational life.
Overall, the NA2XRY – YJLV72 cable from Gongniu Cable provides reliable electrical and mechanical performance you can trust for your critical power needs.
Specification
Applicable Standards: IEC 60228 (Conductors of Insulated Cables), IEC 60502-1 (Power Cables with Extruded Insulation for Rated Voltages from 1kV up to 30kV)
Rated Voltage: 0.6/1kV (Um=1.2kV) and 3kV (Um=3.6kV)
Construction Details:
- Conductor: Plain annealed aluminum, Class 1 (solid) or Class 2 (stranded), circular or circular compacted
- Insulation: XLPE (Cross-linked Polyethylene)
- Filler: Non-hygroscopic material
- Binder: Non-hygroscopic tape
- Inner Sheath: PVC (Polyvinyl Chloride)
- Armour: Galvanized Steel Wire Armour (SWA)
- Outer Sheath: PVC (Polyvinyl Chloride) – Black (other colors available on request)
Technical Parameter
N2XRY/NA2XRY(YJV32/YJLV32) Multi -core 0.6-1kV IEC 60502-1
| No. of Cores and Nominal Cross Section (No. × mm²) | Nominal Insulation Thickness (mm) | Nominal Steel Wire Diameter(mm) | Nominal Sheath Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Weight (kg/km) | Max. DC Resistance of Conductor at 20℃ (Ω/km) | ||
|---|---|---|---|---|---|---|---|---|
| Cu | Al | Cu | Al | |||||
| 2×1.5 | 0.7 | 0.8 | 1.8 | 13.3 | 300 | – | 12.1 | – |
| 2×2.5 | 0.7 | 0.8 | 1.8 | 14.1 | 343 | 314 | 7.41 | 12.1 |
| 2×4 | 0.7 | 0.8 | 1.8 | 15.1 | 404 | 357 | 4.61 | 7.41 |
| 2×6 | 0.7 | 0.8 | 1.8 | 16.1 | 476 | 406 | 3.08 | 4.61 |
| 2×10 | 0.7 | 1.25 | 1.8 | 19.5 | 763 | 619 | 1.83 | 3.08 |
| 2×16 | 0.7 | 1.25 | 1.8 | 21.1 | 942 | 743 | 1.15 | 1.91 |
| 2×25 | 0.9 | 1.6 | 1.8 | 25.0 | 1384 | 1078 | 0.727 | 1.20 |
| 2×35 | 0.9 | 1.6 | 1.8 | 27.0 | 1668 | 1243 | 0.524 | 0.868 |
| 2×50 | 1.0 | 1.6 | 1.8 | 30.0 | 2061 | 1459 | 0.387 | 0.641 |
| 2×70 | 1.1 | 1.6 | 2.0 | 33.8 | 2628 | 1796 | 0.268 | 0.443 |
| 2×95 | 1.1 | 2.0 | 2.1 | 39.1 | 3649 | 2495 | 0.193 | 0.320 |
| 2×120 | 1.2 | 2.0 | 2.2 | 42.5 | 4334 | 2836 | 0.153 | 0.253 |
| 2×150 | 1.4 | 2.0 | 2.3 | 46.5 | 5134 | 3330 | 0.124 | 0.206 |
| 2×185 | 1.6 | 2.5 | 2.5 | 52.3 | 6658 | 4386 | 0.0991 | 0.164 |
| 2×240 | 1.7 | 2.5 | 2.7 | 57.7 | 8140 | 5192 | 0.0754 | 0.125 |
| 2×300 | 1.8 | 2.5 | 2.8 | 63.1 | 9754 | 6049 | 0.0601 | 0.100 |
| 2×400 | 2.0 | 2.5 | 3.1 | 70.1 | 12015 | 7194 | 0.0470 | 0.0778 |
| 3×1.5 | 0.7 | 0.8 | 1.8 | 13.8 | 331 | – | 12.1 | – |
| 3×2.5 | 0.7 | 0.8 | 1.8 | 14.6 | 384 | 340 | 7.41 | 12.1 |
| 3×4 | 0.7 | 0.8 | 1.8 | 15.6 | 460 | 388 | 4.61 | 7.41 |
| 3×6 | 0.7 | 0.8 | 1.8 | 16.7 | 552 | 448 | 3.08 | 4.61 |
| 3×10 | 0.7 | 1.25 | 1.8 | 20.4 | 889 | 682 | 1.83 | 3.08 |
| 3×16 | 0.7 | 1.25 | 1.8 | 22.1 | 1133 | 835 | 1.15 | 1.91 |
| 3×25 | 0.9 | 1.6 | 1.8 | 26.2 | 1680 | 1221 | 0.727 | 1.20 |
| 3×35 | 0.9 | 1.6 | 1.8 | 28.4 | 2051 | 1414 | 0.524 | 0.868 |
| 3×50 | 1.0 | 1.6 | 1.9 | 31.8 | 2572 | 1681 | 0.387 | 0.641 |
| 3×70 | 1.1 | 2.0 | 2.0 | 37.2 | 3637 | 2389 | 0.268 | 0.443 |
| 3×95 | 1.1 | 2.0 | 2.2 | 41.5 | 4626 | 2895 | 0.193 | 0.320 |
| 3×120 | 1.2 | 2.0 | 2.3 | 45.2 | 5565 | 3336 | 0.153 | 0.253 |
| 3×150 | 1.4 | 2.5 | 2.5 | 51.1 | 7121 | 4415 | 0.124 | 0.206 |
| 3×185 | 1.6 | 2.5 | 2.6 | 55.6 | 8522 | 5113 | 0.0991 | 0.164 |
| 3×240 | 1.7 | 2.5 | 2.8 | 61.8 | 10612 | 6188 | 0.0754 | 0.125 |
| 3×300 | 1.8 | 2.5 | 3.0 | 67.4 | 12798 | 7206 | 0.0601 | 0.100 |
| 3×400 | 2.0 | 2.5 | 3.2 | 74.7 | 15826 | 8623 | 0.0470 | 0.0778 |
| 4×1.5 | 0.7 | 0.8 | 1.8 | 14.5 | 372 | – | 12.1 | – |
| 4×2.5 | 0.7 | 0.8 | 1.8 | 15.4 | 435 | 377 | 7.41 | 12.1 |
| 4×4 | 0.7 | 0.8 | 1.8 | 16.6 | 531 | 436 | 4.61 | 7.41 |
| 4×6 | 0.7 | 1.25 | 1.8 | 18.7 | 765 | 631 | 3.08 | 4.61 |
| 4×10 | 0.7 | 1.25 | 1.8 | 21.8 | 1049 | 779 | 1.83 | 3.08 |
| 4×16 | 0.7 | 1.6 | 1.8 | 24.4 | 1473 | 1076 | 1.15 | 1.91 |
| 4×25 | 0.9 | 1.6 | 1.8 | 28.3 | 2017 | 1404 | 0.727 | 1.20 |
| 4×35 | 0.9 | 1.6 | 1.9 | 30.9 | 2495 | 1645 | 0.524 | 0.868 |
| 4×50 | 1.0 | 1.6 | 2.0 | 34.7 | 3157 | 1977 | 0.387 | 0.641 |
| 4×70 | 1.1 | 2.0 | 2.2 | 40.7 | 4493 | 2829 | 0.268 | 0.443 |
| 4×95 | 1.1 | 2.0 | 2.3 | 45.3 | 5742 | 3434 | 0.193 | 0.320 |
| 4×120 | 1.2 | 2.5 | 2.5 | 51.0 | 7417 | 4442 | 0.153 | 0.253 |
| 4×150 | 1.4 | 2.5 | 2.6 | 55.8 | 8806 | 5198 | 0.124 | 0.206 |
| 4×185 | 1.6 | 2.5 | 2.8 | 61.4 | 10739 | 6194 | 0.0991 | 0.164 |
| 4×240 | 1.7 | 2.5 | 3.0 | 67.9 | 13321 | 7424 | 0.0754 | 0.125 |
| 4×300 | 1.8 | 2.5 | 3.2 | 74.1 | 16097 | 8695 | 0.0601 | 0.100 |
| 4×400 | 2.0 | 3.15 | 3.5 | 84.1 | 21074 | 11526 | 0.0470 | 0.0778 |
| 5×1.5 | 0.7 | 0.8 | 1.8 | 15.3 | 414 | – | 12.1 | – |
| 5×2.5 | 0.7 | 0.8 | 1.8 | 16.3 | 492 | 419 | 7.41 | 12.1 |
| 5×4 | 0.7 | 1.25 | 1.8 | 18.5 | 726 | 606 | 4.61 | 7.41 |
| 5×6 | 0.7 | 1.25 | 1.8 | 19.9 | 874 | 704 | 3.08 | 4.61 |
| 5×10 | 0.7 | 1.25 | 1.8 | 23.3 | 1214 | 870 | 1.83 | 3.08 |
| 5×16 | 0.7 | 1.6 | 1.8 | 26.1 | 1723 | 1227 | 1.15 | 1.91 |
| 5×25 | 0.9 | 1.6 | 1.8 | 30.5 | 2362 | 1597 | 0.727 | 1.20 |
| 5×35 | 0.9 | 1.6 | 1.9 | 33.4 | 2953 | 1890 | 0.524 | 0.868 |
| 5×50 | 1.0 | 2.0 | 2.1 | 39.3 | 4090 | 2609 | 0.387 | 0.641 |
| 5×70 | 1.1 | 2.0 | 2.3 | 44.3 | 5352 | 3271 | 0.268 | 0.443 |
| 5×95 | 1.1 | 2.5 | 2.5 | 51.0 | 7379 | 4494 | 0.193 | 0.320 |
| 5×120 | 1.2 | 2.5 | 2.6 | 55.5 | 8856 | 5148 | 0.153 | 0.253 |
| 5×150 | 1.4 | 2.5 | 2.8 | 61.4 | 10690 | 6181 | 0.124 | 0.206 |
| 5×185 | 1.6 | 2.5 | 3.0 | 67.2 | 12917 | 7236 | 0.0991 | 0.164 |
| 5×240 | 1.7 | 2.5 | 3.2 | 74.4 | 16133 | 8761 | 0.0754 | 0.125 |
| 5×300 | 1.8 | 3.15 | 3.4 | 82.9 | 20582 | 11266 | 0.0601 | 0.100 |
| 5×400 | 2.0 | 3.15 | 3.8 | 92.4 | 25587 | 13590 | 0.0470 | 0.0778 |
| 3×2.5+1×1.5 | 0.7/0.7 | 0.8 | 1.8 | 15.2 | 418 | – | 7.41/12.1 | – |
| 3×4+1×2.5 | 0.7/0.7 | 0.8 | 1.8 | 16.3 | 508 | 422 | 4.61/7.41 | 7.41/12.1 |
| 3×6+1×4 | 0.7/0.7 | 1.25 | 1.8 | 18.4 | 740 | 608 | 3.08/4.61 | 4.61/7.41 |
| 3×10+1×6 | 0.7/0.7 | 1.25 | 1.8 | 21.0 | 977 | 736 | 1.83/3.08 | 3.08/4.61 |
| 3×16+1×10 | 0.7/0.7 | 1.25 | 1.8 | 23.2 | 1268 | 905 | 1.15/1.83 | 1.91/3.08 |
| 3×25+1×16 | 0.9/0.7 | 1.6 | 1.8 | 27.3 | 1879 | 1321 | 0.727/1.15 | 1.20/1.91 |
| 3×35+1×16 | 0.9/0.7 | 1.6 | 1.8 | 29.1 | 2225 | 1489 | 0.524/1.15 | 0.868/1.91 |
| 3×50+1×25 | 1.0/0.9 | 1.6 | 1.9 | 33.0 | 2856 | 1831 | 0.387/0.727 | 0.641/1.20 |
| 3×70+1×35 | 1.1/0.9 | 2.0 | 2.1 | 38.6 | 4045 | 2584 | 0.268/0.524 | 0.443/0.868 |
| 3×95+1×50 | 1.1/1.0 | 2.0 | 2.2 | 43.0 | 5162 | 3114 | 0.193/0.387 | 0.320/0.641 |
| 3×120+1×70 | 1.2/1.1 | 2.0 | 2.4 | 47.3 | 6325 | 3683 | 0.153/0.268 | 0.253/0.443 |
| 3×150+1×70 | 1.4/1.1 | 2.5 | 2.5 | 52.4 | 7841 | 4719 | 0.124/0.268 | 0.206/0.443 |
| 3×185+1×95 | 1.6/1.1 | 2.5 | 2.7 | 57.5 | 9512 | 5527 | 0.0991/0.193 | 0.164/0.320 |
| 3×240+1×120 | 1.7/1.2 | 2.5 | 2.9 | 63.8 | 11870 | 6672 | 0.0754/0.153 | 0.125/0.253 |
| 3×300+1×150 | 1.8/1.4 | 2.5 | 3.0 | 69.5 | 14254 | 7800 | 0.0601/0.124 | 0.100/0.206 |
| 3×400+1×185 | 2.0/1.6 | 3.15 | 3.3 | 78.8 | 18672 | 10313 | 0.0470/0.0991 | 0.0778/0.164 |
| 3×2.5+2×1.5 | 0.7/0.7 | 0.8 | 1.8 | 15.9 | 459 | – | 7.41/12.1 | – |
| 3×4+2×2.5 | 0.7/0.7 | 1.25 | 1.8 | 18.0 | 678 | 577 | 4.61/7.41 | 7.41/12.1 |
| 3×6+2×4 | 0.7/0.7 | 1.25 | 1.8 | 19.3 | 817 | 660 | 3.08/4.61 | 4.61/7.41 |
| 3×10+2×6 | 0.7/0.7 | 1.25 | 1.8 | 21.9 | 1073 | 807 | 1.83/3.08 | 3.08/4.61 |
| 3×16+2×10 | 0.7/0.7 | 1.6 | 1.8 | 25.3 | 1565 | 1138 | 1.15/1.83 | 1.91/3.08 |
| 3×25+2×16 | 0.9/0.7 | 1.6 | 1.8 | 28.7 | 2106 | 1450 | 0.727/1.15 | 1.20/1.91 |
| 3×35+2×16 | 0.9/0.7 | 1.6 | 1.8 | 30.4 | 2448 | 1614 | 0.524/1.15 | 0.868/1.91 |
| 3×50+2×25 | 1.0/0.9 | 2.0 | 2.0 | 36.4 | 3499 | 2285 | 0.387/0.727 | 0.641/1.20 |
| 3×70+2×35 | 1.1/0.9 | 2.0 | 2.1 | 40.4 | 4487 | 2814 | 0.268/0.524 | 0.443/0.868 |
| 3×95+2×50 | 1.1/1.0 | 2.0 | 2.3 | 45.4 | 5750 | 3436 | 0.193/0.387 | 0.320/0.641 |
| 3×120+2×70 | 1.2/1.1 | 2.5 | 2.5 | 51.6 | 7638 | 4566 | 0.153/0.268 | 0.253/0.443 |
| 3×150+2×70 | 1.4/1.1 | 2.5 | 2.6 | 54.9 | 8637 | 5099 | 0.124/0.268 | 0.206/0.443 |
| 3×185+2×95 | 1.6/1.1 | 2.5 | 2.8 | 60.9 | 10700 | 6138 | 0.0991/0.193 | 0.164/0.320 |
| 3×240+2×120 | 1.7/1.2 | 2.5 | 3.0 | 67.0 | 13208 | 7316 | 0.0754/0.153 | 0.125/0.253 |
| 3×300+2×150 | 1.8/1.4 | 2.5 | 3.2 | 73.4 | 15945 | 8591 | 0.0601/0.124 | 0.100/0.206 |
| 3×400+2×185 | 2.0/1.6 | 3.15 | 3.5 | 83.0 | 20775 | 11345 | 0.0470/0.0991 | 0.0778/0.164 |
| 4×2.5+1×1.5 | 0.7/0.7 | 0.8 | 1.8 | 16.1 | 476 | – | 7.41/12.1 | – |
| 4×4+1×2.5 | 0.7/0.7 | 1.25 | 1.8 | 18.2 | 697 | 587 | 4.61/7.41 | 7.41/12.1 |
| 4×6+1×4 | 0.7/0.7 | 1.25 | 1.8 | 19.6 | 850 | 682 | 3.08/4.61 | 4.61/7.41 |
| 4×10+1×6 | 0.7/0.7 | 1.25 | 1.8 | 22.6 | 1143 | 838 | 1.83/3.08 | 3.08/4.61 |
| 4×16+1×10 | 0.7/0.7 | 1.6 | 1.8 | 25.7 | 1644 | 1182 | 1.15/1.83 | 1.91/3.08 |
| 4×25+1×16 | 0.9/0.7 | 1.6 | 1.8 | 29.6 | 2226 | 1515 | 0.727/1.15 | 1.20/1.91 |
| 4×35+1×16 | 0.9/0.7 | 1.6 | 1.9 | 32.0 | 2698 | 1750 | 0.524/1.15 | 0.868/1.91 |
| 4×50+1×25 | 1.0/0.9 | 2.0 | 2.1 | 38.0 | 3802 | 2485 | 0.387/0.727 | 0.641/1.20 |
| 4×70+1×35 | 1.1/0.9 | 2.0 | 2.2 | 42.4 | 4931 | 3054 | 0.268/0.524 | 0.443/0.868 |
| 4×95+1×50 | 1.1/1.0 | 2.0 | 2.4 | 47.5 | 6325 | 3726 | 0.193/0.387 | 0.320/0.641 |
| 4×120+1×70 | 1.2/1.1 | 2.5 | 2.5 | 53.4 | 8233 | 4843 | 0.153/0.268 | 0.253/0.443 |
| 4×150+1×70 | 1.4/1.1 | 2.5 | 2.7 | 57.9 | 9632 | 5608 | 0.124/0.268 | 0.206/0.443 |
| 4×185+1×95 | 1.6/1.1 | 2.5 | 2.9 | 64.0 | 11824 | 6702 | 0.0991/0.193 | 0.164/0.320 |
| 4×240+1×120 | 1.7/1.2 | 2.5 | 3.1 | 70.7 | 14645 | 8012 | 0.0754/0.153 | 0.125/0.253 |
| 4×300+1×150 | 1.8/1.4 | 3.15 | 3.3 | 79.0 | 18714 | 10410 | 0.0601/0.124 | 0.100/0.206 |
| 4×400+1×185 | 2.0/1.6 | 3.15 | 3.6 | 87.6 | 23183 | 12438 | 0.0470/0.0991 | 0.0778/0.164 |
