NA2XSBY (YJLV62) 18-30(36)kV (AL/XLPE/CTS/ATA/PVC)

NA2XSBY (YJLV62) 18-30(36)kV (AL/XLPE/CTS/ATA/PVC)

Medium voltage cables for distribution networks, they are suitable for laying indoor, tunnel, cables trench and underground, it is able to bear external mechanical forces, but unable to bear heavy pulling force, it widely used in transformer stations, electric power plants and industrial plants.IEC 60502-2

Send Inquiry

Application

Our NA2XSBY – YJLV62 cable is a reliable choice for medium voltage power distribution networks. You can install it in various settings, including indoors, in tunnels, cable trenches, or directly buried underground. This cable is built to withstand moderate mechanical stresses. This makes it highly suitable for use in transformer stations, electric power plants, and diverse industrial plants.

Description

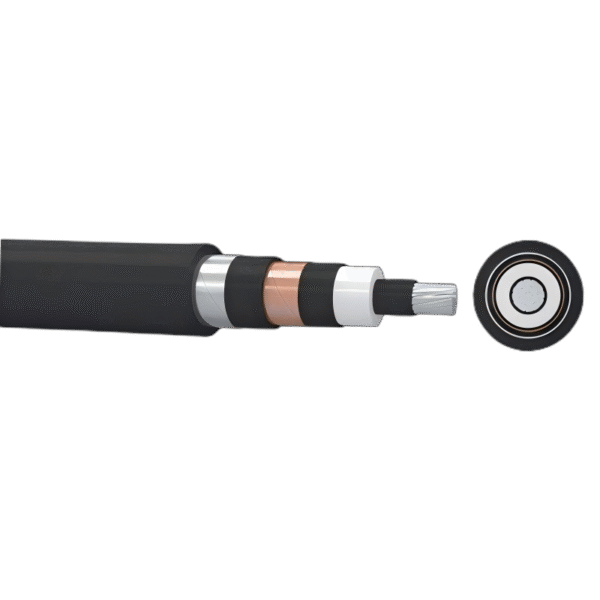

The NA2XSBY – YJLV62 (AL/XLPE/CTS/STA-NM/PVC) medium voltage cable from Gongniu Cable delivers excellent performance and long-lasting durability. Its core features a compacted circular aluminum conductor. This ensures reliable power transmission. We use Cross-Linked Polyethylene (XLPE) for insulation. XLPE offers superior electrical properties and high insulation resistance.

To enhance safety and performance, the cable has several protective layers. These include semi-conducting screens and a copper tape metallic screen (CTS). The copper tape screen helps ensure a uniform electric field and provides earth fault protection. An inner PVC sheath further protects the cable’s core.

For mechanical strength, we use non-magnetic steel tape armor (STA-NM). This armor safeguards the cable against physical damage during and after installation. A tough PVC outer sheath covers the entire cable. This outer layer resists grease, oil, and abrasion. This resistance ensures a long service life, even in challenging industrial environments. You can trust Gongniu Cable for a product that combines strong electrical performance with robust mechanical protection.

Specification

The Gongniu Cable NA2XSBY – YJLV62 cable meets key international standards. This ensures its quality and safety for your projects.

  • Applicable Standards: IEC 60502-2, IEC 60228
  • Rated Voltage: Designed for medium voltage power systems up to 36kV
  • Conductor Material: Aluminum (Class 2, circular compacted)
  • Insulation Material: XLPE (Cross-Linked Polyethylene)
  • Metallic Screen: Copper Tape Screen (CTS)
  • Armour Type: Non-Magnetic Steel Tape Armour (STA-NM)
  • Sheathing: PVC Inner Sheath and robust PVC Outer Sheath





N2XSBY/NA2XSBY(YJV62/YJLV62) 18/30(36)kV IEC 60502-2

No. of Cores and Nominal Cross Section (mm²) Nominal Insulation Thickness (mm) Nominal Steel Tape Thickness (mm) Nominal Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Weight (kg/km) Max. D.C. Resistance of Conductor at 20℃ (Ω/km)
Cu Al Cu Al
1×50 8.0 0.20 2.1 34.9 1725 1439 0.387 0.641
1×70 8.0 0.50 2.2 38.0 2374 1960 0.268 0.443
1×95 8.0 0.50 2.2 39.8 2723 2149 0.193 0.320
1×120 8.0 0.50 2.3 41.2 3037 2311 0.153 0.253
1×150 8.0 0.50 2.3 42.9 3397 2500 0.124 0.206
1×185 8.0 0.50 2.4 44.8 3862 2732 0.0991 0.164
1×240 8.0 0.50 2.5 47.3 4530 3063 0.0754 0.125
1×300 8.0 0.50 2.5 49.7 5243 3405 0.0601 0.100
1×400 8.0 0.50 2.6 52.6 6213 3844 0.0470 0.0778
1×500 8.0 0.50 2.7 56.4 7438 4431 0.0366 0.0605
1×630 8.0 0.50 2.9 60.7 9063 5159 0.0283 0.0469
