NAYRY – VLV32 (Al/PVC/SWA/PVC)
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying. The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.
Application
The NAYRY – VLV32 Power Cable is an excellent choice for low voltage power supply systems. Its robust construction makes it particularly suitable for industrial uses that demand extra mechanical protection and resistance to tension. You can install these cables indoors, in tunnels, cable trenches, shafts, or directly buried underground. They are specifically engineered to withstand significant external mechanical forces and a certain degree of pulling stress. This makes them ideal for critical power connections in transformer stations, electric power plants, and various industrial facilities.
Description

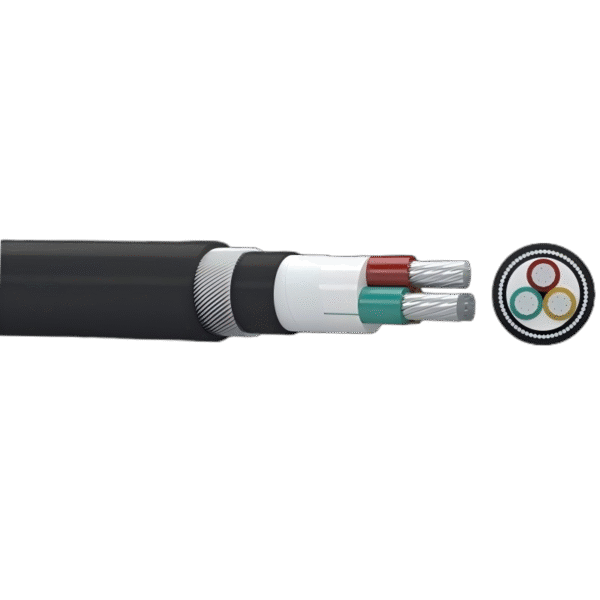

Gongniu Cable’s NAYRY – VLV32 power cable is built with precision and high-grade materials to ensure lasting performance:
Conductor: The core of this cable features an aluminum conductor. We use Class 1 or Class 2 aluminum, available in solid, stranded, or compacted circular forms for optimal conductivity.
Insulation: Each conductor is carefully insulated with Polyvinyl Chloride (PVC) to guarantee stable and safe electrical isolation.
Core Protection: Non-hygroscopic fillers and binders surround the insulated cores. This design keeps moisture out and helps maintain the cable’s structural integrity.
Inner Sheath: A PVC inner sheath provides an additional protective layer for the cable’s core components.
Armour: The crucial steel wire armor provides superior mechanical protection. This armor helps the cable endure significant external forces and offers resistance to pulling tension.
Outer Sheath: The cable is finished with a tough Polyvinyl Chloride (PVC) outer sheath. This outer layer protects against abrasion, moisture, sunlight, oil, acid, alkali, salt, and various solvents. It also provides flame resistance, enhancing overall safety.
Our NAYRY – VLV32 cables deliver excellent electrical and mechanical properties, ensuring high reliability and requiring minimal maintenance. Their aluminum conductor design makes them a cost-effective solution while maintaining performance. The cables feature lightweight construction and good bending properties, promoting easy installation and long-term use.
Specification
The NAYRY – VLV32 Power Cable adheres to rigorous international standards, confirming its quality and dependability:
Conductor Standards: IEC 60228, which specifies requirements for conductors in insulated cables
Power Cable Standards: IEC 60502-1, covering power cables with extruded insulation and their accessories for rated voltages from 1kV (Um=1.2kV) up to 30kV (Um=36kV). Specifically, Part 1 applies to cables rated for 1kV (Um=1.2kV) and 3kV (Um=3.6kV)
Technical Parameter
| No. of Cores and Nominal Cross Section (No. × mm²) | Min. Number of Wires | Nominal Insulation Thickness (mm) | Nominal Steel Wire Diameter (mm) | Nominal Sheath Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Weight (kg/km) | Max. DC Resistance of Conductor at 20℃ (Ω/km) |
|---|---|---|---|---|---|---|---|
| No. | |||||||
| 2×1.5 | 1 | 0.8 | 0.8 | 1.8 | 13.7 | 322 | 12.1 |
| 2×2.5 | 1 | 0.8 | 0.8 | 1.8 | 14.5 | 367 | 7.41 |
| 2×4 | 1 | 1.0 | 0.8 | 1.8 | 16.3 | 459 | 4.61 |
| 2×6 | 1 | 1.0 | 1.25 | 1.8 | 18.2 | 652 | 3.08 |
| 2×10 | 6 | 1.0 | 1.25 | 1.8 | 20.7 | 842 | 1.83 |
| 2×16 | 6 | 1.0 | 1.25 | 1.8 | 22.3 | 1025 | 1.15 |
| 2×25 | 6 | 1.2 | 1.6 | 1.8 | 26.2 | 1501 | 0.727 |
| 2×35 | 6 | 1.2 | 1.6 | 1.8 | 28.2 | 1791 | 0.524 |
| 2×50 | 6 | 1.4 | 1.6 | 1.9 | 31.8 | 2231 | 0.387 |
| 2×70 | 12 | 1.4 | 2.0 | 2.0 | 36.5 | 3067 | 0.268 |
| 2×95 | 15 | 1.6 | 2.0 | 2.2 | 41.3 | 3907 | 0.193 |
| 2×120 | 18 | 1.6 | 2.0 | 2.3 | 44.3 | 4562 | 0.153 |
| 2×150 | 18 | 1.8 | 2.5 | 2.4 | 49.7 | 5874 | 0.124 |
| 2×185 | 30 | 2.0 | 2.5 | 2.6 | 54.1 | 6938 | 0.0991 |
| 2×240 | 34 | 2.2 | 2.5 | 2.7 | 59.7 | 8504 | 0.0754 |
| 2×300 | 34 | 2.4 | 2.5 | 2.9 | 65.7 | 10262 | 0.0601 |
| 2×400 | 53 | 2.6 | 2.5 | 3.2 | 72.7 | 12586 | 0.0470 |
| 3×1.5 | 1 | 0.8 | 0.8 | 1.8 | 14.2 | 357 | 12.1 |
| 3×2.5 | 1 | 0.8 | 0.8 | 1.8 | 15.1 | 411 | 7.41 |
| 3×4 | 1 | 1.0 | 0.8 | 1.8 | 16.9 | 528 | 4.61 |
| 3×6 | 1 | 1.0 | 1.25 | 1.8 | 18.9 | 750 | 3.08 |
| 3×10 | 6 | 1.0 | 1.25 | 1.8 | 21.7 | 991 | 1.83 |
| 3×16 | 6 | 1.0 | 1.25 | 1.8 | 23.4 | 1232 | 1.15 |
| 3×25 | 6 | 1.2 | 1.6 | 1.8 | 27.5 | 1801 | 0.727 |
| 3X35 | 6 | 1.2 | 1.6 | 1.8 | 29.7 | 2181 | 0.524 |
| 3×50 | 6 | 1.4 | 1.6 | 2.0 | 33.8 | 2777 | 0.387 |
| 3×70 | 12 | 1.4 | 2.0 | 2.1 | 38.7 | 3843 | 0.268 |
| 3×95 | 15 | 1.6 | 2.0 | 2.2 | 43.7 | 4947 | 0.193 |
| 3×120 | 18 | 1.6 | 2.0 | 2.3 | 46.9 | 5829 | 0.153 |
| 3×150 | 18 | 1.8 | 2.5 | 2.5 | 52.8 | 7454 | 0.124 |
| 3×185 | 30 | 2.0 | 2.5 | 2.7 | 57.5 | 8924 | 0.0991 |
| 3×240 | 34 | 2.2 | 2.5 | 2.9 | 64.1 | 11150 | 0.0754 |
| 3×300 | 34 | 2.4 | 2.5 | 3.1 | 70.2 | 13441 | 0.0601 |
| 3×400 | 53 | 2.6 | 3.15 | 3.4 | 79.4 | 17564 | 0.0470 |
| 4×1.5 | 1 | 0.8 | 0.8 | 1.8 | 15.0 | 398 | 12.1 |
| 4×2.5 | 1 | 0.8 | 0.8 | 1.8 | 15.9 | 468 | 7.41 |
| 4×4 | 1 | 1.0 | 1.25 | 1.8 | 18.9 | 736 | 4.61 |
| 4×6 | 1 | 1.0 | 1.25 | 1.8 | 20.2 | 869 | 3.08 |
| 4×10 | 6 | 1.0 | 1.25 | 1.8 | 23.2 | 1157 | 1.83 |
| 4×16 | 6 | 1.0 | 1.6 | 1.8 | 25.9 | 1609 | 1.15 |
| 4×25 | 6 | 1.2 | 1.6 | 1.8 | 29.7 | 2162 | 0.727 |
| 4×35 | 6 | 1.2 | 1.6 | 1.9 | 32.3 | 2669 | 0.524 |
| 4×50 | 6 | 1.4 | 2.0 | 2.1 | 38.4 | 3739 | 0.387 |
| 4×70 | 12 | 1.4 | 2.0 | 2.2 | 42.2 | 4723 | 0.268 |
| 4×95 | 15 | 1.6 | 2.5 | 2.4 | 49.3 | 6591 | 0.193 |
| 4×120 | 18 | 1.6 | 2.5 | 2.5 | 52.9 | 7775 | 0.153 |
| 4×150 | 18 | 1.8 | 2.5 | 2.7 | 57.9 | 9280 | 0.124 |
| 4×185 | 30 | 2.0 | 2.5 | 2.9 | 63.5 | 11235 | 0.0991 |
| 4×240 | 34 | 2.2 | 2.5 | 3.1 | 70.5 | 13979 | 0.0754 |
| 4×300 | 34 | 2.4 | 3.15 | 3.3 | 78.9 | 17902 | 0.0601 |
| 4×400 | 53 | 2.6 | 3.15 | 3.6 | 87.2 | 22055 | 0.0470 |
| 5×1.5 | 1 | 0.8 | 0.8 | 1.8 | 15.8 | 449 | 12.1 |
| 5×2.5 | 1 | 0.8 | 0.8 | 1.8 | 16.9 | 530 | 7.41 |
| 5×4 | 1 | 1.0 | 1.25 | 1.8 | 20.1 | 836 | 4.61 |
| 5×6 | 1 | 1.0 | 1.25 | 1.8 | 21.5 | 992 | 3.08 |
| 5×10 | 6 | 1.0 | 1.6 | 1.8 | 25.6 | 1490 | 1.83 |
| 5×16 | 6 | 1.0 | 1.6 | 1.8 | 27.8 | 1878 | 1.15 |
| 5×25 | 6 | 1.2 | 1.6 | 1.9 | 32.3 | 2563 | 0.727 |
| 5×35 | 6 | 1.2 | 2.0 | 2.0 | 36.7 | 3487 | 0.524 |
| 5×50 | 6 | 1.4 | 2.0 | 2.2 | 41.7 | 4436 | 0.387 |
| 5×70 | 12 | 1.4 | 2.0 | 2.3 | 45.9 | 5649 | 0.268 |
| 5×95 | 15 | 1.6 | 2.5 | 2.5 | 53.7 | 7849 | 0.193 |
| 5×120 | 18 | 1.6 | 2.5 | 2.7 | 57.8 | 9345 | 0.153 |
| 5×150 | 18 | 1.8 | 2.5 | 2.9 | 63.8 | 11208 | 0.124 |
| 5×185 | 30 | 2.0 | 2.5 | 3.0 | 69.4 | 13517 | 0.0991 |
| 5×240 | 34 | 2.2 | 3.15 | 3.3 | 79.0 | 17888 | 0.0754 |
| 5×300 | 34 | 2.4 | 3.15 | 3.6 | 86.6 | 21643 | 0.0601 |
| 5×400 | 53 | 2.6 | 3.15 | 3.9 | 95.8 | 26754 | 0.0470 |
| 3×2.5+1×1.5 | 1/1 | 0.8/0.8 | 0.8 | 1.8 | 15.7 | 450 | 7.41/12.1 |
| 3×4+1×2.5 | 1/1 | 1.0/0.8 | 1.25 | 1.8 | 18.4 | 699 | 4.61/7.41 |
| 3×6+1×4 | 1/1 | 1.0/1.0 | 1.25 | 1.8 | 19.9 | 833 | 3.08/4.61 |
| 3×10+1×6 | 6/1 | 1.0/1.0 | 1.25 | 1.8 | 22.5 | 1092 | 1.83/3.08 |
| 3×16+1×10 | 6/6 | 1.0/1.0 | 1.6 | 1.8 | 25.4 | 1527 | 1.15/1.83 |
| 3×25+1×16 | 6/6 | 1.2/1.0 | 1.6 | 1.8 | 28.8 | 2034 | 0.727/1.15 |
| 3×35+1×16 | 6/6 | 1.2/1.0 | 1.6 | 1.9 | 30.8 | 2403 | 0.524/1.15 |
| 3×50+1×25 | 6/6 | 1.4/1.2 | 2.0 | 2.0 | 36.5 | 3390 | 0.387/0.727 |
| 3×70+1×35 | 12/6 | 1.4/1.2 | 2.0 | 2.1 | 40.1 | 4261 | 0.268/0.524 |
| 3×95+1×50 | 15/6 | 1.6/1.4 | 2.0 | 2.3 | 45.5 | 5514 | 0.193/0.387 |
| 3×120+1×70 | 18/12 | 1.6/1.4 | 2.5 | 2.5 | 50.7 | 7148 | 0.153/0.268 |
| 3×150+1×70 | 18/12 | 1.8/1.4 | 2.5 | 2.6 | 54.4 | 8236 | 0.124/0.268 |
| 3×185+1×95 | 30/15 | 2.0/1.6 | 2.5 | 2.7 | 59.5 | 9994 | 0.0991/0.193 |
| 3×240+1×120 | 34/18 | 2.2/1.6 | 2.5 | 2.9 | 66.1 | 12399 | 0.0754/0.153 |
| 3×300+1×150 | 34/18 | 2.4/1.8 | 2.5 | 3.1 | 72.4 | 14964 | 0.0601/0.124 |
| 3×400+1×185 | 53/30 | 2.6/2.0 | 3.15 | 3.4 | 81.7 | 19493 | 0.0470/0.0991 |
| 3×2.5+2×1.5 | 1/1 | 0.8/0.8 | 0.8 | 1.8 | 16.4 | 496 | 7.41/12.1 |
| 3×4+2×2.5 | 1/1 | 1.0/0.8 | 1.25 | 1.8 | 19.2 | 762 | 4.61/7.41 |
| 3×6+2×4 | 1/1 | 1.0/1.0 | 1.25 | 1.8 | 20.9 | 931 | 3.08/4.61 |
| 3×10+2×6 | 6/1 | 1.0/1.0 | 1.25 | 1.8 | 23.5 | 1201 | 1.83/3.08 |
| 3×16+2×10 | 6/6 | 1.0/1.0 | 1.6 | 1.8 | 26.9 | 1716 | 1.15/1.83 |
| 3×25+2×16 | 6/6 | 1.2/1.0 | 1.6 | 1.8 | 30.4 | 2280 | 0.727/1.15 |
| 3×35+2×16 | 6/6 | 1.2/1.0 | 1.6 | 1.9 | 32.2 | 2646 | 0.524/1.15 |
| 3×50+2×25 | 6/6 | 1.4/1.2 | 2.0 | 2.1 | 38.6 | 3783 | 0.387/0.727 |
| 3×70+2×35 | 12/6 | 1.4/1.2 | 2.0 | 2.2 | 42.3 | 4751 | 0.268/0.524 |
| 3×95+2×50 | 15/6 | 1.6/1.4 | 2.5 | 2.4 | 49.5 | 6613 | 0.193/0.387 |
| 3×120+2×70 | 18/12 | 1.6/1.4 | 2.5 | 2.5 | 53.6 | 8012 | 0.153/0.268 |
| 3×150+2×70 | 18/12 | 1.8/1.4 | 2.5 | 2.7 | 57.0 | 9114 | 0.124/0.268 |
| 3×185+2×95 | 30/15 | 2.0/1.6 | 2.5 | 2.9 | 63.4 | 11280 | 0.0991/0.193 |
| 3×240+2×120 | 34/18 | 2.2/1.6 | 2.5 | 3.0 | 69.5 | 13842 | 0.0754/0.153 |
| 3×300+2×150 | 34/18 | 2.4/1.8 | 2.5 | 3.3 | 76.4 | 16773 | 0.0601/0.124 |
| 3×400+2×185 | 53/30 | 2.6/2.0 | 3.15 | 3.6 | 86.0 | 21752 | 0.0470/0.0991 |
| 4×2.5+1×1.5 | 1/1 | 0.8/0.8 | 0.8 | 1.8 | 16.7 | 513 | 7.41/12.1 |
| 4×4+1×2.5 | 1/1 | 1.0/0.8 | 1.25 | 1.8 | 19.7 | 799 | 4.61/7.41 |
| 4×6+1×4 | 1/1 | 1.0/1.0 | 1.25 | 1.8 | 21.2 | 966 | 3.08/4.61 |
| 4×10+1×6 | 6/1 | 1.0/1.0 | 1.6 | 1.8 | 24.9 | 1403 | 1.83/3.08 |
| 4×16+1×10 | 6/6 | 1.0/1.0 | 1.6 | 1.8 | 27.3 | 1797 | 1.15/1.83 |
| 4×25+1×16 | 6/6 | 1.2/1.0 | 1.6 | 1.9 | 31.4 | 2420 | 0.727/1.15 |
| 4×35+1×16 | 6/6 | 1.2/1.0 | 1.6 | 1.9 | 33.6 | 2892 | 0.524/1.15 |
| 4×50+1×25 | 6/6 | 1.4/1.2 | 2.0 | 2.1 | 40.0 | 4086 | 0.387/0.727 |
| 4×70+1×35 | 12/6 | 1.4/1.2 | 2.0 | 2.3 | 44.2 | 5208 | 0.268/0.524 |
| 4×95+1×50 | 15/6 | 1.6/1.4 | 2.5 | 2.5 | 51.7 | 7261 | 0.193/0.387 |
| 4×120+1×70 | 18/12 | 1.6/1.4 | 2.5 | 2.6 | 55.7 | 8656 | 0.153/0.268 |
| 4×150+1×70 | 18/12 | 1.8/1.4 | 2.5 | 2.8 | 60.6 | 10202 | 0.124/0.268 |
| 4×185+1×95 | 30/15 | 2.0/1.6 | 2.5 | 2.9 | 66.3 | 12400 | 0.0991/0.193 |
| 4×240+1×120 | 34/18 | 2.2/1.6 | 2.5 | 3.2 | 73.5 | 15408 | 0.0754/0.153 |
| 4×300+1×150 | 34/18 | 2.4/1.8 | 3.15 | 3.4 | 82.2 | 19656 | 0.0601/0.124 |
| 4×400+1×185 | 53/30 | 2.6/2.0 | 3.15 | 3.7 | 90.8 | 24254 | 0.0470/0.0991 |
