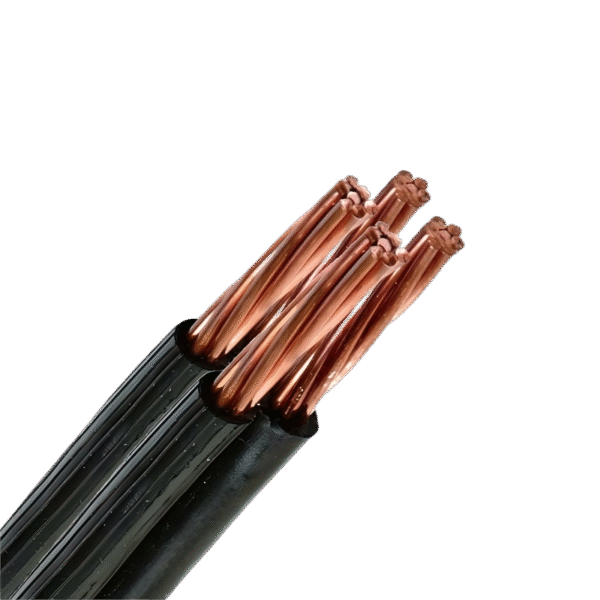

NF2X Cable

0.6/1kv Overhead Aerial Bundled Conductor , Twisted Cable

Conductor: Stranded Copper Conductor

Insulation: XLPE

Voltage: 0.6/1kV

Package: Export wooden drum

NF2X Cable Application

Bundle conductor self-supporting overhead cable, applied for overhead electric power distribution in low voltage metropolitan, suburban and rural networks, for public lighting and house connections. Laid on pillars, consoles and house fronts.

NF2X Cable Standard

HD 626 S1, VDE 0276-626

Abbreviation

N – Standard Cable type
F – Facade Cable
A – Aluminium conductor
2X – XLPE insulation
+N – with ‘Messenger’ Core
Round stranded Conductor for all sizes connection derived from the distribution system.

CONSTRUCTION :

Conductor:Stranded Copper Conductor
Insulation:XLPE (cross-linked polyethylene)
Insulation colour:black

TECHNICAL :

Temperature range: during installation: -5 °C
operating temperature: -30 °C up to +90 °C
at short circuit of max. 5 s: 250 °C
Nominal voltage: Uο/U = 0,6/1 kV
Test voltage: 3.5 kV
Minimal inner bending radius: 12D

Technical Parameter

PHYSICAL PROPERTIES					ELECTRICAL PROPERTIES
Cable Size	Insulation Thickness	Approx.Twisted Diameter	Approx. Net.Weight	Max. Conductor Resistance at 20 ℃	Current Carrying Capacity at 35℃	Calculated Breaking Force
mm2	mm	mm	Kg/km	Ω/km	A	kg
2x6rm	1.2	13	147	3.08	54	394
2x10rm	1.2	14	228	1.83	73	656
2x16rm	1.2	16	350	1.15	97	1,051
4x6rm	1.2	15.7	294	3.08	54	788
4x10rm	1.2	170	455	1.83	73	1,312
4x16rm	1.2	190	700	1.15	97	2,102
4x25rm	1.4	240	1,072	0.727	133	3,284
