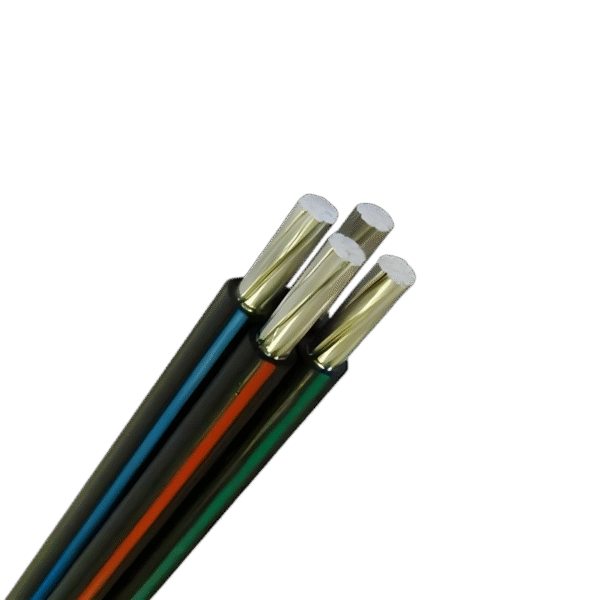

NFA2X-T Cable
Low Voltage Aluminum Bundled Overhead Twist Cable with AAAC Nautral Conductor
Conductor: Stranded All Aluminium Conductor (AAC)
Insulation: XLPE
Voltage: 0.6/1kV
Package: Export wooden drum
NFA2X-T Cable Application
Bundle conductor for overhead energy distribution network without and with public lighting. (between pole to pole).NFA2X-T Cable Standard
HD 626 S1, VDE 0276-626Abbreviation
N – Standard Cable typeF – Facade Cable
A – Aluminium conductor
2X – XLPE insulation
+N – with ‘Messenger’ Core
Round stranded Conductor for all sizes connection derived from the distribution system.
CONSTRUCTION :
Conductor
Phase : Stranded All Aluminium conductor (AAC)
Neutral/Messenger : Stranded All Aluminium Alloy Conductor (AAAC)
Insulation: Extrude of XLPE
Phase : Stranded All Aluminium conductor (AAC)
Neutral/Messenger : Stranded All Aluminium Alloy Conductor (AAAC)
Insulation: Extrude of XLPE
TECHNICAL :
Temperature range: during installation: -5 °C
operating temperature: -30 °C up to +90 °C
at short circuit of max. 5 s: 250 °C
Nominal voltage: Uο/U = 0,6/1 kV
Test voltage: 3.5 kV
Minimal inner bending radius: 12D
operating temperature: -30 °C up to +90 °C
at short circuit of max. 5 s: 250 °C
Nominal voltage: Uο/U = 0,6/1 kV
Test voltage: 3.5 kV
Minimal inner bending radius: 12D
Technical Parameter
| Cable Size | Norminal Thickness of Insulation | Approx Overall Diameter | Approx. Weight of Cable | ||
| Phase | Neutral Messenger | Public Lighting | |||
| mm2 | mm | mm | mm | mm | kg/km |
| 2×25+1×25 | 1.4 | 1.4 | – | 20.5 | 324 |
| 2×35+1×25 | 1.6 | 1.4 | – | 22.8 | 408 |
| 2×50+1×35 | 1.6 | 1.6 | – | 25.8 | 526 |
| 2×70+1×50 | 1.8 | 1.6 | – | 30.1 | 736 |
| 2×95+1×70 | 2.0 | 1.8 | – | 35.0 | 1002 |
| 3×25+1×25 | 1.4 | 1.4 | – | 22.9 | 433 |
| 3×35+1×25 | 1.6 | 1.4 | – | 25.8 | 558 |
| 3×50+1×35 | 1.6 | 1.6 | – | 29.1 | 714 |
| 3×70+1×50 | 1.8 | 1.6 | – | 34.0 | 1,002 |
| 3×95+1×70 | 2.0 | 1.8 | – | 39.5 | 1,364 |
| 3×25+1×25+2×16 | 1.4 | 1.4 | 1.2 | 28.4 | 576 |
| 3×35+1×25+2×16 | 1.6 | 1.4 | 1.2 | 30.8 | 702 |
| 3×50+1×35+2×16 | 1.6 | 1.6 | 1.2 | 35.2 | 858 |
| 3×70+1×50+2×16 | 1.8 | 1.6 | 1.2 | 40.7 | 1,148 |
| 3×95+1×70+2×16 | 2.0 | 1.8 | 1.2 | 47.5 | 1,510 |
| 3×25+1×25+16 | 1.4 | 1.4 | 1.2 | 25.6 | 504 |
| 3×35+1×25+16 | 1.6 | 1.4 | 1.2 | 28.2 | 630 |
| 3×50+1×35+16 | 1.6 | 1.6 | 1.2 | 32.0 | 785 |
| 3×70+1×50+16 | 1.8 | 1.6 | 1.2 | 37.2 | 1,076 |
| 3×95+1×70+16 | 2.0 | 1.8 | 1.2 | 43.3 | 1438 |
