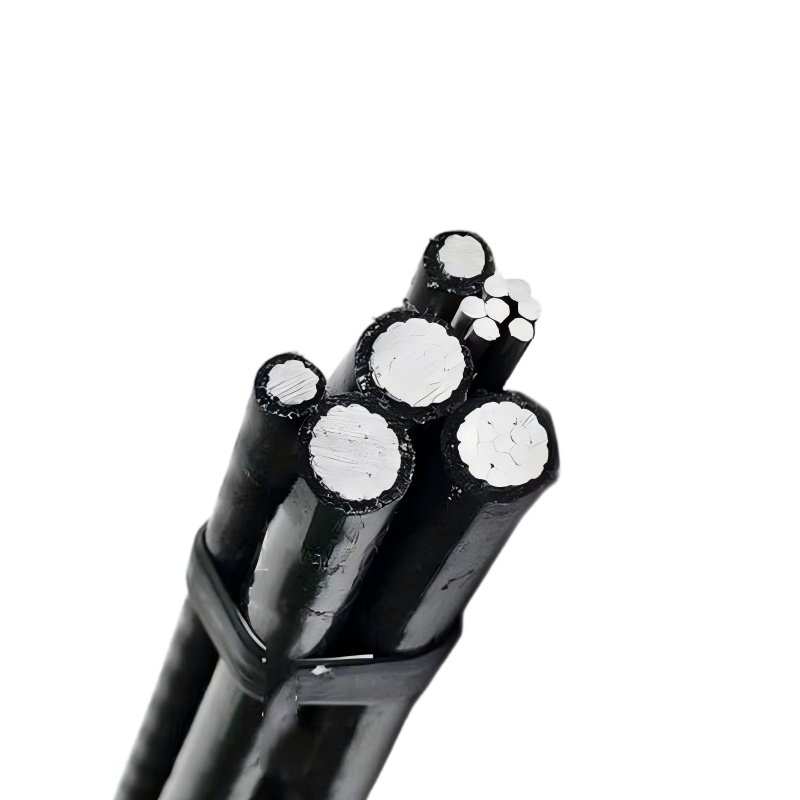

NFC 33-209 Aerial Bundle Conductor ABC Cable 3×70+54.6+2x16mm2
Twist Cable 3X70+54.6+2X16mm2 Aluminum Overhead ABC Preassemble Cable
Conductor: Stranded Round Aluminum Conductor
Insulation : XLPE
Voltage : 0.6/1kV
Number of cores: 3+1+2
Package : Export wooden drum & iron wooden drum or as customer require
ABC Cable 3×70+54.6+2x16mm2 Application
Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight. To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated or 90°C for cross linked.
ABC Cable 3×70+54.6+2x16mm2 Standard
Aerial Bundled Conductors are manufactured to National French Standard NFC 33-209.CONSTRUCTION :
| Phase Conductor | Aluminium conductor, round stranded compressed (RM). |
| Neutral Conductor | Alloy aluminium conductor round stranded compressed (RM). |
| Lighting Conductor | Aluminium conductor, round stranded (RM). |
| Insulation | XLPE |
TECHNICAL DATA :
ABC Cable 3×70+54.6+2x16mm2 Technical Data
Rated voltage | kV | 0.6/1 |
Test voltage | Veff kV/Hz | 4/50 |
Laying temperature | °C | min. -5 |
Operating temperature | °C | -15 ~ +90 |
Conductor temperature | °C | max. +90 |
Short-circuit temperature | °C/s | max. +250 /5 |
Bending radius (min.) | mm | 15 × Ø of cable |
| Aerial Bundle Cable 3×70+1×54.6+2x16mm2 | ||
| Phase conductor | ||
| Cross section area | mm2 | 70 |
| Number of wires | No | 12 |
| Insulation thickness | mm | 1.8 |
| D.C. Resistance at 20℃ | Ω/km | 0.443 |
| Messager conductor | ||
| Cross section area | mm2 | 54.6 |
| Number of wires | No | 7 |
| Insulation thickness | mm | 1.6 |
| D.C. Resistance at 20℃ | Ω/km | 0.63 |
| Minium Breaking Strength | daN | 1660 |
| Public lighting conductor | ||
| Cross section area | mm2 | 16 |
| Number of wires | No | 7 |
| Insulation thickness | mm | 1.2 |
| D.C. Resistance at 20℃ | Ω/km | 1.91 |
| Cable Overall Diameter | mm | 38 |
| Cable Weight | kg/km | 1085 |
