NFC 33-209 Aerial Bundle Conductor ABC Cable 4x25mm2

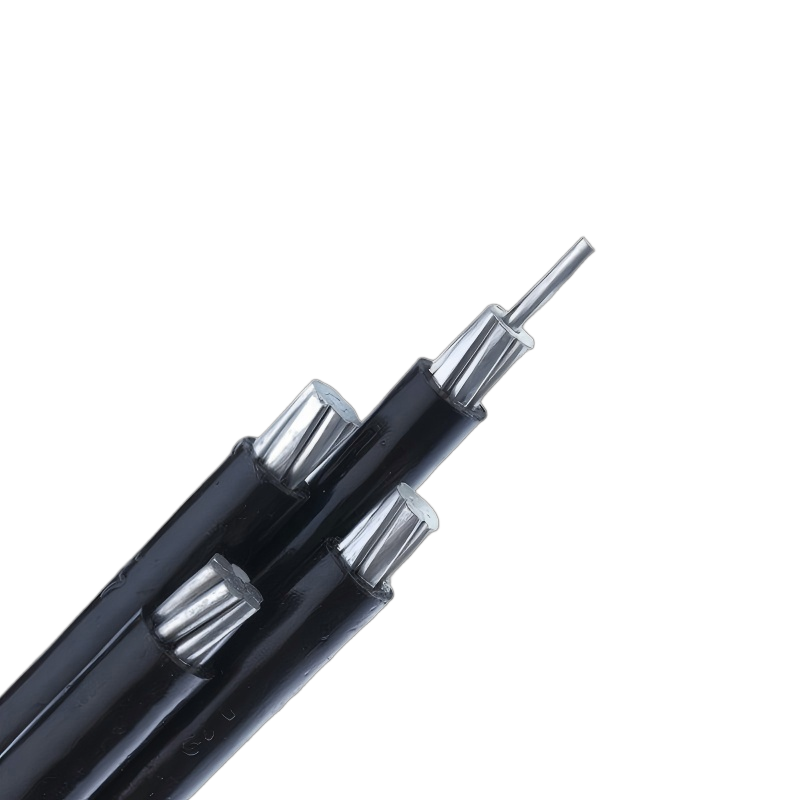

4x25mm2 ABC Cable Overhead Line with Aluminum Conductor XLPE Insulation
Conductor: Stranded Round Aluminum Conductor
Insulation : XLPE
Voltage : 0.6/1kV
Number of cores: 4 cores
Package : Export wooden drum & iron wooden drum or as customer require
ABC Cable 4x25mm2 Application
4x25mm2 ABC Cable Aerial Bundle Cable Aluminum Insulated Twist Cable used to supply power,usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance.To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated or 90°C for cross linked.
ABC Cable 4x25mm2 Standard
Aerial Bundled Conductors are manufactured to National French Standard NFC 33-209.
Phase Conductor | Aluminium conductor, round stranded compressed (RM). |
Insulation | XLPE & HDPE |
Assembly | Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded. |
TECHNICAL DATA :
Rated voltage | kV | 0.6/1 |
Test voltage | Veff kV/Hz | 4/50 |
Laying temperature | °C | min. -5 |
Operating temperature | °C | -15 ~ +90 |
Conductor temperature | °C | max. +90 |
Short-circuit temperature | °C/s | max. +250 /5 |
Bending radius (min.) | mm | 15 × Ø of cable |
TECHNICAL DATA SHEET | |||
Câble préassemblé torsadé 4x25mm² | |||
No. | Description | Unit | Data Provided |
1 | Standards Reference |
| IEC 60502-1,NFC 33-209 |
2 | Voltage | Volt | 600/1000 |
3 | Type of cable | mm² | 4×25 |
4 | Material of conductor |
| Stranded Aluminum wire |
Stranding no. of wires in conductor | No. | 7 | |
Approx.diameter of conductor | mm | 6.0 | |
5 | Material of insulation |
| Black XLPE |
Norminal thickness of insulation | mm | 1.4 | |
Approx.diameter of insulated conductor | mm | 8.80 | |
6 | Approx.overall diameter of completed cable | mm | 21.7 |
7 | Maximum d.c. resistance of conductor of cable at 20°C | ohm/km | 1.2 |
8 | Approx.weight of completed cable | kg/km | 404 |
