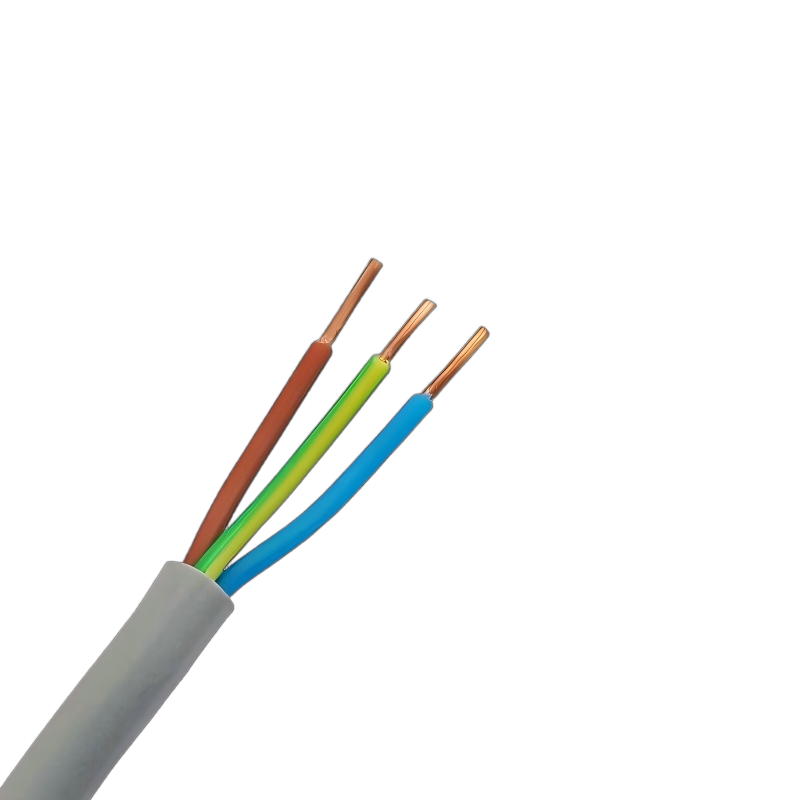

NMY NYM-J NYM-O Cable 300/500V PVC Insulation PVC sheath Industrial Cable
NMY NYM-J NYM-O Cable
Construction: Cu / Pvc / Pvc
Standard: VDE 0250
Max. operating temperature: +70°C
Max. curcuit temperature: 160°C
Min. bending radius: 12xD
Cable Type: YVV Cable
NMY NYM-J NYM-O Cable Application
Installation cable suitable for household and industrial usage. Laid on or under plaster, in walls or concrete, without special mechanical protection, but not in dry or pre-stressed concrete. Suitable for dry, same as damp or wet environment; for internal or external application (only if the cable is protected against direct sunlight).NMY NYM-J NYM-O Cable Standard
DIN VDE 0250, VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1, CE Low Voltage Directive 73/23/EEC and 93/68/EEC,CONSTRUCTION :
NMY NYM-J NYM-O Cable Construction
Conductor : bare copper conductor acc. to IEC 60228 / HD 383 / DIN VDE 0295
class 1 : solid (RE construction)
class 2 : multi wire stranded (RM construction)
Insulation : PVC compound TI1 acc. to DIN VDE 0281 part 1 / HD 21.1 S4
Filler : cores enveloped in non-vulcanized rubber or plastic compound
Sheath : PVC compound TM1 acc. to DIN VDE 0281 part 1 / HD 21.1 S4
Sheath colour : grey (RAL 7035)
TECHNICAL :
NMY NYM-J NYM-O Cable Technical Features
Voltage: Nominal voltage U0 300 V, Nominal voltage U 500 VMax. conductor temperature: 70 °C
Operating temperature: Flexible: -5°C to +70 °C, Fixed: – 40°C to +70 °C
Minimum bending radius:
1 core: 15 x diameter
3 core and above: 4 x overall diameter
Max short circuit temp: 160 °C
Standards: Flame retardant Acc. EN 50265-2-1
| Construction No. x mm2 | Outer Diameter cca. mm | Cu Weight kg / km | Cable weight cca. kg / km |
| 1 x 1.5 | 5,1 | 14,4 | 40 |
| 1 x 2.5 | 5,7 | 24 | 65 |
| 1 x 4 | 6,3 | 38 | 80 |
| 1 x 6 | 6,8 | 58 | 105 |
| 1 x 10 | 8 | 96 | 155 |
| 1 x 16 | 9,1 | 154 | 230 |
| 2 x 1.5 | 8,8 | 29 | 115 |
| 2 x 2.5 | 10 | 48 | 145 |
| 3 x 1.5 | 8,5 | 43 | 120 |
| 3 x 2.5 | 9,9 | 72 | 165 |
| 3 x 4 | 10,8 | 115 | 265 |
| 3 x 6 | 12,2 | 173 | 315 |
| 4 x 1.5 | 9,3 | 58 | 145 |
| 4 x 2.5 | 10,7 | 96 | 205 |
| 4 x 4 | 12,8 | 154 | 305 |
| 4 x 6 | 13,8 | 230 | 385 |
| 4 x 10 | 16,8 | 384 | 605 |
| 4 x 16 | 19,2 | 614 | 1025 |
| 4 x 25 | 24 | 960 | 1580 |
| 4 x 35 | 26 | 1344 | 2075 |
| 5 x 1.5 | 10,2 | 72 | 170 |
| 5 x 2.5 | 11,7 | 120 | 245 |
| 5 x 4 | 13,9 | 192 | 370 |
| 5 x 6 | 15,1 | 288 | 460 |
| 5 x 10 | 18,3 | 480 | 740 |
| 5 x 16 | 23,6 | 68 | 1275 |
| 5 x 25 | 28,5 | 1200 | 1945 |
