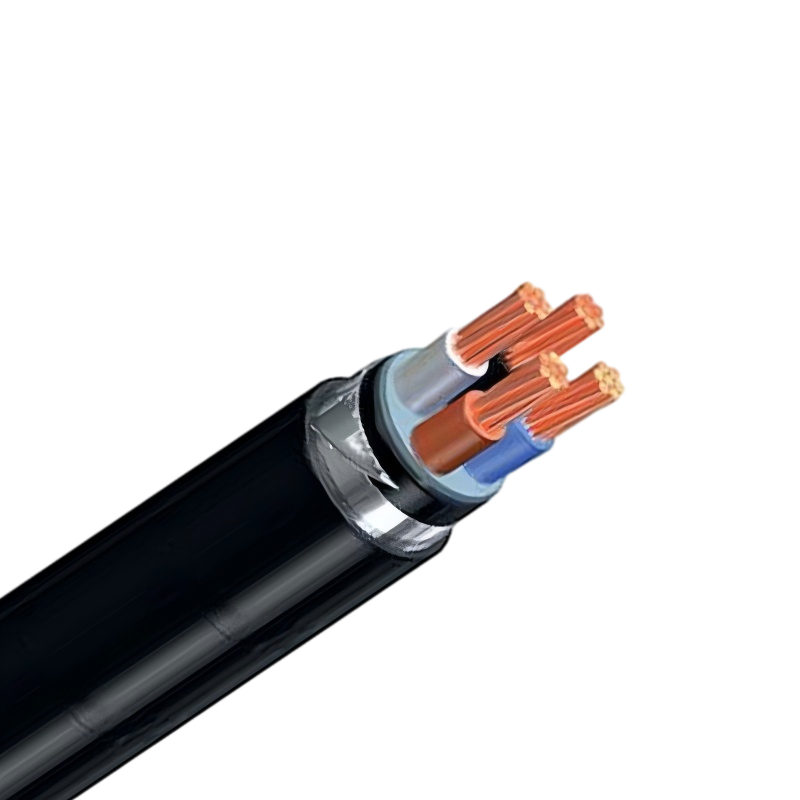

NYBY / HFG Cable
Low Voltage Copper PVC Cable with Double Galvanized Steel Tape Armoured
Conductor: Copper
Insulation: PVC
Armour: Double galvanized steel tape
Sheath: Polyvinylchloride compound PVC 5V-90
Voltage : 0.6/1kV
Package : Export wooden drum & iron wooden drum or as customer require
Cable Application:
NYBY HFG cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.
Cable Standards:
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
CONSTRUCTION :
Cable Construction
Insulation: Polyvinyl chloride PVC
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Inner sheath: Polyvinyl chloride PVC
Armour: Double galvanized steel tape
Outer sheath: Polyvinyl chloride PVC
TECHNICAL :
Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV
Temperature Rating:
Flexed: 5°C to +70°C
Fixed: -35°C to +70°C
Maximum Short Circuit Temperature:
+160°C (max 5 seconds)
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV
Temperature Rating:
Flexed: 5°C to +70°C
Fixed: -35°C to +70°C
Maximum Short Circuit Temperature:
+160°C (max 5 seconds)
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter
| 0.6/1kV-1 core copper conductor PVC insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. weight | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 1X10 | 1.0 | 0.2 | 1.8 | 12.4 | 290 | 1.83 | 50 | 70 |
| 1X16 | 1.0 | 0.2 | 1.8 | 13.5 | 371 | 1.15 | 66 | 92 |
| 1X25 | 1.2 | 0.2 | 1.8 | 15.2 | 489 | 0.727 | 85 | 115 |
| 1X35 | 1.2 | 0.2 | 1.8 | 15.8 | 595 | 0.524 | 105 | 140 |
| 1X50 | 1.4 | 0.2 | 1.8 | 17.5 | 753 | 0.387 | 125 | 175 |
| 1X70 | 1.4 | 0.2 | 1.8 | 19.1 | 974 | 0.268 | 160 | 205 |
| 1X95 | 1.6 | 0.2 | 1.8 | 21.1 | 1260 | 0.193 | 195 | 250 |
| 1X120 | 1.6 | 0.2 | 1.8 | 22.5 | 1522 | 0.153 | 235 | 290 |
| 1X150 | 1.8 | 0.2 | 1.8 | 24.5 | 1858 | 0.124 | 265 | 325 |
| 1X185 | 2.0 | 0.2 | 1.8 | 26.4 | 2230 | 0.0991 | 300 | 365 |
| 1X240 | 2.2 | 0.2 | 1.9 | 29.2 | 2835 | 0.0754 | 355 | 420 |
| 1X300 | 2.4 | 0.2 | 1.9 | 32.0 | 3481 | 0.0601 | 410 | 475 |
| 1X400 | 2.6 | 0.5 | 2.1 | 37.3 | 4848 | 0.047 | 480 | 540 |
| 1X500 | 2.8 | 0.5 | 2.2 | 41.5 | 6056 | 0.0366 | 550 | 610 |
| 1X630 | 2.8 | 0.5 | 2.3 | 45.1 | 7406 | 0.0283 | 645 | 735 |
| 0.6/1kV-2 core copper conductor PVC insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. weight | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 2X2.5 | 0.8 | 0.2 | 1.8 | 13.5 | 249 | 7.41 | – | – |
| 2X4 | 1 | 0.2 | 1.8 | 15.3 | 362 | 4.61 | – | – |
| 2X6 | 1 | 0.2 | 1.8 | 16.3 | 427 | 3.08 | – | – |
| 2X10 | 1 | 0.2 | 1.8 | 19.0 | 572 | 1.83 | 50 | – |
| 2X16 | 1 | 0.2 | 1.8 | 21.2 | 749 | 1.15 | 66 | – |
| 2X25 | 1.2 | 0.2 | 1.8 | 24.5 | 1012 | 0.727 | 85 | – |
| 2X35 | 1.2 | 0.2 | 1.8 | 25.8 | 1235 | 0.524 | 105 | 105 |
| 2X50 | 1.4 | 0.2 | 1.9 | 29.3 | 1594 | 0.387 | 125 | 125 |
| 2X70 | 1.4 | 0.2 | 2.0 | 32.7 | 2089 | 0.268 | 160 | 155 |
| 2X95 | 1.6 | 0.5 | 2.1 | 38.9 | 3170 | 0.193 | 195 | 185 |
| 2X120 | 1.6 | 0.5 | 2.2 | 41.9 | 3793 | 0.153 | 235 | 215 |
| 2X150 | 1.8 | 0.5 | 2.4 | 45.9 | 4602 | 0.124 | 265 | 235 |
| 2X185 | 2 | 0.5 | 2.5 | 50.6 | 5569 | 0.0991 | 300 | 265 |
| 0.6/1kV-3 core copper conductor PVC insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. weight | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 3X2.5 | 0.8 | 0.2 | 1.8 | 14.3 | 323 | 7.41 | – | – |
| 3X4 | 1.0 | 0.2 | 1.8 | 16.1 | 422 | 4.61 | – | – |
| 3X6 | 1.0 | 0.2 | 1.8 | 17.3 | 509 | 3.08 | – | – |
| 3X10 | 1.0 | 0.2 | 1.8 | 19.9 | 698 | 1.83 | 50 | 70 |
| 3X16 | 1.0 | 0.2 | 1.8 | 22.3 | 935 | 1.15 | 66 | 92 |
| 3X25 | 1.2 | 0.2 | 1.8 | 25.9 | 1284 | 0.727 | 85 | 115 |
| 3X35 | 1.2 | 0.2 | 1.8 | 27.2 | 1599 | 0.524 | 105 | 140 |
| 3X50 | 1.4 | 0.2 | 1.9 | 31.1 | 2093 | 0.387 | 125 | 175 |
| 3X70 | 1.4 | 0.2 | 2.0 | 35.2 | 2817 | 0.268 | 160 | 205 |
| 3X95 | 1.6 | 0.5 | 2.2 | 41.3 | 4141 | 0.193 | 195 | 250 |
| 3X120 | 1.6 | 0.5 | 2.3 | 44.6 | 5003 | 0.153 | 235 | 290 |
| 3X150 | 1.8 | 0.5 | 2.5 | 49.4 | 6167 | 0.124 | 265 | 325 |
| 3X185 | 2 | 0.5 | 2.6 | 54.0 | 7426 | 0.0991 | 300 | 365 |
| 3X240 | 2.2 | 0.5 | 2.8 | 60.6 | 9480 | 0.0754 | 355 | 420 |
| 3X300 | 2.4 | 0.5 | 3.0 | 66.4 | 11584 | 0.0601 | 410 | 475 |
| 0.6/1kV-4 core copper conductor PVC insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. weight | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 4X2.5 | 0.8 | 0.2 | 1.8 | 14.9 | 382 | 7.41 | – | – |
| 4X4 | 1 | 0.2 | 1.8 | 17.2 | 497 | 4.61 | – | – |
| 4X6 | 1 | 0.2 | 1.8 | 18.5 | 607 | 3.08 | – | – |
| 4X10 | 1 | 0.2 | 1.8 | 21.5 | 848 | 1.83 | 50 | 70 |
| 4X16 | 1 | 0.2 | 1.8 | 24.1 | 1148 | 1.15 | 66 | 92 |
| 4X25 | 1.2 | 0.2 | 1.8 | 28.1 | 1590 | 0.727 | 85 | 115 |
| 4X35 | 1.2 | 0.2 | 1.9 | 29.8 | 2018 | 0.524 | 105 | 140 |
| 4X50 | 1.4 | 0.2 | 2.0 | 34.6 | 2690 | 0.387 | 125 | 175 |
| 4X70 | 1.4 | 0.5 | 2.2 | 40.0 | 3980 | 0.268 | 160 | 205 |
| 4X95 | 1.6 | 0.5 | 2.4 | 45.4 | 5230 | 0.193 | 195 | 250 |
| 4X120 | 1.6 | 0.5 | 2.5 | 49.5 | 6403 | 0.153 | 235 | 290 |
| 4X150 | 1.8 | 0.5 | 2.6 | 54.4 | 7848 | 0.124 | 265 | 325 |
| 4X185 | 2 | 0.5 | 2.8 | 60.0 | 9545 | 0.0991 | 300 | 365 |
| 4X240 | 2.2 | 0.5 | 3.0 | 66.9 | 12140 | 0.0754 | 355 | 420 |
| 4X300 | 2.4 | 0.5 | 3.2 | 73.4 | 14881 | 0.0601 | 410 | 475 |
| 0.6/1kV-5 core copper conductor PVC insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. weight | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 5X2.5 | 0.8 | 0.2 | 1.8 | 16.1 | 435 | 7.41 | – | – |
| 5X4 | 1 | 0.2 | 1.8 | 18.4 | 585 | 4.61 | – | – |
| 5X6 | 1 | 0.2 | 1.8 | 19.9 | 713 | 3.08 | – | – |
| 5X10 | 1 | 0.2 | 1.8 | 23.2 | 1013 | 1.83 | 50 | 70 |
| 5X16 | 1 | 0.2 | 1.8 | 26.2 | 1372 | 1.15 | 66 | 92 |
| 5X25 | 1.2 | 0.2 | 1.9 | 30.8 | 1926 | 0.727 | 85 | 115 |
| 5X35 | 1.2 | 0.2 | 2.0 | 32.7 | 2456 | 0.524 | 105 | 140 |
| 5X50 | 1.4 | 0.5 | 2.2 | 39.3 | 3664 | 0.387 | 125 | 175 |
| 5X70 | 1.4 | 0.5 | 2.3 | 43.9 | 4826 | 0.268 | 160 | 205 |
| 5X95 | 1.6 | 0.5 | 2.5 | 50.4 | 6423 | 0.193 | 195 | 250 |
| 5X120 | 1.6 | 0.5 | 2.6 | 54.4 | 7813 | 0.153 | 235 | 290 |
| 5X150 | 1.8 | 0.5 | 2.8 | 60.3 | 9665 | 0.124 | 265 | 325 |
| 5X185 | 2 | 0.5 | 3.0 | 66.1 | 11692 | 0.0991 | 300 | 365 |
| 5X240 | 2.2 | 0.5 | 3.3 | 73.9 | 14909 | 0.0754 | 355 | 420 |
| 5X300 | 2.4 | 0.5 | 3.5 | 81.5 | 18394 | 0.0601 | 410 | 475 |
| 0.6/1kV-3+1 core copper conductor PVC insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. weight | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 3*4+1*2.5 | 1.0/0.8 | 0.2 | 1.8 | 16.7 | 667 | 4.61/7.41 | – | – |
| 3*6+1*4 | 1.0/1.0 | 0.2 | 1.8 | 18.2 | 581 | 3.08/4.61 | – | – |
| 3*10+1*6 | 1.0/1.0 | 0.2 | 1.8 | 20.8 | 787 | 1.83/3.08 | 50 | 70 |
| 3*16+1*10 | 1.0/1.0 | 0.2 | 1.8 | 23.5 | 1074 | 1.15/1.83 | 66 | 92 |
| 3*25+1*16 | 1.2/1.0 | 0.2 | 1.8 | 27.2 | 1497 | 0.727/1.15 | 85 | 115 |
| 3*35+1*16 | 1.2/1.0 | 0.2 | 1.8 | 28.4 | 1795 | 0.524/1.15 | 105 | 140 |
| 3*50+1*25 | 1.4/1.2 | 0.2 | 2.0 | 32.8 | 2396 | 0.387/0.727 | 125 | 175 |
| 3*70+1*35 | 1.4/1.2 | 0.5 | 2.1 | 38.0 | 3584 | 0.268/0.524 | 160 | 205 |
| 3*95+1*50 | 1.6/1.4 | 0.5 | 2.3 | 43.0 | 4669 | 0.193/0.387 | 195 | 250 |
| 3*120+1*70 | 1.6/1.4 | 0.5 | 2.4 | 47.3 | 5825 | 0.153/0.268 | 235 | 290 |
| 3*150+1*70 | 1.8/1.4 | 0.5 | 2.5 | 51.0 | 6804 | 0.124/0.268 | 265 | 325 |
| 3*185+1*95 | 2.0/1.6 | 0.5 | 2.7 | 56.2 | 8430 | 0.0991/0.193 | 300 | 365 |
| 3*240+1*120 | 2.2/1.6 | 0.5 | 2.9 | 62.7 | 10701 | 0.0754/0.153 | 355 | 420 |
| 3*300+1*150 | 2.4/1.8 | 0.5 | 3.1 | 68.9 | 13115 | 0.0601/0.124 | 410 | 475 |
| 0.6/1kV-4+1 core copper conductor PVC insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. weight | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 4*4+1*2.5 | 1.0/0.8 | 0.2 | 1.8 | 18.0 | 545 | 4.61/7.41 | – | – |
| 4*6+1*4 | 1.0/1.0 | 0.2 | 1.8 | 19.6 | 683 | 3.08/4.61 | – | – |
| 4*10+1*6 | 1.0/1.0 | 0.2 | 1.8 | 22.5 | 941 | 1.83/3.08 | 50 | 70 |
| 4*16+1*10 | 1.0/1.0 | 0.2 | 1.8 | 25.6 | 1295 | 1.15/1.83 | 66 | 92 |
| 4*25+1*16 | 1.2/1.0 | 0.2 | 1.8 | 29.8 | 1827 | 0.727/1.15 | 85 | 115 |
| 4*35+1*16 | 1.2/1.0 | 0.2 | 1.9 | 31.4 | 2231 | 0.524/1.15 | 105 | 140 |
| 4*50+1*25 | 1.4/1.2 | 0.5 | 2.1 | 37.9 | 3383 | 0.387/0.727 | 125 | 175 |
| 4*70+1*35 | 1.4/1.2 | 0.5 | 2.2 | 42.0 | 4432 | 0.268/0.524 | 160 | 205 |
| 4*95+1*50 | 1.6/1.4 | 0.5 | 2.4 | 48.3 | 5919 | 0.193/0.387 | 195 | 250 |
| 4*120+1*70 | 1.6/1.4 | 0.5 | 2.6 | 52.4 | 7232 | 0.153/0.268 | 235 | 290 |
| 4*150+1*70 | 1.8/1.4 | 0.5 | 2.7 | 56.8 | 8524 | 0.124/0.268 | 265 | 325 |
| 4*185+1*95 | 2.0/1.6 | 0.5 | 2.9 | 63.0 | 10633 | 0.0991/0.193 | 300 | 365 |
| 4*240+1*120 | 2.2/1.6 | 0.5 | 3.1 | 70.1 | 13463 | 0.0754/0.153 | 355 | 420 |
| 4*300+1*150 | 2.4/1.8 | 0.5 | 3.4 | 77.3 | 16582 | 0.0601/0.124 | 410 | 475 |
| 0.6/1kV-3+2 core copper conductor PVC insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. weight | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 3*4+2*2.5 | 1.0/0.8 | 0.2 | 1.8 | 17.5 | 517 | 4.61/7.41 | – | – |
| 3*6+2*4 | 1.0/1.0 | 0.2 | 1.8 | 19.3 | 657 | 3.08/4.61 | – | – |
| 3*10+2*6 | 1.0/1.0 | 0.2 | 1.8 | 21.8 | 884 | 1.83/3.08 | 50 | 70 |
| 3*16+2*10 | 1.0/1.0 | 0.2 | 1.8 | 25.0 | 1223 | 1.15/1.83 | 66 | 92 |
| 3*25+2*16 | 1.2/1.0 | 0.2 | 1.9 | 28.9 | 1718 | 0.727/1.15 | 85 | 115 |
| 3*35+2*16 | 1.2/1.0 | 0.2 | 1.9 | 30.0 | 2017 | 0.524/1.15 | 105 | 140 |
| 3*50+2*25 | 1.4/1.2 | 0.2 | 2.1 | 35.6 | 2774 | 0.387/0.727 | 125 | 175 |
| 3*70+2*35 | 1.4/1.2 | 0.5 | 2.3 | 40.2 | 4040 | 0.268/0.524 | 160 | 205 |
| 3*95+2*50 | 1.6/1.4 | 0.5 | 2.4 | 45.8 | 5329 | 0.193/0.387 | 195 | 250 |
| 3*120+2*70 | 1.6/1.4 | 0.5 | 2.6 | 50.5 | 6666 | 0.153/0.268 | 235 | 290 |
| 3*150+2*70 | 1.8/1.4 | 0.5 | 2.7 | 53.8 | 7629 | 0.124/0.268 | 265 | 325 |
| 3*185+2*95 | 2.0/1.6 | 0.5 | 2.9 | 60.2 | 9630 | 0.0991/0.193 | 300 | 365 |
| 3*240+2*120 | 2.2/1.6 | 0.5 | 3.1 | 66.4 | 12088 | 0.0754/0.153 | 355 | 420 |
| 3*300+2*150 | 2.4/1.8 | 0.5 | 3.3 | 73.0 | 14754 | 0.0601/0.124 | 410 | 475 |
