Outdoor Weather-proof PVC Insulated Wire OW
Wire OW
Conductor : Copper Conductor
Insulation : PVC
Voltage : 450/450V
Number of cores: Single Core
Package : Export Wooden Case & Pallet
Outdoor Weather-proof PVC Insulated Wire OW Application
– Used in low-voltage manufactured electrical cables. Uses hard-drawn copper wires for electrical use as the conductor and is sheathed in PCV, making it more durable than previous insulated cables.
Outdoor Weather-proof PVC Insulated Wire OW Standards:
KS 3331CONSTRUCTION :
Outdoor Weather-proof PVC Insulated Wire OW Construction
– Conductor : Hard-drawn copper wire for electrical use
– Insulator : PVC
– Insulator color : Black
– Highest temperature : 70 ℃
SOLID CONDUCTOR :
| Conductor | Nominal Insulation Thickness | Overall Diameter | Max. Conductor Resistance at 20℃ | Test Voltage | Min. Tensile Load | Approx. Weight | Standard Length | |
| Diameter | Nominal Sectional Area | |||||||
| mm | mm2 | mm | mm | Ω/km | V/5min | N | kg/km | m |
| 2.0 | 3.142 | 0.4 | 2.8 | 5.83 | 2500 | 1,310 | 32 | 300 |
| 2.6 | 5.309 | 0.5 | 3.6 | 3.45 | 2500 | 2,180 | 54 | 300 |
| 3.2 | 8.042 | 0.6 | 4.4 | 2.28 | 2500 | 3,260 | 81 | 200 |
| 4.0 | 12.57 | 1.0 | 6.0 | 1.46 | 2500 | 4,890 | 135 | 200 |
| 5.0 | 19.64 | 1.2 | 7.4 | 0.932 | 2500 | 7,450 | 210 | 200 |
| Conductor | Nominal Insulation Thickness | Overall Diameter | Max. Conductor Resistance at 20℃ | Test Voltage | Min. Tensile Load | Approx. Weight | Standard Length | ||
| Nominal Sectional Area | Number & Diameter of Wire | Outer Diameter | |||||||
| mm2 | No./mm | mm | mm | mm | Ω/km | V/5min | N | kg/km | m |
| 14 | 7/1.6 | 4.8 | 1.0 | 6.8 | 1.35 | 2500 | 5,620 | 160 | 300 |
| 22 | 7/2.0 | 6.0 | 1.2 | 8.4 | 0.849 | 2500 | 8,710 | 250 | 300 |
| 38 | 7/2.6 | 7.8 | 1.4 | 11.0 | 0.502 | 2500 | 14,500 | 410 | 300 |
| 60 | 19/2.0 | 10.0 | 1.4 | 13.0 | 0.313 | 2500 | 23,600 | 630 | 300 |
| 100 | 19/2.6 | 13.0 | 1.5 | 16.0 | 0.185 | 2500 | 39,300 | 1030 | 300 |
YOU MAY LIKE
Related products
-
PVC Electrical Wire
NMY NYM-J NYM-O Cable 300/500V PVC Insulation PVC sheath Industrial Cable
-
PVC Electrical Wire

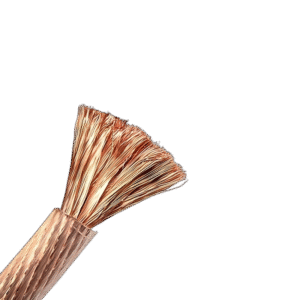

Clear Flexible Grounding Cable Earthing Copper Wire with Transparent PVC Jacket
-
PVC Electrical Wire

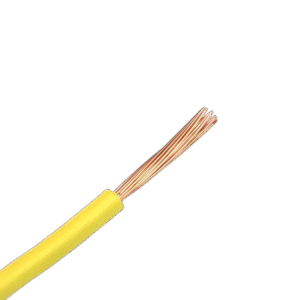

PVC Insulated Flexible Wire (60227 KS IEC 02) 450/750V KIV
-
PVC Electrical Wire
Heat-Resistant PVC Insulated Wire (60227 KS IEC 07) 300/500V HIV
-
PVC Electrical Wire

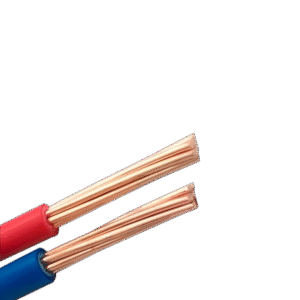

PVC Insulated Wire (60227 KS IEC 01), 450/750V IV
-
