Parallel Drop Wire Telephone Cable CCS Copper Clad Steel Conductor with PVC insulation
Copper Clad Steel Parallel Drop Wire
Conductors: CCS ( Copper clad steel )
Insulation: PVC
Temperature range during operation: -30°C – +70°C
Temperature range during installation: -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter
Copper Clad Steel Parallel Drop Wire Applications
The drop wires are designed for extending an open wire line or distribution pairs from a pole or cable terminal to a building. The drop wires are to be installed between distribution point and telephone subscriber premises.
Copper Clad Steel Parallel Drop Wire Standard:
CW 1166 (Drop Wires No. 1)
CW 208 (Drop Wires No. 2)
CW 1247 (Drop Wires No. 6)
CW 1320A (Drop Wires No. 8)
Conductors | Insulation |
Solid cadmium copper of 0.91mm to BS 4807 (Drop Wires No. 1) | PVC to BS 6746 T1 (Drop Wires No. 1) |
Solid copper covered steel of 0.71mm to BS 4807 (Drop Wires No. 2) | PVC to BS 6746 T2 (Drop Wires No. 2) |
Solid copper covered steel of 0.81mm to BS 4807 (Drop Wires No. 6) | PVC to BS 7878 T1 (Drop Wires No. 6) |
Solid cadmium copper of 1.14mm to BS 4807 (Drop Wires No. 8) | PVC to BS 6746 T1 (Drop Wires No. 8) |
Cable Core Assembly: Two conductors are extruded parallel, figure-8 type. | |
Construction :
Copper Clad Steel Parallel Drop Wire Construction
| Conductors | Two conductors made of copper covered steel wires serve dually as conductor and strength members. |
| Bonding | Bonding of the insulation to the conductors is made to assure the full conductor strength is transferred to the wire support clamps. |
| Insulation | Conductors are laid in a parallel configuration and covered with low density or medium density polyethylene (PE) or polyvinyl chloride (PVC). |
| Cable Code | Number of Cores | Minimum Insulation Thickness | Maximum Cable Dimensions Diameter X Height | Nominal Weight |
|---|---|---|---|---|
| mm | mm | Kg/km | ||
| 0.91mm Conductor, 2.41mm Insulated Wire | ||||
| TP1166-Y-1P091-DW1 | 2 | 0.75 | 2.7×5.6 | 25 |
| 0.71mm Conductor, 2.75mm Insulated Wire | ||||
| TP208-Y-1P071-DW2 | 2 | 1.02 | 2.75×6.0 | 20 |
| 0.81mm Conductor, 2.41mm Insulated Wire | ||||
| TP1247-Y-1P081-DW6 | 2 | 0.8 | 2.5×5.4 | 23 |
| 1.14mm Conductor, 4.18mm Insulated Wire | ||||
| TP1320A-Y-1P114-DW8 | 2 | 1.52 | 4.44×9.4 | 34 |
YOU MAY LIKE
Related products
-
PVC Parallel Drop Wires

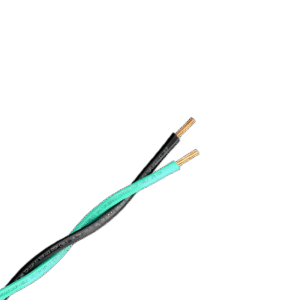

PVC Insulated Drop Service Wire DV
-
