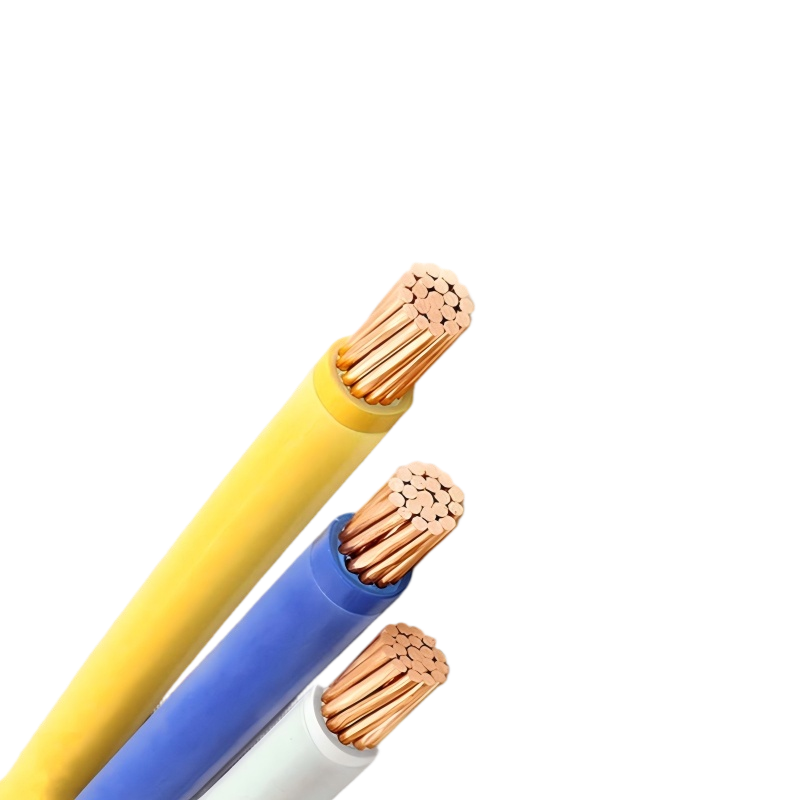

THHN THWN Wire 8.0mm2 14mm2 22mm2 30mm2 38mm2 50mm2 60mm2 80mm2 100mm2 Philippines

THHN THWN Wire 8.0mm2 14mm2 22mm2 30mm2 38mm2 50mm2 60mm2 80mm2 100mm2 Philippines

Name : THHN THWN Wire 8.0mm2 14mm2 22mm2 30mm2 38mm2 50mm2 60mm2 80mm2 100mm2 Philippines

Conductor Copper Conductor ( Solid , Stranded )

Insulation : PVC

Sheath: Nylon

Number of cores: Single Core

Package : 100 Meters One Roll with Export Wooden Case & Pallet

Send Inquiry
Whatsapp
THHN Wire Application

The copper conductors type THHN are used for power and lighting circuits in industrial, commercial and residential facilities, they are specially suitable for special installations through difficult ducts and to be used in abrasive zones or polluted with oils, grease, gasoline, etc. and other corrosive chemical substances as paints, solvents, etc., This type of conductor when it is used as THHN it can be used in dry places with maximum temperature of operation of 90 ºC. Regarding the voltage of service, for all the applications, it is of 600 V.





Standard :
THHN Wire Standards:

The copper conductors type THHN meets the following specifications and standards:
• ASTM B-3:Copper Annealed or Soft Wires.
• ASTM B-8:Copper Stranded Conductors in Concentric Layers, Hard, Semi-hard or Soft.
• UL – 83:Wires and Cables Insulated with Thermoplastic Material.
• NEMA WC-5:Wires and Cables Insulated with Thermoplastic Material (ICEA S-61-402) for Transmission and Distribution of Electric Power.
Construction :
 THHN Wire Construction

The conductors type THHN or THWN-2 can be solid or stranded and they are built with soft temper copper, they are also insulated with an uniform layer of Chloride of Polyvinyl (PVC) thermoplastic material resistant to the moisture and the heat, over which it is applied a protector coating of Nylon or Polyamide. They can be supplied in varied colors according to their size and with different packaging.

Thhn wire structure

Copper Conductor
Insulation of Thermoplastic Material, PVC 600V. – 90 °C
Nylon Jacket

Technical Parameter

SIZE OF CONDUCTORNo.&Nominal Diameter of WireWall ThicknessApproximate Overall DiameterMinimum Insulation Resistance*AmpacityCable Nominal Weight
MMApproximate AWGMMMMMMM-Ohm-Km90℃ wet90 ℃ dryKG/KM
Solid PVCNylon
1.6mm141×1.60mm0.40.102.60130353522.62
2.0 mm121×2.00mm0.40.103.00110404033.57
2.6 mm101×2.60mm0.50.10 3.80120555555.78
3.2 mm81×3.20mm0.80.135.06120757588.33
Stranded
2.0mm214/77X0.60mm0.40.102.80130303523.51
3.5mm212/77×0.80mm0.40.103.40110354039.12
5.5mm210/77×1.00mm0.50.104.20120505560.56
8.0mm28/77×1.20mm0.80.135.46120657591.95
14mm26/77×1.60mm0.80.136.6610095105151.77
22mm24/77×2.00mm1.00.158.30100130140236.65
30mm22/77×2.30mm1.00.159.20100160170306.50
38mm21-1919×1.60mm1.30.1810.96100185195409.82
50mm21/0-1919×1.80mm1.30.1811.96100220235509.05
60mm22/0-1919×2.00mm1.30.1812.9680250260618.96
80mm23/0-1919×2.30mm1.30.1814.9680300320804.44
100mm24/0-1919×2.60mm1.30.1815.96803553701013.94
125mm2250MCM37×2.10mm1.60.1818.26804004201296.37
150mm2300MCM37×2.30mm1.60.2019.7804404751542.02
 350MCM37×2.47mm1.60.2020.90605055231783.07
200mm2400MCM37×2.60mm1.60.2021.80605405701946.72
 500MCM37×2.95mm1.60.2024.25606206552486.02
250mm2500MCM61×2.30mm1.60.2024.30606206552437.34
 600MCM61×2.52mm1.80.2326.76606907102995.93
325mm2650MCM61×2.60mm1.80.2327.46607207703191.58
 750MCM61×2.82mm1.80.2329.36607858203719.63
400mm2800MCM61×2.90mm1.80.2330.16608108753927.55
500mm21000MCM61×3.20mm1.80.2332.86609309954750.91
