TYIR / TYIR 50 OL-AL Cable

Aluminum and Aluminum Steel Conductors Insulated with PVC, Twisted into a Bundle

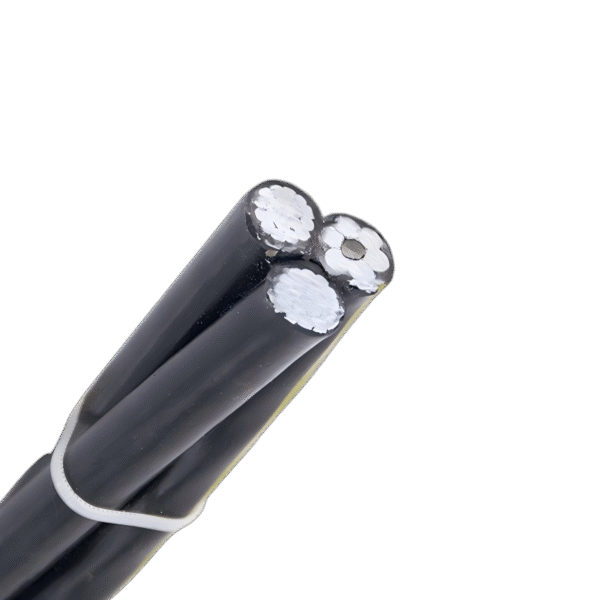

Name: TYIR / TYIR 50 OL-AL Cable

Conductor : Aluminum

Insulation : PVC

Voltage : 0.6/1kV

Number of cores: 2-5 cores

Package : Export wooden drum & iron wooden drum or as customer require

TYIR / TYIR 50 OL-AL Cable Application

For the realization of single-phase or three-phase electrical connections and for the realization of three-phase power supply networks for household subscribers and single-phase, two-phase or three-phase public lighting networks.

TYIR / TYIR 50 OL-AL Cable Standard

ST 125-2006; SR HD 626 S1

CONSTRUCTION :

TYIR / TYIR 50 OL-AL Cable Construction

Phase conductor : Concentrically stranded alluminium conductor (rm)

Neutral conductor:Steel-aluminium carrier
Insualtion :PVC

Insulation color : Black

SPECIFICATION :

TYIR / TYIR 50 OL-AL Cable Specification

Rated voltage U0/U: 0,6/1 kV
Max. operational voltage: 1.2 kV
Test voltage: 4 kV(AC), 5 min.
Min. temperature during cable laying: +5℃
Temperature in long-run operation: -40℃ ÷ +70℃
Highest temperature during short-circuit: +160℃

Technical Parameter

Section	Total Weight	Aluminum Weight	Overall Diameter
(mm2)	(kg/km)	(kg/km)	(mm)
TYIR 10+16	164	75	16.0
TYIR 16+25	225	118	19.0
TYIR 2+10	136	58	14.4
TYIR 2+16	193	92	17.4
TYIR 2+25	258	145	20.0
TYIR 3×16+25	418	210	18.0
TYIR 3×25+16	483	264	21.0
TYIR 3×35	496	304	23.9
TYIR 4×10	727	116	17.4
TYIR 4×16	386	185	21.0
TYIR 50OL-AL 1×16	370	176	21.0
TYIR 50OL-AL 2×16	455	222	22.0
TYIR 50OL-AL 3×16	540	271	22.0
TYIR 50OL-AL 4×16	630	314	27.0
TYIR 50OL-AL 1×25	410	204	23.0
TYIR 50OL-AL 2×25	540	277	24.0
TYIR 50OL-AL 3×25	675	349	25.0
TYIR 50OL-AL 1×35	450	233	24.0
TYIR 50OL-AL 2×35	615	335	25.0
TYIR 50OL-AL 3×35	780	436	27.0
TYIR 50OL-AL 1×50	500	277	25.0
TYIR 50OL-AL 2×50	720	422	27.0
TYIR 50OL-AL 3×50	940	567	30.0
TYIR 50OL-AL 1×70	570	335	27.0
TYIR 50OL-AL 2×70	855	538	28.0
TYIR 50OL-AL 3×70	1140	741	33.0
TYIR 50OL-AL 3×95	1480	960	38.0
TYIR 50OL-AL 3×16+2×16	715	364	17.0
TYIR 50OL-AL 3×16+3×16	805	410	17.0
TYIR 50OL-AL 1×25+1×16	500	250	23.0
TYIR 50OL-AL 1×25+3×16	675	343	23.0
TYIR 50OL-AL 3×25+1×16	760	396	26.0
TYIR 50OL-AL 3×25+2×16	850	442	26.0
TYIR 50OL-AL 3×25+3×16	935	488	26.0
TYIR 50OL-AL 3×25+2×25	935	494	26.0
TYIR 50OL-AL 1×35+1×16	535	279	24.0
TYIR 50OL-AL 1×35+1×25	580	306	24.0
TYIR 50OL-AL 2×35+2×16	700	427	25.0
TYIR 50OL-AL 3×35+1×16	870	482	30.0
TYIR 50OL-AL 1×50+1×16	590	323	25.0
TYIR 50OL-AL 1×50+1×35	670	378	25.0
TYIR 50OL-AL 2×50+1×35	890	523	27.0
TYIR 50OL-AL 3×50+1×16	1030	613	34.0
TYIR 50OL-AL 3×70+1×16	1230	787	38.0
TYIR 50OL-AL 3×35+2×16	955	527	30.0
TYIR 50OL-AL 3×35+1×25	910	509	30.0
TYIR 50OL-AL 3×35+3×25	1175	654	30.0
TYIR 50OL-AL 3×35+3×16	1045	576	30.0
TYIR 50OL-AL 3×35+1×35	950	538	30.0
TYIR 50OL-AL 3×50+2×16	1120	659	34.0
TYIR 50OL-AL 3×70+2×16	1315	833	38.0
TYIR 50OL-AL 3×50+3×16	1205	706	34.0
TYIR 50OL-AL 3×50+1×25	1075	640	34.0
TYIR 50OL-AL 3×50+2×25	1205	713	34.0
TYIR 50OL-AL 3×50+3×25	1335	786	34.0
TYIR 50OL-AL 3×50+1×35	1110	669	34.0
TYIR 50OL-AL 3×50+3×50	1605	1002	34.0
TYIR 50OL-AL 3×70+3×16	1400	880	38.0
TYIR 50OL-AL 3×70+1×25	1270	814	38.0
TYIR 50OL-AL 3×70+2×25	1400	887	173.0
TYIR 50OL-AL 3×70+3×25	1535	960	173.0
TYIR 50OL-AL 3×50+3×35	1440	873	140.0
TYIR 50OL-AL 3×70+1×35	1305	863	173.0
TYIR 50OL-AL 3×70+2×35	1475	945	173.0
TYIR 50OL-AL 3×70+3×35	1640	1047	173.0
TYIR 50OL-AL 3×70+3×50	1800	1176	173.0
TYIR 50OL-AL 3×95+2×16	1565	1052	210.0
TYIR 50OL-AL 3×95+2×25	1740	1106	210.0
TYIR 50OL-AL 3×95+3×25	1870	1179	210.0
TYIR 50OL-AL 3×95+2×35	1810	1161	210.0
TYIR 50OL-AL 3×95+3×35	1975	1263	210.0
TYIR 50OL-AL 3×95+1×50	1700	1103	210.0
