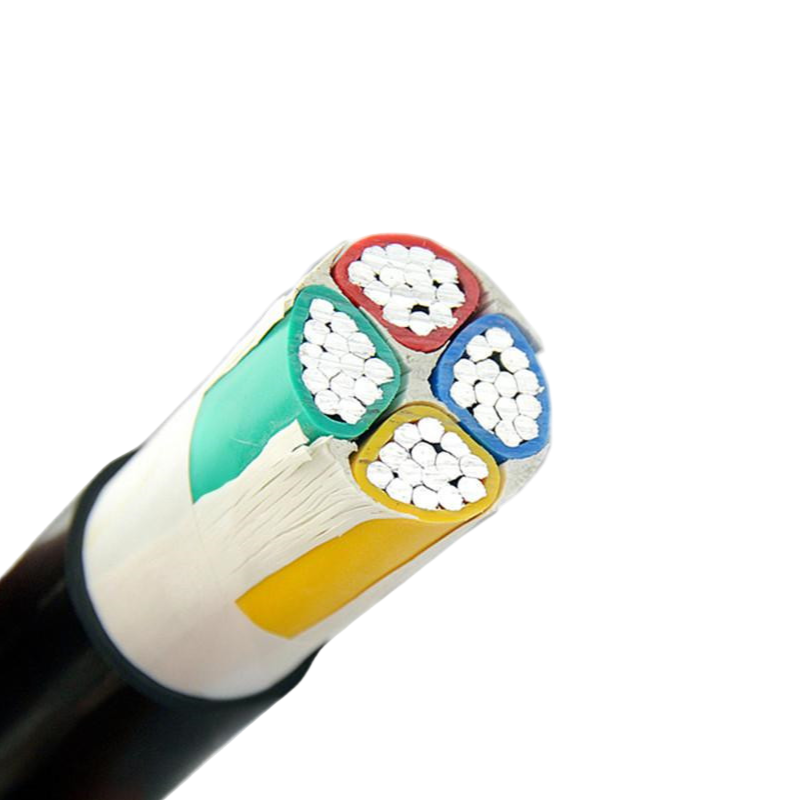

XLPE Insulated 185mm2 4 Cores Aluminum Cable 4x185mm2
Aluminum Cable 4 Core 185mm2 AL/XLPE/PVC 0.6/1kV
Number of Cores: 4
Cross section area: 185mm2
Conductor: Aluminum
Voltage: 0.6/1kV
Package : Export wooden drum & iron wooden drum or as customer require
Cable Application
These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.
STANDARDS :
Cable Standards
IEC 60228; IEC 60502-1
CONSTRUCTION :
Cable Construction
1. Conductor: Aluminum, Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Binder tape: Non-hygroscopic material
4. Filler: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC
.png)
| Cable Type: | AL/XLPE/PVC |
| Operating voltage, U0 / U (V): | 600/1000 |
| Number of cores: | 4 |
| Nominal Area (mm2): | 185 |
| Min Conductor Stranding: | 30 |
| Insulation Thickness (mm): | 1.6 |
| Sheath Thickness (mm): | 2.6 |
| Appr.Cable Overall Diameter (O.D.) (mm): | 52.10 |
| Appr. Cable Weight Per 1000 Meters (kg): | 2925 |
| Resistance DC 20°C Per 1000 Meters (Ω): | 0.164 |
| Allowable Ampacity in Air (Amps): | 315 |
| Allowable Ampacity in Ground (Amps): | 340 |
| Test Voltage: | 3.5kV for 5 minutes |
| Operating temperature (°C) : | -15 to +90 |
| Final short circuit temperature (°C): | 250 |
YOU MAY LIKE
Related products
-
4 Cores Aluminum Cable AL/XLPE/PVC

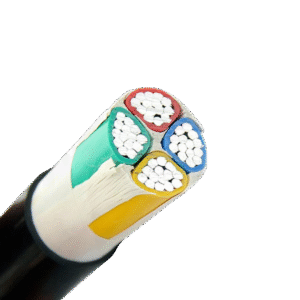

XLPE Insulated 300mm2 4 Cores Aluminum Cable 4x300mm2
-
4 Cores Aluminum Cable AL/XLPE/PVC
XLPE Insulated 150mm2 4 Cores Aluminum Cable 4x150mm2
-
4 Cores Aluminum Cable AL/XLPE/PVC
XLPE Insulated 120mm2 4 Cores Aluminum Cable 4x120mm2
-
4 Cores Aluminum Cable AL/XLPE/PVC
XLPE Insulated 95mm2 4 Cores Aluminum Cable 4x95mm2
-
4 Cores Aluminum Cable AL/XLPE/PVC
XLPE Insulated 70mm2 4 Cores Aluminum Cable 4x70mm2
-
4 Cores Aluminum Cable AL/XLPE/PVC

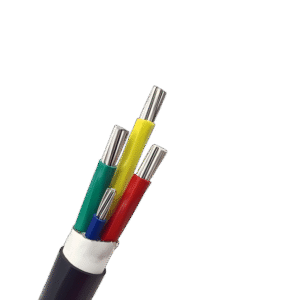

XLPE Insulated 35mm2 4 Cores Aluminum Cable 4x35mm2
-
