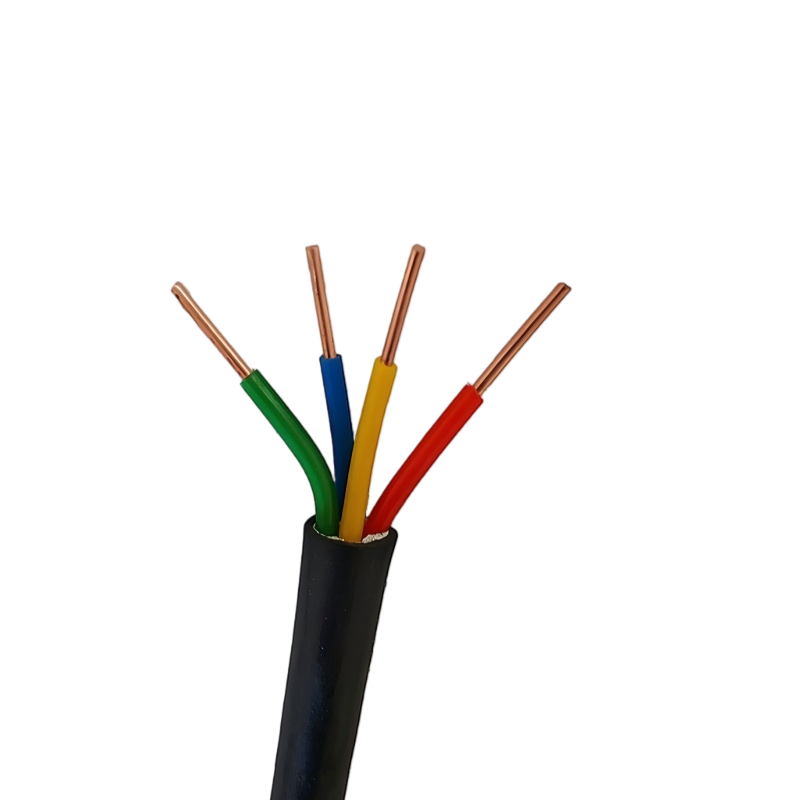

XLPE Insulated 3×4+1×2.5mm2 3+1 Cores Copper Cable
XLPE Insulated, PVC Sheathed Unarmoured 3×4+1×2.5mm2 3+1 Cores Copper Cable, 0.6/1kV
Number of Cores: 3+1
Cross section area: 3×4+1×2.5mm2
Conductor: Copper
Voltage: 0.6/1kV
Package : Export wooden drum & iron wooden drum or as customer require
XLPE 3×4+1×2.5mm2 Copper Cable Application
The structure of 3 cores+1 earth cable wire is designed for application where the earth wires are required according to customer requirements. This 3 core and earth cable/wire ais often referred 3 cores +1 cables XLPE insulated with voltage 0.6/1000v or IEC 60502 3 core and earth cable.
3 core plus earth cable has three conductors which are coded three different colors plus the earth. One of the main applications for this three core and earth lighting cable is when two way lighting is required, it provides the additional conductor between two switches operating the same light fitting.
STANDARDS :
XLPE 3×4+1×2.5mm2 Copper Cable Standard
IEC 60228 ConductorsIEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
CONSTRUCTION :
XLPE 3×4+1×2.5mm2 Cable Construction
1. Conductor: Plain annealed copper, Class 2: stranded conductor2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC
| Cable Type: | CU/XLPE/PVC |
| Operating voltage, U0 / U (V): | 600/1000 |
| Number of cores: | 3+1 |
| Phase Conductor Nominal Area (mm2): | 4 |
| Earth Conductor Nominal Area (mm2): | 2.5 |
| Phase Conductor Stranding: | 1 or 7 |
| Earth Conductor Stranding: | 1 or 7 |
| Phase Conductor Insulation Thickness (mm): | 0.7 |
| Earth Conductor Insulation Thickness (mm): | 0.7 |
| Sheath Thickness (mm): | 1.8 |
| Cable Overall Diameter (O.D.) (mm): | 13.4 |
| Cable Weight Per 1000 Meters (kg): | 260 |
| Phase Conductor Resistance DC 20°C Per 1000 Meters (Ω): | 4.61 |
| Earth Conductor Resistance DC 20°C Per 1000 Meters (Ω): | 7.41 |
| Allowable Ampacity in Air (Amps): | 37 |
| Allowable Ampacity in Ground (Amps): | 51 |
| Test Voltage: | 3.5kV for 5 minutes |
| Operating temperature (°C) : | -15 to +90 |
| Final short circuit temperature (°C): | 250 |
