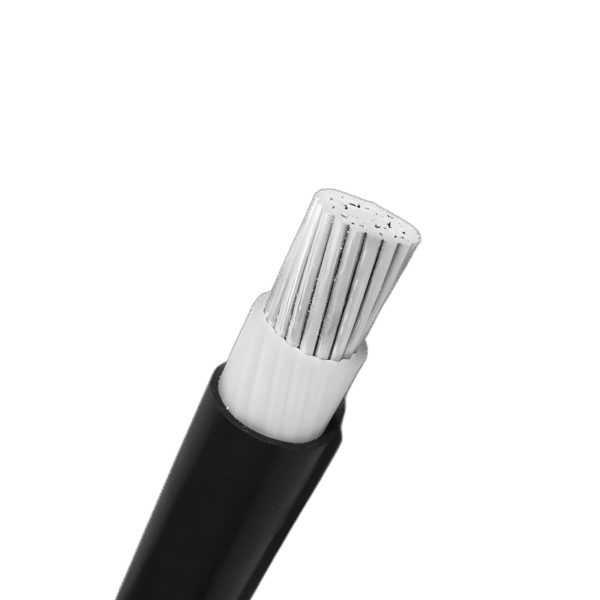

XLPE Insulated Single Core 185mm2 Aluminum Cable 1x185mm2
Aluminum Cable Single Core 185mm2 AL/XLPE/PVC 0.6/1kV
Cross section area: : 185mm2
Number of cores: Single core
Voltage: 0.6/1kV
Package : Export wooden drum & iron wooden drum or as customer require
Cable Application
These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.
Cable Standards
IEC 60228; IEC 60502-1
Cable Construction
Conductor
Aluminum conductor, circular stranded, conforming to the applicable requirements of IEC 60228.
Insulation
XLPE material, conforming to the applicable requirements of IEC 60502-1.
Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC60502-1.
.
| Cable Type: | AL/XLPE/PVC |
| Operating voltage, U0 / U (V): | 600/1000 |
| Number of cores: | Single |
| Nominal Area (mm2): | 185 |
| Min Conductor Stranding: | 30 |
| Insulation Thickness (mm): | 1.6 |
| Sheath Thickness (mm): | 1.6 |
| Appr.Cable Overall Diameter (O.D.) (mm): | 22.6 |
| Appr.Cable Weight Per 1000 Meters (kg): | 730 |
| Resistance DC 20°C Per 1000 Meters (Ω): | 0.164 |
| Allowable Ampacity in Air (Amps): | 350 |
| Allowable Ampacity in Ground (Amps): | 360 |
| Test Voltage: | 3.5kV for 5 minutes |
| Operating temperature (°C) : | -15 to +90 |
| Final short circuit temperature (°C): | 250 |
YOU MAY LIKE
Related products
-
Single Core Aluminum Cable AL/XLPE/PVC
XLPE Insulated Single Core 630mm2 Aluminum Cable 1x630mm2
-
Single Core Aluminum Cable AL/XLPE/PVC
XLPE Insulated Single Core 500mm2 Aluminum Cable 1x500mm2
-
Single Core Aluminum Cable AL/XLPE/PVC
XLPE Insulated Single Core 300mm2 Aluminum Cable 1x300mm2
-
Single Core Aluminum Cable AL/XLPE/PVC
XLPE Insulated Single Core 240mm2 Aluminum Cable 1x240mm2
-
Single Core Aluminum Cable AL/XLPE/PVC

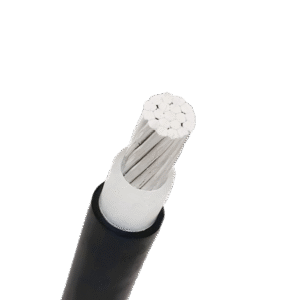

XLPE Insulated Single Core 95mm2 Aluminum Cable 1x95mm2
-
Single Core Aluminum Cable AL/XLPE/PVC
XLPE Insulated Single Core 50mm2 Aluminum Cable 1x50mm2
-
Single Core Aluminum Cable AL/XLPE/PVC

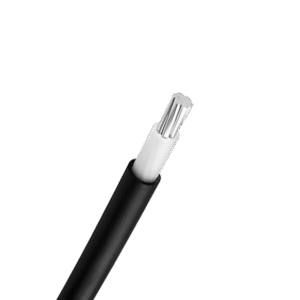

XLPE Insulated Single Core 35mm2 Aluminum Cable 1x35mm2
-
