YJLV22 Cable

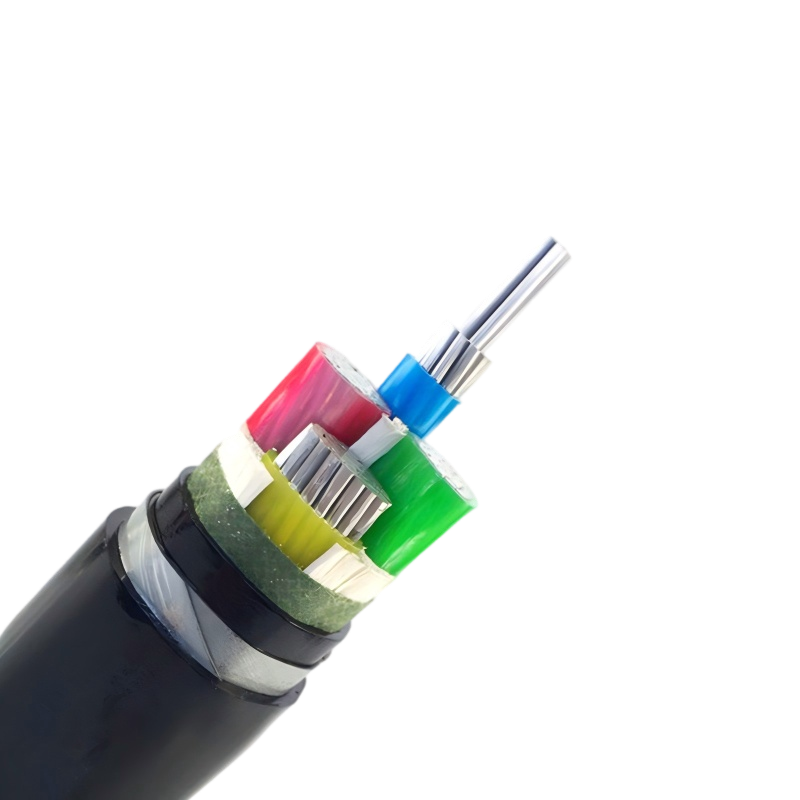

YJLV22 Cable AL-XLPE-PVC-STA-PVC Aluminum Conductor XLPE Insulated Steel Tape Armoured Cable
Conductor: Aluminum
Insulation: XLPE
Armour: Double galvanized steel tape
Sheath: Polyvinylchloride compound PVC 5V-90
Voltage : 0.6/1kV
Package : Export wooden drum & iron wooden drum or as customer require
YJLV22 Cable Application
yjlv22 cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.
YJLV22 Cable Standards:
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
CONSTRUCTION :
YJLV22 Cable Construction
Insulation:Cross-linked polyethylene XLPE
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Inner sheath: Polyvinyl chloride PVC
Armour: Double galvanized steel tape
Outer sheath: Polyvinyl chloride PVC
TECHNICAL DATA :
Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV
Temperature Rating:
Flexed: 5°C to +90°C
Fixed: -35°C to +90°C
Maximum Short Circuit Temperature:
+250°C (max 5 seconds)
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter
| 0.6/1kV-1 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| weight | ||||||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 1X10 | 0.7 | 0.2 | 1.8 | 11.8 | 206 | 3.08 | 58 | 47 |
| 1X16 | 0.7 | 0.2 | 1.8 | 12.9 | 247 | 1.91 | 75 | 62 |
| 1X25 | 0.9 | 0.2 | 1.8 | 14.6 | 310 | 1.2 | 100 | 78 |
| 1X35 | 0.9 | 0.2 | 1.8 | 15.2 | 352 | 0.868 | 120 | 94 |
| 1X50 | 1 | 0.2 | 1.8 | 16.7 | 423 | 0.641 | 145 | 110 |
| 1X70 | 1.1 | 0.2 | 1.8 | 18.5 | 523 | 0.443 | 190 | 135 |
| 1X95 | 1.1 | 0.2 | 1.8 | 20.1 | 629 | 0.32 | 235 | 160 |
| 1X120 | 1.2 | 0.2 | 1.8 | 21.7 | 738 | 0.253 | 270 | 185 |
| 1X150 | 1.4 | 0.2 | 1.8 | 23.7 | 877 | 0.206 | 310 | 205 |
| 1X185 | 1.6 | 0.2 | 1.8 | 25.7 | 1031 | 0.164 | 355 | 235 |
| 1X240 | 1.7 | 0.2 | 1.8 | 28 | 1254 | 0.125 | – | – |
| 1X300 | 1.8 | 0.2 | 1.9 | 31 | 1495 | 0.1 | – | – |
| 1X400 | 2 | 0.2 | 2 | 35 | 1904 | 0.0778 | – | – |
| 0.6/1kV-2 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| weight | ||||||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 2X2.5 | 0.7 | 0.2 | 1.8 | 13.4 | 236 | 12.1 | – | 23 |
| 2X4 | 0.7 | 0.2 | 1.8 | 14.3 | 269 | 7.41 | – | 30 |
| 2X6 | 0.7 | 0.2 | 1.8 | 15.3 | 307 | 4.61 | – | 38 |
| 2X10 | 0.7 | 0.2 | 1.8 | 17.8 | 397 | 3.08 | 50 | 47 |
| 2X16 | 0.7 | 0.2 | 1.8 | 20 | 493 | 1.91 | 64 | 62 |
| 2X25 | 0.9 | 0.2 | 1.8 | 23.3 | 643 | 1.2 | 86 | 78 |
| 2X35 | 0.9 | 0.2 | 1.8 | 24.6 | 738 | 0.868 | 105 | 94 |
| 2X50 | 1 | 0.2 | 1.8 | 27.2 | 896 | 0.641 | 125 | 110 |
| 2X70 | 1.1 | 0.2 | 1.9 | 31.4 | 1164 | 0.443 | 165 | 135 |
| 2X95 | 1.1 | 0.2 | 2 | 35.5 | 1480 | 0.32 | 200 | 160 |
| 2X120 | 1.2 | 0.5 | 2.2 | 40.2 | 2164 | 0.253 | 235 | 185 |
| 2X150 | 1.4 | 0.5 | 2.3 | 44.2 | 2572 | 0.206 | 270 | 205 |
| 2X185 | 1.6 | 0.5 | 2.5 | 48.9 | 3089 | 0.164 | 310 | 235 |
| 0.6/1kV-3 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| weight | ||||||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 3X2.5 | 0.7 | 0.2 | 1.8 | 13.9 | 257 | 12.1 | – | 23 |
| 3X4 | 0.7 | 0.2 | 1.8 | 14.8 | 296 | 7.41 | – | 30 |
| 3X6 | 0.7 | 0.2 | 1.8 | 16 | 342 | 4.61 | – | 38 |
| 3X10 | 0.7 | 0.2 | 1.8 | 18.6 | 447 | 3.08 | 50 | 47 |
| 3X16 | 0.9 | 0.2 | 1.8 | 21 | 563 | 1.91 | 64 | 62 |
| 3X25 | 0.9 | 0.2 | 1.8 | 24.6 | 744 | 1.2 | 86 | 78 |
| 3X35 | 0.9 | 0.2 | 1.8 | 26 | 869 | 0.868 | 105 | 94 |
| 3X50 | 1 | 0.2 | 1.9 | 28.9 | 1074 | 0.641 | 125 | 110 |
| 3X70 | 1.1 | 0.2 | 2 | 33.9 | 1443 | 0.443 | 165 | 135 |
| 3X95 | 1.1 | 0.5 | 2.2 | 39 | 2183 | 0.32 | 200 | 160 |
| 3X120 | 1.2 | 0.5 | 2.3 | 42.7 | 2593 | 0.253 | 235 | 185 |
| 3X150 | 1.4 | 0.5 | 2.4 | 47.5 | 3155 | 0.206 | 270 | 205 |
| 3X185 | 1.6 | 0.5 | 2.6 | 52.1 | 3743 | 0.164 | 310 | 235 |
| 3X240 | 1.7 | 0.5 | 2.8 | 58.3 | 4641 | 0.125 | 365 | 260 |
| 3X300 | 1.8 | 0.5 | 2.9 | 63.6 | 5508 | 0.1 | 420 | 290 |
| 0.6/1kV-4 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| weight | ||||||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 4X2.5 | 0.7 | 0.2 | 1.8 | 14.7 | 288 | 12.1 | – | 23 |
| 4X4 | 0.7 | 0.2 | 1.8 | 15.8 | 334 | 7.41 | – | 30 |
| 4X6 | 0.7 | 0.2 | 1.8 | 17 | 384 | 4.61 | – | 38 |
| 4X10 | 0.7 | 0.2 | 1.8 | 20 | 509 | 3.08 | 50 | 47 |
| 4X16 | 0.9 | 0.2 | 1.8 | 22.7 | 649 | 1.91 | 64 | 62 |
| 4X25 | 0.9 | 0.2 | 1.8 | 26.7 | 880 | 1.2 | 86 | 78 |
| 4X35 | 0.9 | 0.2 | 1.8 | 28.3 | 1040 | 0.868 | 105 | 94 |
| 4X50 | 1 | 0.2 | 2.1 | 32 | 1365 | 0.641 | 125 | 110 |
| 4X70 | 1.1 | 0.5 | 2.1 | 38.5 | 2138 | 0.443 | 165 | 135 |
| 4X95 | 1.1 | 0.5 | 2.3 | 42.9 | 2638 | 0.32 | 200 | 160 |
| 4X120 | 1.2 | 0.5 | 2.4 | 47.4 | 3202 | 0.253 | 235 | 185 |
| 4X150 | 1.4 | 0.5 | 2.6 | 52.3 | 3847 | 0.206 | 270 | 205 |
| 4X185 | 1.6 | 0.5 | 2.7 | 57.5 | 4585 | 0.164 | 310 | 235 |
| 4X240 | 1.7 | 0.5 | 3 | 64.3 | 5709 | 0.125 | 365 | 260 |
| 4X300 | 1.8 | 0.5 | 3.1 | 70.3 | 6805 | 0.1 | 420 | 290 |
| 0.6/1kV-5 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| weight | ||||||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 5X2.5 | 0.7 | 0.2 | 1.8 | 15.6 | 321 | 12.1 | – | 23 |
| 5X4 | 0.7 | 0.2 | 1.8 | 16.8 | 376 | 7.41 | – | 30 |
| 5X6 | 0.7 | 0.2 | 1.8 | 18.2 | 443 | 4.61 | – | 38 |
| 5X10 | 0.7 | 0.2 | 1.8 | 21.6 | 592 | 3.08 | 50 | 47 |
| 5X16 | 0.7 | 0.2 | 1.8 | 24.6 | 763 | 1.91 | 64 | 62 |
| 5X25 | 0.9 | 0.2 | 1.8 | 29 | 1029 | 1.2 | 86 | 78 |
| 5X35 | 0.9 | 0.2 | 1.9 | 31 | 1236 | 0.868 | 105 | 94 |
| 5X50 | 1 | 0.2 | 2.1 | 35.7 | 1616 | 0.641 | 125 | 110 |
| 5X70 | 1.1 | 0.5 | 2.3 | 42.4 | 2528 | 0.443 | 165 | 135 |
| 5X95 | 1.1 | 0.5 | 2.4 | 47.2 | 3172 | 0.32 | 200 | 160 |
| 5X120 | 1.2 | 0.5 | 2.6 | 51.8 | 3801 | 0.253 | 235 | 185 |
| 5X150 | 1.4 | 0.5 | 2.7 | 57.6 | 4604 | 0.206 | 270 | 205 |
| 5X185 | 1.6 | 0.5 | 2.9 | 63.8 | 5574 | 0.164 | 310 | 235 |
| 5X240 | 1.7 | 0.5 | 3.2 | 70.7 | 6859 | 0.125 | 365 | 260 |
| 5X300 | 1.8 | 0.5 | 3.4 | 78 | 8305 | 0.1 | 420 | 290 |
| 0.6/1kV-3+1core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| weight | ||||||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 3X4+1X2.5 | 0.7/0.7 | 0.2 | 1.8 | 15.5 | 318 | 7.41/12.1 | – | 30 |
| 3X6+1X4 | 0.7/0.7 | 0.2 | 1.8 | 16.8 | 371 | 4.61/7.41 | – | 38 |
| 3X10+1X6 | 0.7/0.7 | 0.2 | 1.8 | 19.3 | 478 | 3.08/4.61 | 50 | 47 |
| 3X16+1X10 | 0.7/0.7 | 0.2 | 1.8 | 22.1 | 615 | 1.91/3.08 | 64 | 62 |
| 3X25+1X16 | 0.9/0.7 | 0.2 | 1.8 | 25.1 | 794 | 1.2/1.91 | 86 | 78 |
| 3X35+1X16 | 0.9/0.7 | 0.2 | 1.8 | 26.8 | 926 | 0.868/1.91 | 105 | 94 |
| 3X50+1X25 | 1/0.9 | 0.2 | 1.9 | 30.2 | 1175 | 0.641/1.2 | 125 | 110 |
| 3X70+1X35 | 1.1/0.9 | 0.2 | 2 | 35.1 | 1570 | 0.443/0.868 | 165 | 135 |
| 3X95+1X50 | 1.1/1.0 | 0.5 | 2.2 | 40.4 | 2359 | 0.32/0.641 | 200 | 160 |
| 3X120+1X70 | 1.2/1.1 | 0.5 | 2.3 | 45 | 2886 | 0.253/0.443 | 235 | 185 |
| 3X150+1X70 | 1.4/1.1 | 0.5 | 2.5 | 49.1 | 3396 | 0.206/0.443 | 270 | 205 |
| 3X185+1X95 | 1.6/1.1 | 0.5 | 2.8 | 54.3 | 4070 | 0.164/0.32 | 310 | 235 |
| 3X240+1X120 | 1.7/1.2 | 0.5 | 2.8 | 59.1 | 4855 | 0.125/0.253 | 365 | 260 |
| 3X300+1X150 | 1.8/1.4 | 0.5 | 3 | 66 | 6028 | 0.1/0.206 | 420 | 290 |
| 0.6/1kV-4+1core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| weight | ||||||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 4X4+1X2.5 | 0.7/0.7 | 0.2 | 1.8 | 16.3 | 365 | 7.41/12.1 | – | 30 |
| 4X6+1X4 | 0.7/0.7 | 0.2 | 1.8 | 17.7 | 429 | 4.61/7.41 | – | 38 |
| 4X10+1X6 | 0.7/0.7 | 0.2 | 1.8 | 20.3 | 561 | 3.08/4.61 | 50 | 47 |
| 4X16+1X10 | 0.7/0.7 | 0.2 | 1.8 | 24 | 728 | 1.91/3.08 | 64 | 62 |
| 4X25+1X16 | 0.9/0.7 | 0.2 | 1.8 | 28.1 | 974 | 1.2/1.91 | 86 | 78 |
| 4X35+1X16 | 0.9/0.7 | 0.2 | 1.9 | 29.6 | 1134 | 0.868/1.91 | 105 | 94 |
| 4X50+1X25 | 1/0.9 | 0.2 | 2 | 34 | 1505 | 0.641/1.2 | 125 | 110 |
| 4X70+1X35 | 1.1/0.9 | 0.5 | 2.2 | 40.3 | 2351 | 0.443/0.868 | 165 | 135 |
| 4X95+1X50 | 1.1/1.0 | 0.5 | 2.3 | 44.8 | 2907 | 0.32/0.641 | 200 | 160 |
| 4X120+1X70 | 1.2/1.1 | 0.5 | 2.6 | 50.2 | 3588 | 0.253/0.443 | 235 | 185 |
| 4X150+1X70 | 1.4/1.1 | 0.5 | 2.8 | 54.6 | 4215 | 0.206/0.443 | 270 | 205 |
| 4X185+1X95 | 1.6/1.1 | 0.5 | 2.9 | 60.5 | 5133 | 0.164/0.32 | 310 | 235 |
| 4X240+1X120 | 1.7/1.2 | 0.5 | 3 | 67.1 | 6289 | 0.125/0.253 | 365 | 260 |
| 4X300+1X150 | 1.8/1.4 | 0.5 | 3.2 | 73.7 | 7544 | 0.1/0.206 | 420 | 290 |
| 0.6/1kV-3+2 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
| Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
| weight | ||||||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 3X4+2X2.5 | 0.7/0.7 | 0.2 | 1.8 | 16.6 | 354 | 7.41/12.1 | – | 30 |
| 3X6+2X4 | 0.7/0.7 | 0.2 | 1.8 | 18 | 416 | 4.61/7.41 | – | 38 |
| 3X10+2X6 | 0.7/0.7 | 0.2 | 1.8 | 20.9 | 531 | 3.08/4.61 | 50 | 47 |
| 3X16+2X10 | 0.7/0.7 | 0.2 | 1.8 | 24 | 694 | 1.91/3.08 | 64 | 62 |
| 3X25+2X16 | 0.9/0.7 | 0.2 | 1.8 | 28.1 | 920 | 1.2/1.91 | 86 | 78 |
| 3X35+2X16 | 0.9/0.7 | 0.2 | 1.9 | 29.6 | 1034 | 0.868/1.91 | 105 | 94 |
| 3X50+2X25 | 1/0.9 | 0.2 | 2 | 34 | 1400 | 0.641/1.2 | 125 | 110 |
| 3X70+2X35 | 1.1/0.9 | 0.5 | 2.2 | 40.3 | 2153 | 0.443/0.868 | 165 | 135 |
| 3X95+2X50 | 1.1/1.0 | 0.5 | 2.3 | 44.8 | 2658 | 0.32/0.641 | 200 | 160 |
| 3X120+2X70 | 1.2/1.1 | 0.5 | 2.5 | 50.2 | 3329 | 0.253/0.443 | 235 | 185 |
| 3X150+2X70 | 1.4/1.1 | 0.5 | 2.6 | 54.6 | 3790 | 0.206/0.443 | 270 | 205 |
| 3X185+2X95 | 1.6/1.1 | 0.5 | 2.8 | 60.5 | 4575 | 0.164/0.32 | 310 | 235 |
| 3X240+2X120 | 1.7/1.2 | 0.5 | 3 | 67.1 | 5564 | 0.125/0.253 | 365 | 260 |
| 3X300+2X150 | 1.8/1.4 | 0.5 | 3.2 | 73.7 | 6801 | 0.1/0.206 | 420 | 290 |
